ST 723 - Husqvarna 23" Snow Blower (1996-12) Pulley Assembly Parts Diagram

23" Snow Blower

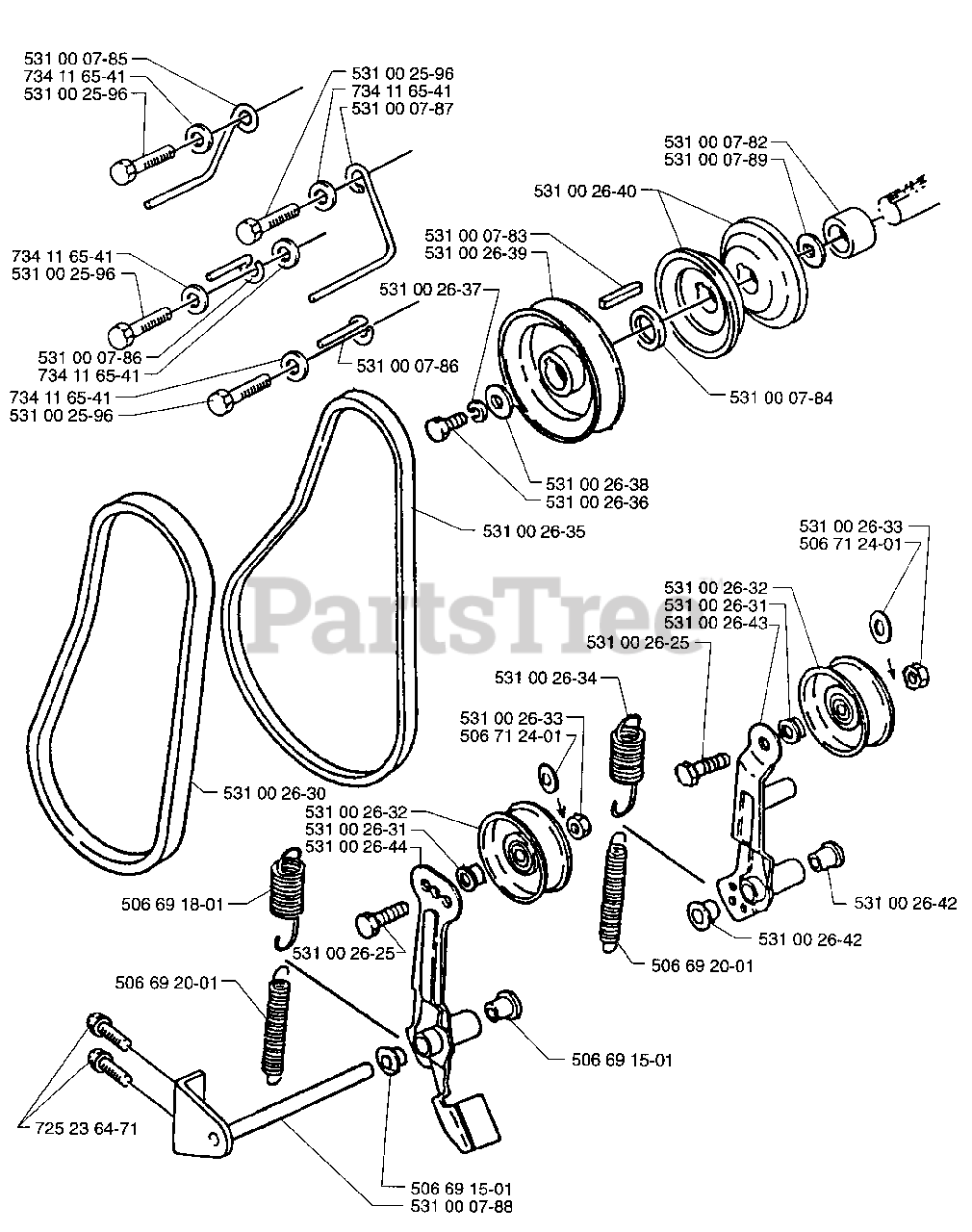

Pulley Assembly Parts Diagram

  • Title

531000785

Husqvarna 531000785

BELT GUIDE LH
(Superseded to 532155452)

$6.49

$

Usually ships in 3-10 days

0

734116541

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

531002596

Husqvarna 531002596

BOLT - 5/16-24X0.75"

$

$

Not available

734116541

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

531002596

Husqvarna 531002596

BOLT - 5/16-24X0.75"

$

$

Not available

531000786

Husqvarna 531000786

BELT GUIDE

$

$

Not available

734116541

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

734116541

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

531002596

Husqvarna 531002596

BOLT - 5/16-24X0.75"

$

$

Not available

531002596

Husqvarna 531002596

BOLT - 5/16-24X0.75"

$

$

Not available

734116541

Husqvarna 734116541

WASHER - 25X8.5X2.3

$5.99

$

Usually ships in 3-10 days

0

531000787

Husqvarna 531000787

BELT GUIDE RH
(Superseded to 532155452)

$6.49

$

Usually ships in 3-10 days

0

531000783

Husqvarna 531000783

KEY SQ

$

$

Not available

531002639

Husqvarna 531002639

PULLEY - ENGINE, BLOWER

$

$

Not available

531002637

Husqvarna 531002637

WASHER SPLIT LOCK - 3/8" HEAVY

$

$

Not available

531000786

Husqvarna 531000786

BELT GUIDE

$

$

Not available

531002635

Husqvarna 531002635

V-BELT - TRACTION

$

$

Not available

531002634

Husqvarna 531002634

RP SPRING EXT-TRACTION ENGAGE

$

$

Not available

531002633

Husqvarna 531002633

NUT JAM LOCK CENTR - 5/16-18

$

$

Not available

506712401

Husqvarna 506712401

WASHER - 20X8.5X2.0

$

$

Not available

531002630

Husqvarna 531002630

V-BELT - BLOWER

$

$

Not available

531002632

Husqvarna 531002632

PULLEY - IDLER

$

$

Not available

531002631

Husqvarna 531002631

SPACER - IDLER PULLEY

$

$

Not available

531002644

Husqvarna 531002644

BLOWER IDLER LEVER ASSY

$

$

Not available

506691801

Husqvarna 506691801

SPRING EXTN - BLOWER ENGAGE

$

$

Not available

531002625

Husqvarna 531002625

BOLT CARRIAGE - 5/16-18X1.25

$

$

Not available

506692001

Husqvarna 506692001

SPRING EXT - RETURN

$

$

Not available

725236471

Husqvarna 725236471

BOLT FLANGE - M6X12
(Superseded to 725236451)

$3.49

$

Usually ships in 3-10 days

0

531000788

Husqvarna 531000788

CLUTCH PIVOT SHAFT ASSY

$

$

Not available

506691501

Husqvarna 506691501

BUSHING

$

$

Not available

506691501

Husqvarna 506691501

BUSHING

$

$

Not available

506692001

Husqvarna 506692001

SPRING EXT - RETURN

$

$

Not available

531002642

Husqvarna 531002642

BUSHING FLANGED - PLASTIC

$

$

Not available

531002625

Husqvarna 531002625

BOLT CARRIAGE - 5/16-18X1.25

$

$

Not available

531002642

Husqvarna 531002642

BUSHING FLANGED - PLASTIC

$

$

Not available

531002643

Husqvarna 531002643

TRACTION IDLER LEVER ASSY

$

$

Not available

531002631

Husqvarna 531002631

SPACER - IDLER PULLEY

$

$

Not available

531002632

Husqvarna 531002632

PULLEY - IDLER

$

$

Not available

506712401

Husqvarna 506712401

WASHER - 20X8.5X2.0

$

$

Not available

531002633

Husqvarna 531002633

NUT JAM LOCK CENTR - 5/16-18

$

$

Not available

531002636

Husqvarna 531002636

BOLT - 3/8-24X1.0"

$

$

Not available

531002638

Husqvarna 531002638

WASHER - ENG BOLT

$

$

Not available

531000784

Husqvarna 531000784

WASHER - M18

$

$

Not available

531000782

Husqvarna 531000782

SPACER REAR - ENGINE PULLEY

$

$

Not available

531000789

Husqvarna 531000789

WASHER - 1.25X0.76X0.06"

$

$

Not available

531002640

Husqvarna 531002640

PULLEY HALF, ENGINE TRACTION

$

$

Not available
