ST 723 - Husqvarna 23" Snow Blower (1996-12) Clutch Lever Assembly Parts Diagram

23" Snow Blower

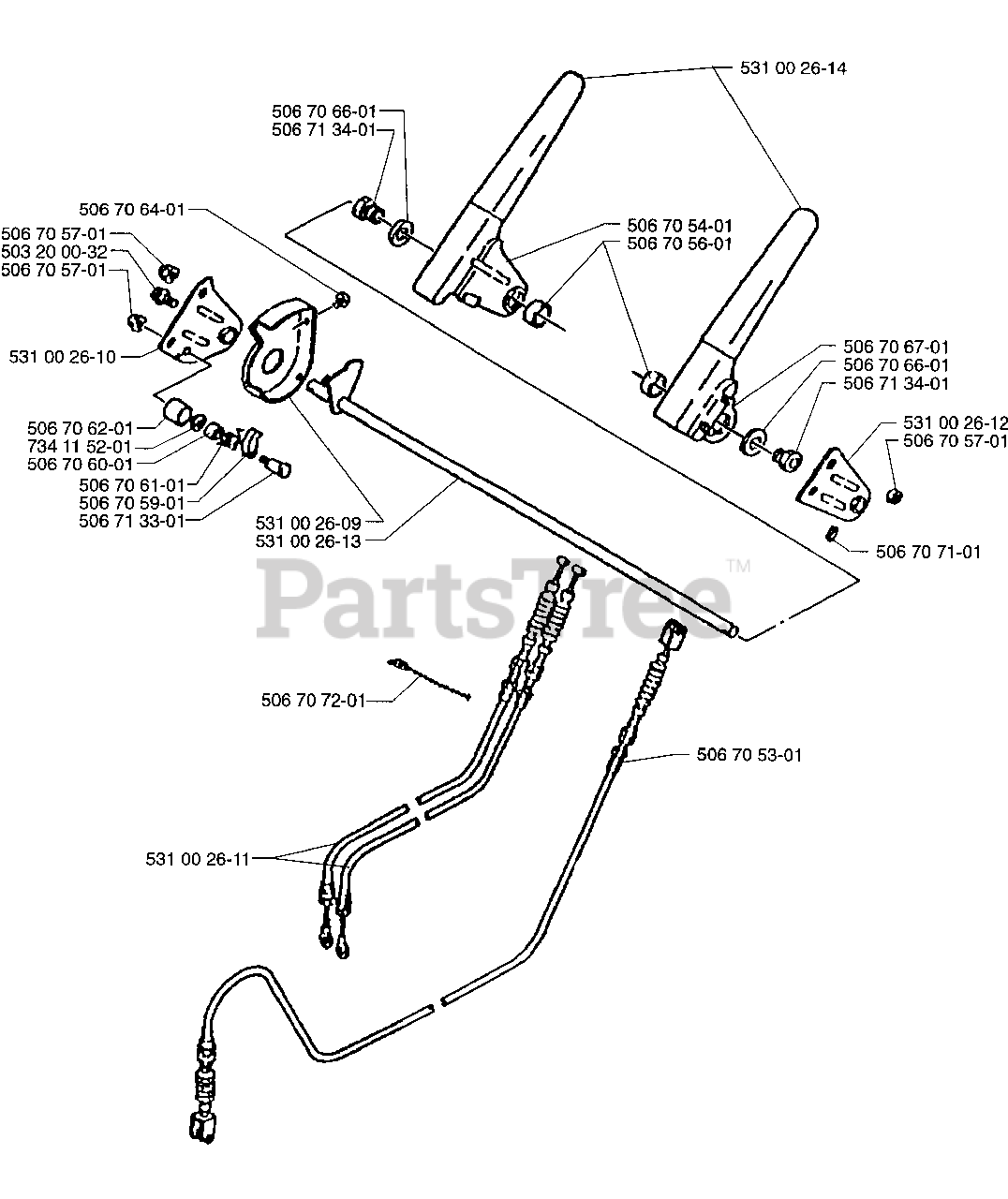

Clutch Lever Assembly Parts Diagram

  • Title
506706401

Husqvarna 506706401

SCREW SELF TAP - M4X8

$

$

Not available

506705701

Husqvarna 506705701

NUT FLANGE - CAP/ACORN, M6

$

$

Not available

503200032

Husqvarna 503200032

BOLT FLANGE - M8X16

$

$

Not available

506705701

Husqvarna 506705701

NUT FLANGE - CAP/ACORN, M6

$

$

Not available

531002610

Husqvarna 531002610

CLUTCH LEVER SUPP PLATE RH
(Superseded to 506705501)

$

$

Not available

506706201

Husqvarna 506706201

SLEEVE - RACHET SPRING

$

$

Not available

734115201

Husqvarna 734115201

WASHER - M6

$4.99

$

Usually ships in 3-10 days

0

506706001

Husqvarna 506706001

SPACER - RACHET

$

$

Not available

506706101

Husqvarna 506706101

SPRING TORSION - RACHET

$

$

Not available

506705901

$

$

Not available

506713301

Husqvarna 506713301

BOLT - RATCHET

$

$

Not available

531002611

Husqvarna 531002611

CABLE CLUTCH - TRACTION/BLOWER
(Superseded to 532160791)

$

$

Not available

506705301

Husqvarna 506705301

CABLE - REMOTE DEFLECTOR

$

$

Not available

506707101

Husqvarna 506707101

ROLL PIN - M4X16

$

$

Not available

506706601

Husqvarna 506706601

WASHER - CONICAL SPRING, M12

$

$

Not available

506713401

Husqvarna 506713401

NUT SHOULDER - CONTROL SYSTEM

$

$

Not available

531002612

Husqvarna 531002612

CLUTCH LEVER SUPP ARM ASSY LH
(Superseded to 506706801)

$

$

Not available

506705701

Husqvarna 506705701

NUT FLANGE - CAP/ACORN, M6

$

$

Not available

506705401

Husqvarna 506705401

BLOWER CLUTCH LEVER RH ASSY

$

$

Not available

506705601

Husqvarna 506705601

COLLAR - CLUTCH LEVER, RUBBER

$

$

Not available

531002614

Husqvarna 531002614

SLEEVE - CLUTCH LEVER, ORANGE

$

$

Not available

506706701

Husqvarna 506706701

TRACTION CLUTCH LEVER LH ASSY

$

$

Not available

531002609

Husqvarna 531002609

CAM LOCK COVER
(Superseded to 506706301)

$

$

Not available

531002613

$

$

Not available

506706601

Husqvarna 506706601

WASHER - CONICAL SPRING, M12

$

$

Not available

506713401

Husqvarna 506713401

NUT SHOULDER - CONTROL SYSTEM

$

$

Not available

506707201

Husqvarna 506707201

PLASTIC TIE, RE-USABLE
(Superseded to 539976966)

$4.99

$

Usually ships in 3-10 days

0
