ST 720 R (41BJST-B034) - Ryobi Trimmer Plus Snow Thrower Attachment Snowthrower Add-On Parts Diagram

Trimmer Plus Snow Thrower Attachment

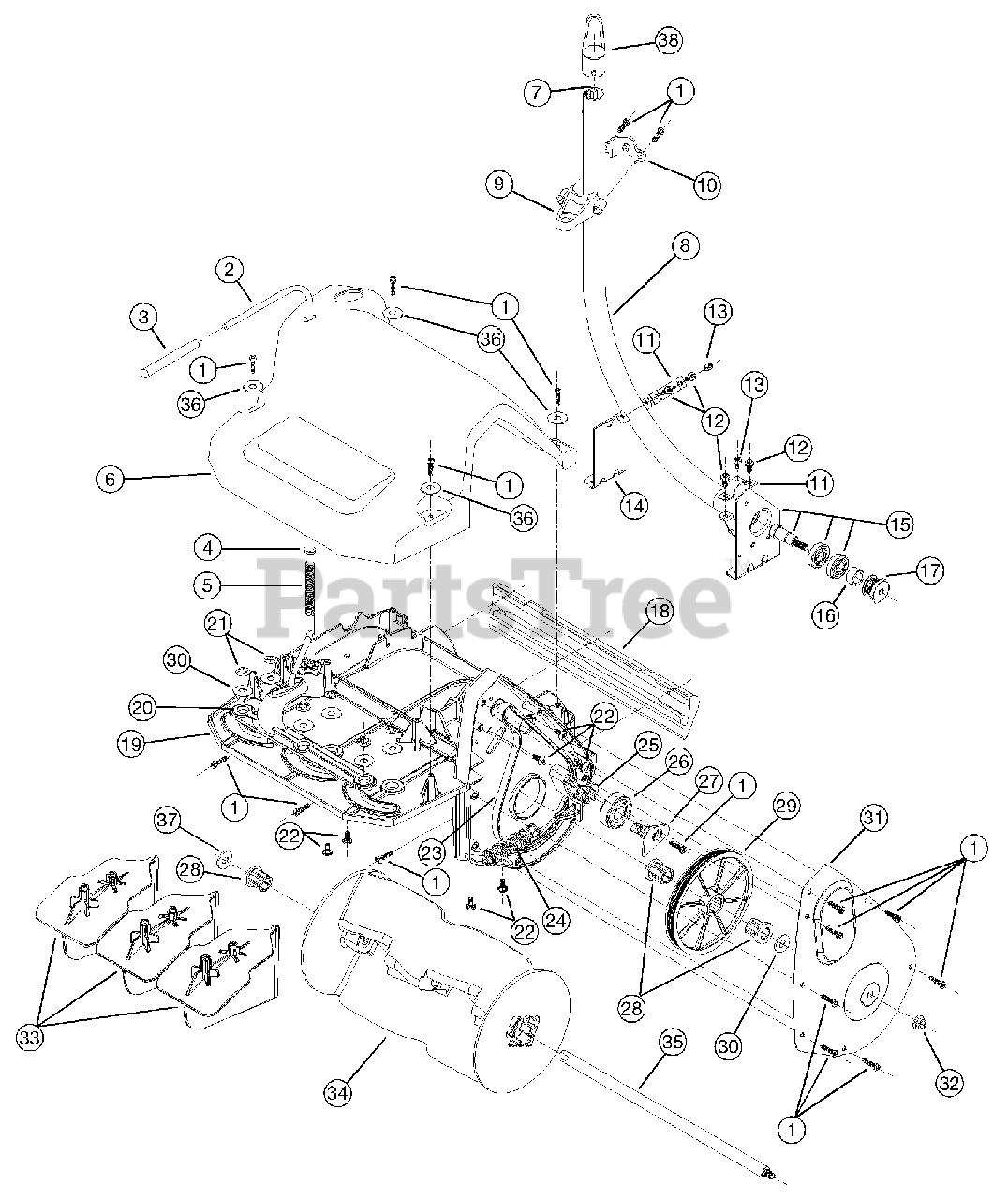

Snowthrower Add-On Parts Diagram

  • Title
1

$4.49

$

In Stock, Qty 20+

0

2

MTD 791-00000

Vane Control Handle

$

$

Not available

3

$

$

Not available

4

MTD 753-04079

Washer
(Superseded to 736-0142)

$4.99

$

In Stock, Qty 20+

0

5

MTD 791-00002

Spring

$

$

Not available

6

MTD 791-00003

Cover
(Superseded to 753-04447)

$

$

Not available

7

MTD 791-181852

Flex Shaft

$59.99

$

In Stock, Qty 11

0

8

MTD 791-181352

Drive Shaft Assembly

$

$

Not available

9

MTD 791-00004

Clamp, LH

$

$

Not available

10

MTD 791-00005

Clamp, RH

$

$

Not available

11

$

$

Not available

12

$

$

Not available

13

MTD 791-181607

Screw, Anti-rotation

$

$

Not available

14

MTD 791-00006

Drive Housing Bracket, RH

$

$

Not available

15

MTD 791-00007

Drive Housing Bracket, LH

$

$

Not available

16

MTD 791-00008

Spacer

$

$

Not available

17

MTD 791-00009

Drive Pulley

$

$

Not available

18

MTD 791-00010

Scraper

$45.99

$

Usually ships in 3-6 days

0

19

MTD 791-00011

Snow Thrower Housing
(Superseded to 753-04446)

$

$

Not available

20

MTD 791-00012

Vane Control

$

$

Not available

21

MTD 791-00013

Pushnut

$

$

Not available

22

$

$

Not available

23

MTD 791-00014

Drive Belt

$36.99

$

Usually ships in 3-6 days

0

24

MTD 791-00015

Spring

$

$

Not available

25

MTD 791-00016

Idler Arm

$

$

Not available

26

MTD 753-04081

Ball Bearing
(Superseded to 941-0600)

$25.99

$

In Stock, Qty 20+

0

27

MTD 791-00017

Keeper

$

$

Not available

28

MTD 753-04082

Flange Bearing
(Superseded to 741-0503)

$3.49

$

Usually ships in 3-6 days

0

29

MTD 791-00018

Driven Pulley

$

$

Not available

30

MTD 753-04080

Washer
(Superseded to 936-0159)

$

$

Not available

31

MTD 791-00019

Belt Case Cover

$

$

Currently unavailable

32

MTD 753-04056

Flange Lock Nut
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

33

$

$

Not available

34

$

$

Not available

35

MTD 791-00022

Rotor Shaft

$

$

Not available

36

$4.99

$

In Stock, Qty 5

0

37

$7.99

$

Usually ships in 3-6 days

0

38

MTD 791-612605

Hanger Accessory
(Superseded to 731-08926)

$2.99

$

In Stock, Qty 20+

0
