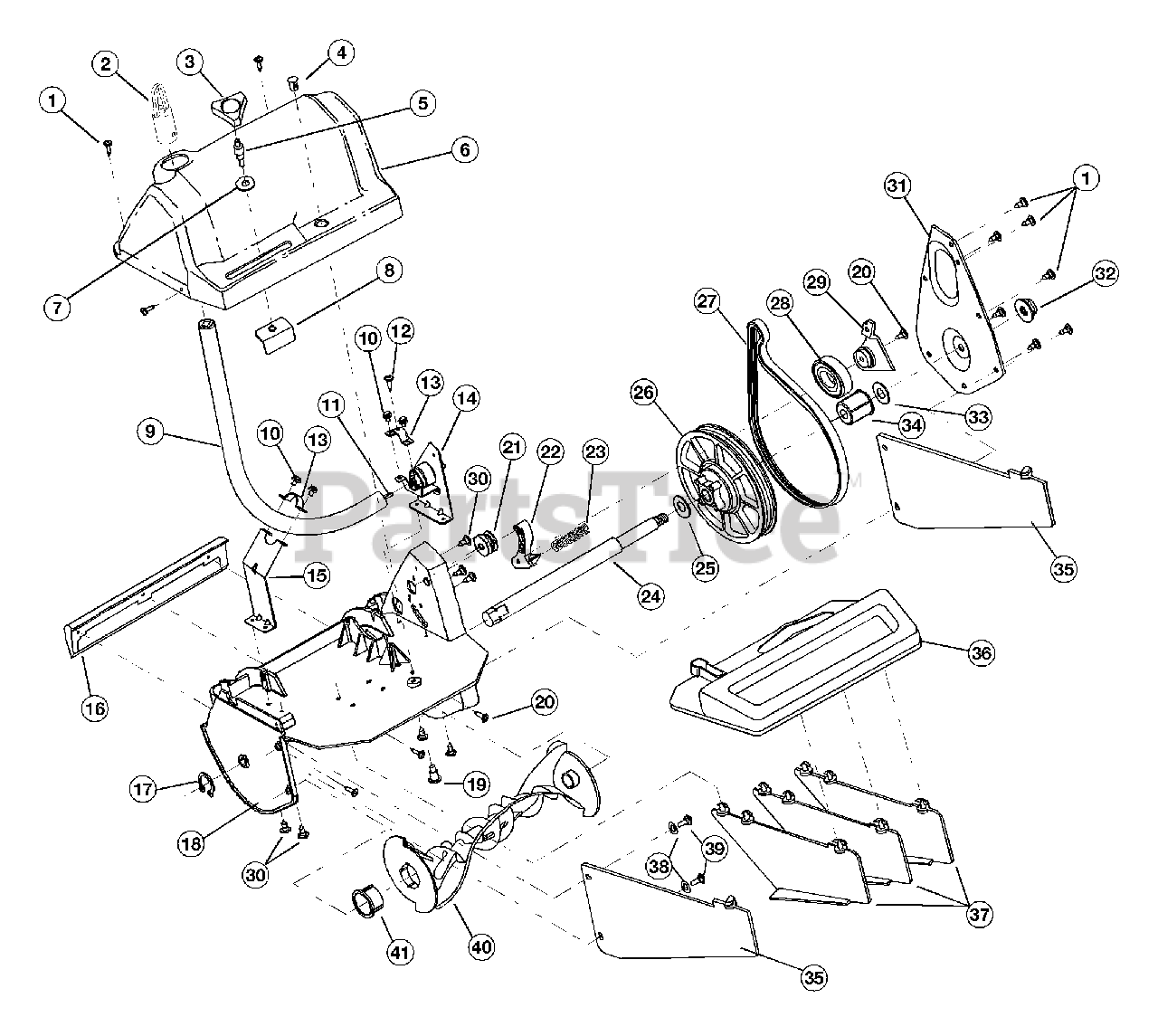

ST 720 R (41AJST-B034) - Ryobi Trimmer Plus Snow Thrower Attachment Replacement Parts Parts Diagram

Trimmer Plus Snow Thrower Attachment

Replacement Parts Parts Diagram

  • Title

1

MTD 791-181345

Screw

$4.49

$

In Stock, Qty 20+

0

2

MTD 791-612605

Hanger Accessory
(Superseded to 731-08926)

$2.99

$

In Stock, only 3 left!

0

3

MTD 791-181346

Vane Actuator Knob

$

$

Not available

4

MTD 791-181347

Grommet

$

$

Not available

5

MTD 791-181348

Vane Actuator Shaft

$

$

Not available

6

MTD 791-181349

Cover

$

$

Not available

7

MTD 791-181350

Vane Actuator Washer
(Superseded to 736-04117)

$3.49

$

In Stock, Qty 20+

0

8

MTD 791-181351

Vane Actuator Bracket

$

$

Not available

9

MTD 791-181352

Drive Housing Assembly

$

$

Not available

10

MTD 791-181353

Screw

$

$

Not available

11

MTD 791-181354

Flexible Drive Shaft

$

$

Currently unavailable

12

MTD 791-145569

Screw

$9.99

$

In Stock, Qty 7

0

13

MTD 791-181355

Clamp

$

$

Not available

14

MTD 791-181356

Power Shaft Assembly

$

$

Not available

15

MTD 791-181357

Drive Housing Bracket

$

$

Not available

16

MTD 791-181358

Scraper
(Superseded to 791-00010)

$45.99

$

Usually ships in 3-6 days

0

17

MTD 791-181359

Retaining Ring

$

$

Not available

18

MTD 791-181360

Snowthrower Housing

$

$

Not available

19

MTD 791-181361

Screw

$

$

Not available

20

MTD 791-181362

Screw

$

$

Not available

21

MTD 791-181363

Drive Pulley

$

$

Not available

22

MTD 791-181364

Idler Arm

$

$

Not available

23

MTD 791-181365

Idler Spring

$

$

Not available

24

MTD 791-181366

Rotor Shaft

$

$

Not available

25

MTD 791-181367

Washer

$

$

Not available

26

MTD 791-181368

Driven Pulley

$

$

Not available

27

MTD 791-181369

Drive Belt
(Superseded to 791-00014)

$36.99

$

Usually ships in 3-6 days

0

28

MTD 791-181370

Ball Bearing

$

$

Not available

29

MTD 791-181371

Idler Pulley Retainer

$

$

Not available

30

MTD 791-181372

Screw

$

$

Not available

31

MTD 791-181373

Belt Case Cover

$

$

Not available

32

MTD 791-181374

Flange Lock Nut

$

$

Not available

33

MTD 791-181375

Thrust Washer

$

$

Not available

34

MTD 791-181376

Left Rotor Bushing

$

$

Not available

35

MTD 791-181377

Outer Vane

$

$

Not available

36

MTD 791-181378

Vane Mount

$

$

Not available

37

MTD 791-181379

Center Vane

$

$

Not available

38

MTD 791-181380

Washer

$

$

Not available

39

MTD 791-181381

Screw

$

$

Not available

40

MTD 791-181382

Rotor

$

$

Not available

41

MTD 791-181383

Right Rotor Bushing

$

$

Not available
