ST 661 BS (1696410-00) - Champion 24" Snow Thrower, 7.5hp, Canada (2013) Auger Drive Group Parts Diagram

24" Snow Thrower, 7.5hp, Canada

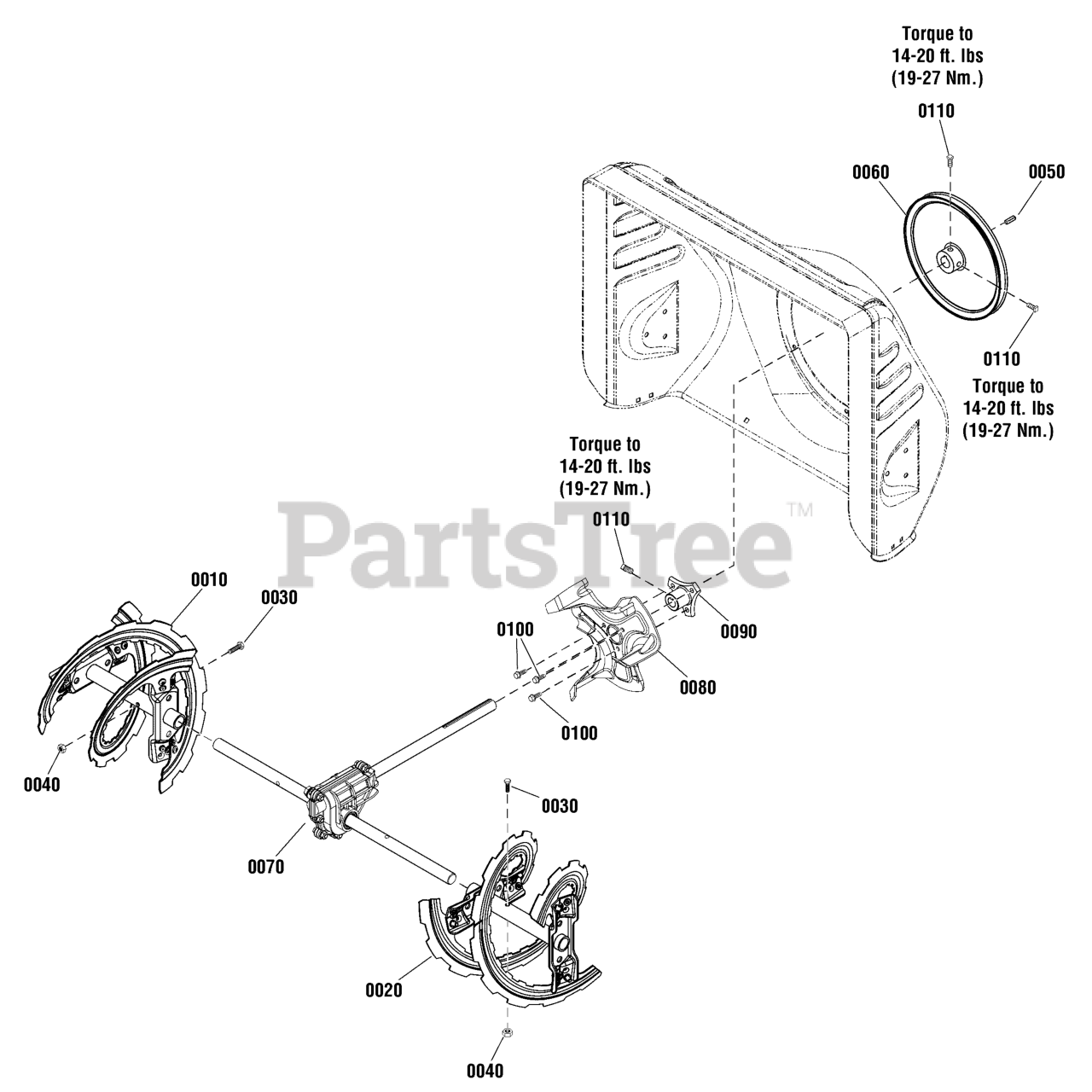

Auger Drive Group Parts Diagram

  • Title
0010

Murray 1752081BCYP

Auger Assembly, Right

$100.99

$

Usually ships in 2-12 days

0

0020

Murray 1752067BC

Auger Assembly,Left

$

$

Currently unavailable

0030

Murray 703057

Capscrew, Hex Head,1/4-20X13/4,GR2

$5.99

$

In Stock, Qty 5

0

0040

Murray 703251

Nut, Hex Centerlock,1/4-20, GR5

$4.99

$

In Stock, Qty 20+

0

0050

Murray 2001022MA

Key,Square 3/16 X 3/4

$4.49

$

In Stock, Qty 12

0

0060

Murray 1752220YP

Pulley, Auger

$87.99

$

In Stock, Qty 5

0

0070

Murray 1753221YP

Gear Case Assembly

$463.99

$

Usually ships in 2-12 days

0

0080

$46.99

$

In Stock, only 4 left!

0

0090

Murray 1739073YP

Hub, Impeller

$23.99

$

In Stock, only 4 left!

0

0100

Murray 1924856SM

Screw, Hex Washer Head Tap TT 5/16-18 x 1/2
(Superseded to 703985)

$4.49

$

In Stock, only 3 left!

0

0110

Murray 1930540SM

Screw, Set Square Head, Cup PT5/16-18X5/8, G8

$4.49

$

In Stock, Qty 11

0
