ST 6524 (624650x16B) - Frontier 24" Snow Thrower (2007) Gear Case Parts Diagram

24" Snow Thrower

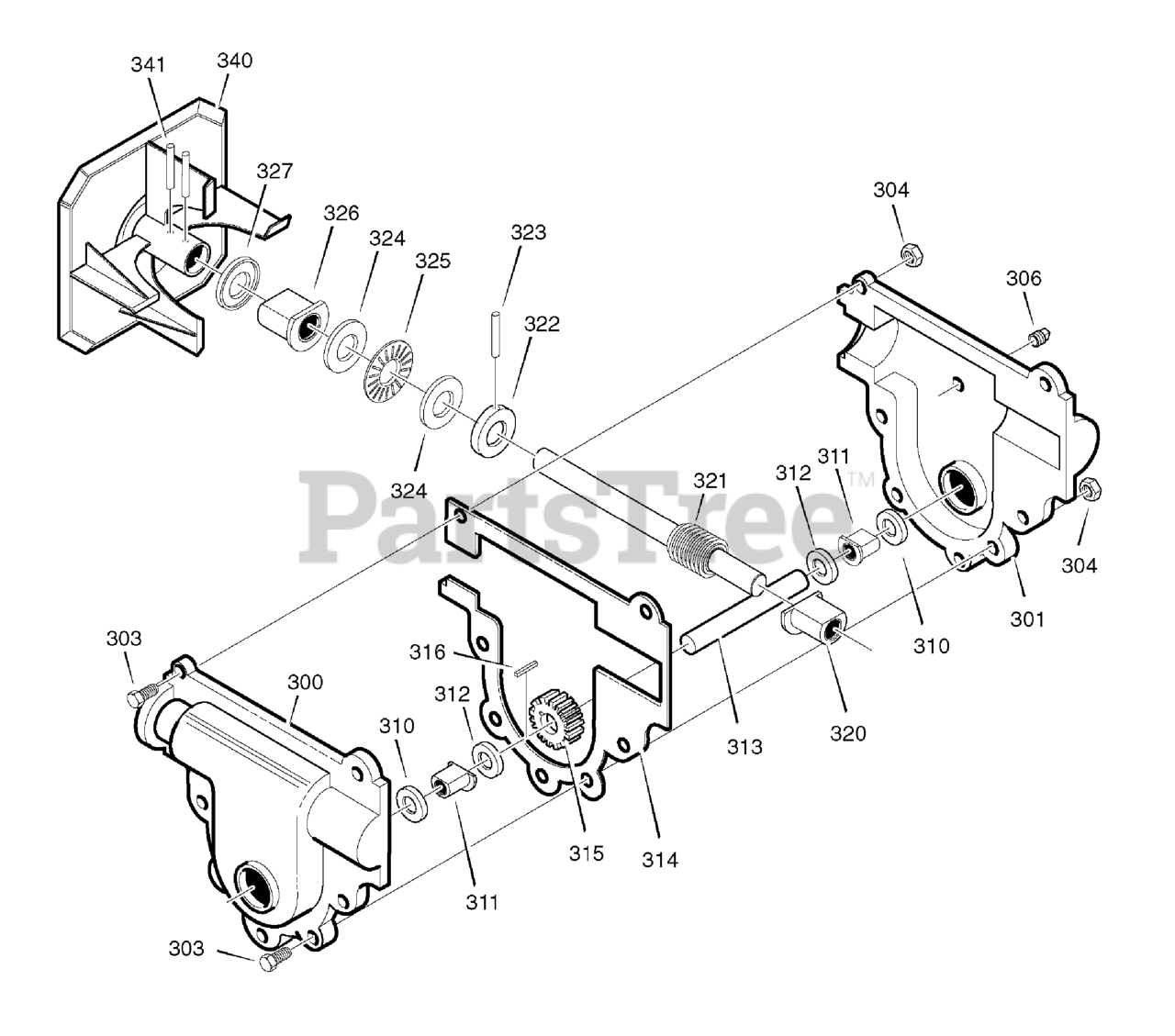

Gear Case Parts Diagram

  • Title
300

Murray MT10577MA

CASE, Gear R.H.
(Superseded to 10577MA)

$22.99

$

In Stock, only 1 left!

0

301

Murray MT10576MA

CASE, Gear L.H.
(Superseded to 10576MA)

$22.99

$

In Stock, Qty 5

0

303

Murray MT710025MA

SCREW, 1/4 - 20 x 3/4
(Superseded to 710025MA)

$4.49

$

Usually ships in 2-12 days

0

304

Murray MT15X143MA

NUT, 1/4 - 20
(Superseded to 15X143MA)

$4.99

$

In Stock, Qty 13

0

306

Murray MT9344MA

SCREW, 3/8 - 16 x 1/2
(Superseded to 704213)

$5.49

$

In Stock, only 1 left!

0

310

Murray MT9566MA

SEAL, Oil
(Superseded to 9566MA)

$12.99

$

In Stock, only 2 left!

0

311

Murray MT50304MA

BEARING, Flange
(Superseded to 50304MA)

$8.49

$

In Stock, Qty 14

0

312

Murray MT48275MA

WASHER, Flat
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 6

0

313

Murray MT340286MA

SHAFT, Auger Output
(Superseded to 340286MA)

$57.99

$

Usually ships in 2-12 days

0

314

Murray MT51279MA

GASKET, Gear Box
(Superseded to 51279MA)

$12.99

$

In Stock, Qty 10

0

315

Murray MT51405MA

GEAR, Worm
(Superseded to 51405MA)

$78.99

$

In Stock, only 2 left!

0

316

Murray MT431787MA

KEY, Woodruff, #61
(Superseded to 703891)

$4.99

$

In Stock, Qty 20+

0

320

Murray MT50221MA

BEARING, Flange
(Superseded to 50221MA)

$8.49

$

In Stock, only 4 left!

0

321

Murray MT1501128MA

SHAFT, Auger Input
(Superseded to 1501128MA)

$84.99

$

Usually ships in 2-12 days

0

322

Murray MT580295MA

COLLAR, Thrust
(Superseded to 580295MA)

$22.99

$

Usually ships in 2-12 days

0

323

Murray MT454565MA

PIN, Spring
(Superseded to 454565MA)

$

$

Not available

324

Murray MT48275MA

WASHER, Flat
(Superseded to 48275MA)

$6.49

$

In Stock, Qty 6

0

325

Murray MT50684MA

BEARING, Roll
(Superseded to 50684MA)

$6.49

$

In Stock, only 1 left!

0

326

Murray MT50304MA

BEARING, Flange
(Superseded to 50304MA)

$8.49

$

In Stock, Qty 14

0

327

Murray MT9566MA

SEAL, Oil
(Superseded to 9566MA)

$12.99

$

In Stock, only 2 left!

0

340

Murray MT760194E701MA

IMPELLER
(Superseded to 760194E701MA)

$246.99

$

Usually ships in 2-12 days

0

341

Murray MT454565MA

PIN, Spring
(Superseded to 454565MA)

$

$

Not available

--

Murray MT333431MA

LUBRIPLATE, GR132, 14oz

Note: (Not Illustrated)

$19.99

$

Usually ships in 2-12 days

0
