ST 6524 (624650x16B) - Frontier 24" Snow Thrower (2007) Engine Parts Diagram

24" Snow Thrower

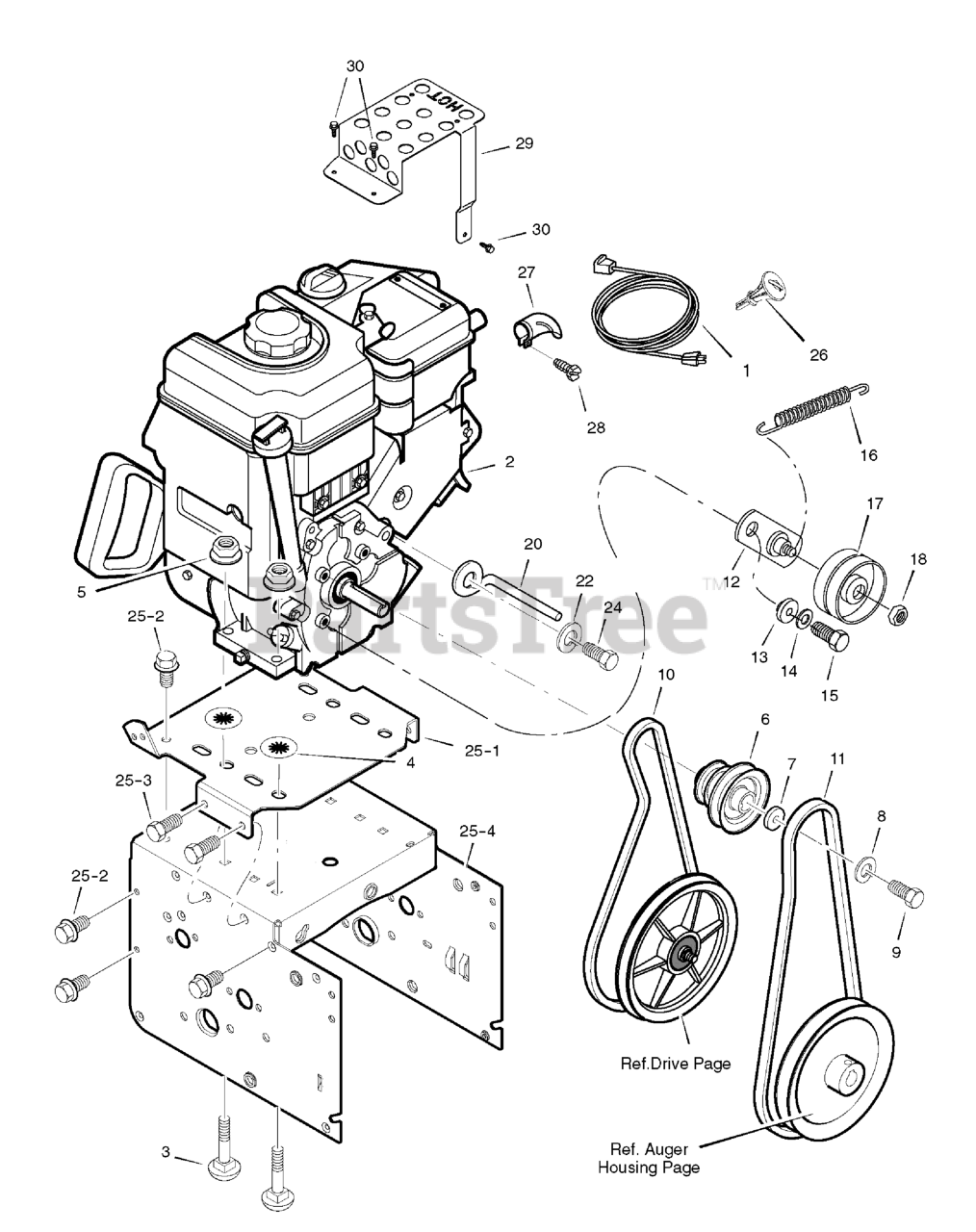

Engine Parts Diagram

  • Title
1

Murray MT6219MA

CORD, Starter
(Superseded to 6219MA)

$40.99

$

In Stock, only 2 left!

0

2

ENGINE

Note: (Model# 12A1140132E1/E8)

$

$

Not available

3

Murray MT002X97MA

BOLT, Carriage
(Superseded to 704210)

$4.99

$

In Stock, Qty 12

0

4

Murray MT028X76MA

RETAINER, Push
(Superseded to 028X76MA)

$4.49

$

Usually ships in 2-12 days

0

5

Murray MT710026MA

NUT
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

6

Murray MT1501109MA

PULLEY, Engine
(Superseded to 1501109MA)

$41.99

$

In Stock, only 2 left!

0

7

Murray MT17X170MA

WASHER
(Superseded to 17X170MA)

$

$

Not available

8

Murray MT17X146MA

WASHER, Flat

$

$

Currently unavailable

9

Murray MT910828MA

BOLT, Hex 5/16-24 x 1
(Superseded to 703301)

$3.99

$

In Stock, only 2 left!

0

10

Murray MT579932MA

BELT, Drive V, 4L
(Superseded to 1733324SM)

$19.99

$

In Stock, Qty 20+

0

11

Murray MT37X120MA

BELT, Auger V, 3L
(Superseded to 37X120MA)

$22.99

$

In Stock, Qty 13

0

12

Murray MT1501112YZMA

BRACKET ASSEMBLY, Idler
(Superseded to 1687797YP)

$8.49

$

In Stock, only 2 left!

0

13

Murray MT1501065MA

BUSHING, Idler Bracket
(Superseded to 1501065MA)

$5.49

$

In Stock, only 2 left!

0

14

Murray MT71060MA

WASHER, Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Murray MT710097MA

SCREW 5/16 - 24 x 3/4
(Superseded to 710097MA)

$4.49

$

Usually ships in 2-12 days

0

16

Murray MT53704MA

SPRING, Idler Traction Drive
(Superseded to 53704MA)

$8.49

$

In Stock, only 2 left!

0

17

Murray MT1502120MA

PULLEY, Idler

$

$

Currently unavailable

18

Murray MT590MA

NUT, Jam 3/8 - 16
(Superseded to 703996)

$4.99

$

In Stock, Qty 10

0

20

Murray MT1501201MA

GUIDE, Rod Belt
(Superseded to 1739070YP)

$7.99

$

In Stock, Qty 5

0

22

Murray MT71060MA

WASHER
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Murray MT710097MA

SCREW
(Superseded to 710097MA)

$4.49

$

Usually ships in 2-12 days

0

25

FRAME ASSEMBLY

$

$

Not available

25-1

Murray MT1501062E511MA

PLATE, Engine
(Superseded to 1501062E511MA)

$61.99

$

Usually ships in 2-12 days

0

25-2

Murray MT310169MA

SCREW
(Superseded to 703054)

$4.49

$

In Stock, Qty 5

0

25-3

Murray MT25X020MA

SCREW
(Superseded to 25X020MA)

$4.99

$

In Stock, Qty 6

0

25-4

Murray MT1501050E511MA

MOTOR BOX
(Superseded to 761168E511MA)

$88.99

$

Usually ships in 2-12 days

0

26

Murray MT695756

KEY, Briggs Engine

$

$

Currently unavailable

27

Murray MT697816

DEFLECTOR, Muffler

$

$

Currently unavailable

$

$

Currently unavailable

29

Murray MT1734732SM

HEAT SHIELD, Muffler

$

$

Currently unavailable

$

$

Currently unavailable

--

Murray MT1741211

OWNERS MANUAL

$

$

Currently unavailable
