ST 6524 (624650x16B) - Frontier 24" Snow Thrower (2007) Auger Housing Parts Diagram

24" Snow Thrower

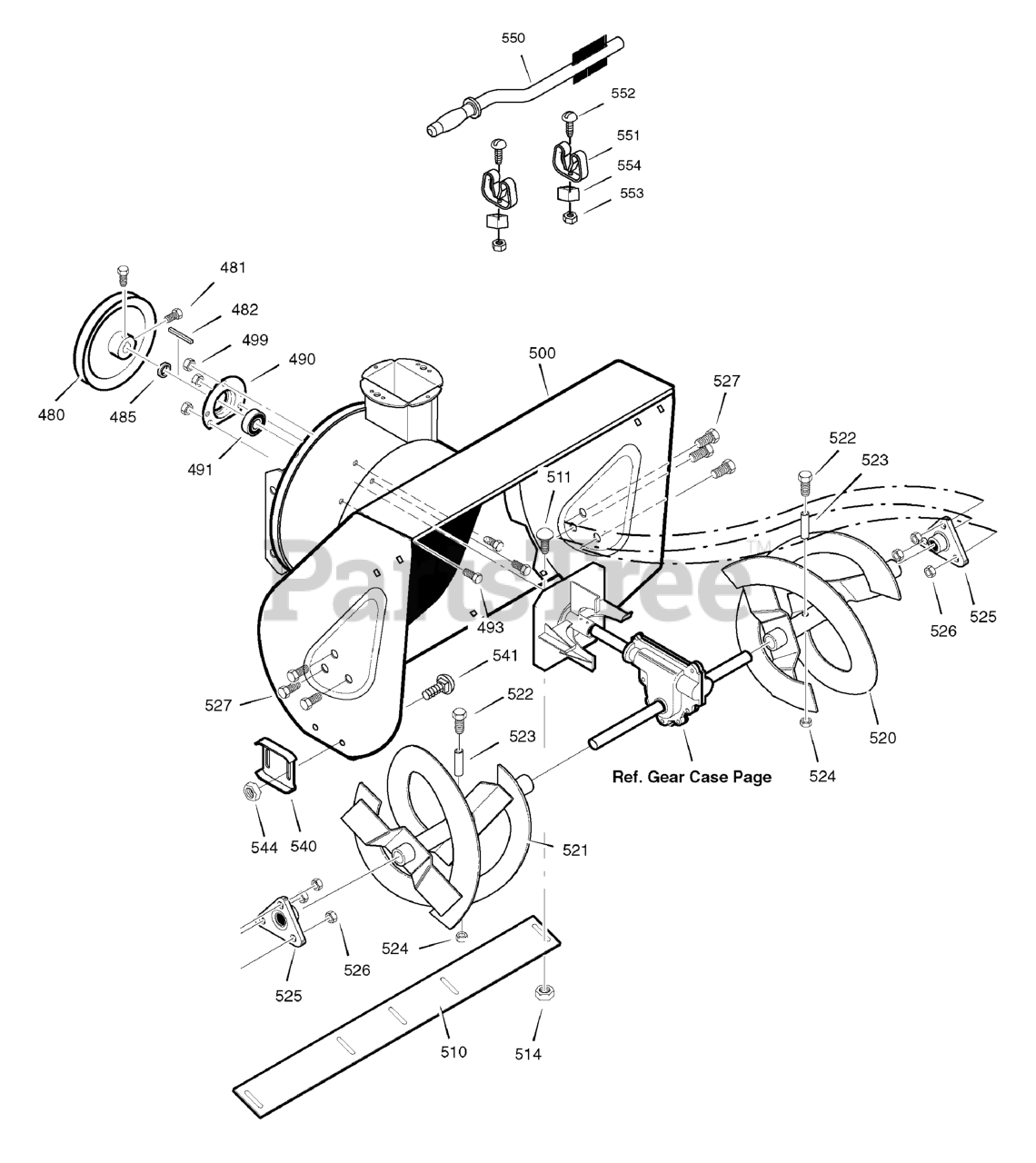

Auger Housing Parts Diagram

  • Title

480

Murray MT762146MA

PULLEY, 4L 6-1/8 x .67
(Superseded to 762146MA)

$70.99

$

Usually ships in 2-12 days

0

481

Murray MT577400MA

SCREW, 5/16-18 x 5/8
(Superseded to 577400MA)

$4.99

$

Usually ships in 2-12 days

0

482

Murray MT2001022MA

KEY, Square, 3/16 x 3/4
(Superseded to 2001022MA)

$4.49

$

In Stock, Qty 11

0

485

Murray MT1501158MA

SPACER, Friction Pulley
(Superseded to 1501158MA)

$4.99

$

In Stock, Qty 10

0

490

Murray MT582957YZMA

RETAINER, Ball Bearing
(Superseded to 1756809YP)

$10.99

$

In Stock, only 4 left!

0

491

Murray MT1501389MA

BEARING, Ball
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

493

Murray MT02X101MA

BOLT, 5/16 - 18 x 3/4
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

499

Murray MT710026MA

NUT, Hex Whiz Lock Flange 5/16-18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

500

Murray MT1501585E511MA

HOUSING ASSEMBLY
(Superseded to 1501585E511MA)

$319.99

$

Usually ships in 2-12 days

0

510

Murray MT581397E701MA

BLADE, Scraper
(Superseded to 1740909BMYP)

$40.99

$

In Stock, only 2 left!

0

511

Murray MT001X45MA

BOLT, 1/4 - 20 x 5/8

$

$

Currently unavailable

514

Murray MT780285MA

NUT, 1/4 - 20
(Superseded to 703233)

$4.49

$

In Stock, Qty 5

0

520

Murray MT1501209E701MA

AUGER ASSEMBLY, L.H.
(Superseded to 1501209E701MA)

$

$

Not available

521

Murray MT1501210E701MA

AUGER ASSEMBLY, R.H.
(Superseded to 1741108HMA)

$149.99

$

Usually ships in 2-12 days

0

522

Murray MT9524MA

SCREW, 1/4 - 20 x 1-3/4
(Superseded to 703057)

$5.99

$

In Stock, only 3 left!

0

523

Murray MT3943MA

SPACER, Sleeve
(Superseded to 703058)

$7.49

$

In Stock, only 4 left!

0

524

Murray MT73826MA

NUT, 1/4 - 20
(Superseded to 703251)

$4.99

$

In Stock, Qty 20+

0

525

Murray MT9517MA

BEARING, Flange
(Superseded to 9517MA)

$5.99

$

In Stock, Qty 18

0

526

Murray MT711862MA

NUT, 5/16 - 18
(Superseded to 703119)

$3.49

$

In Stock, only 2 left!

0

527

Murray MT9357MA

SCREW, 5/16-18 x 3/4
(Superseded to 703354)

$5.49

$

In Stock, Qty 10

0

540

Murray MT1502079E701MA

SKID, Height Adjust
(Superseded to 1502079E701MA)

$

$

Not available

541

Murray MT908156MA

BOLT, 5/16 - 18 x 1/2

$

$

Currently unavailable

544

Murray MT710026MA

NUT, 5/16 - 18
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

550

Murray MT1501576MA

BRUSH, Cleanout
(Superseded to 1736094YP)

$34.99

$

In Stock, only 4 left!

0

551

Murray MT1501672MA

CLIP, Retainer
(Superseded to 1501672MA)

$8.99

$

In Stock, Qty 17

0

552

Murray MT06X115MA

SCREW
(Superseded to 704086)

$3.99

$

Usually ships in 2-12 days

0

553

Murray MT15X146MA

NUT
(Superseded to 703412)

$4.49

$

In Stock, only 2 left!

0

554

Murray MT578063MA

BLOCK
(Superseded to 578063MA)

$5.49

$

In Stock, only 2 left!

0

--

Murray MT1501216MA

KIT, Shear Bolt
(Superseded to 1501216MA)

Note: (Not Illustrated)

$4.99

$

In Stock, Qty 14

0

--

Murray MT309235MA

FASTENER, Ratcher

Note: (Not Illustrated)

$

$

Currently unavailable
