ST 624 - Husqvarna 24" Snow Blower (1998-01) Auger Housing Assembly Parts Diagram

24" Snow Blower

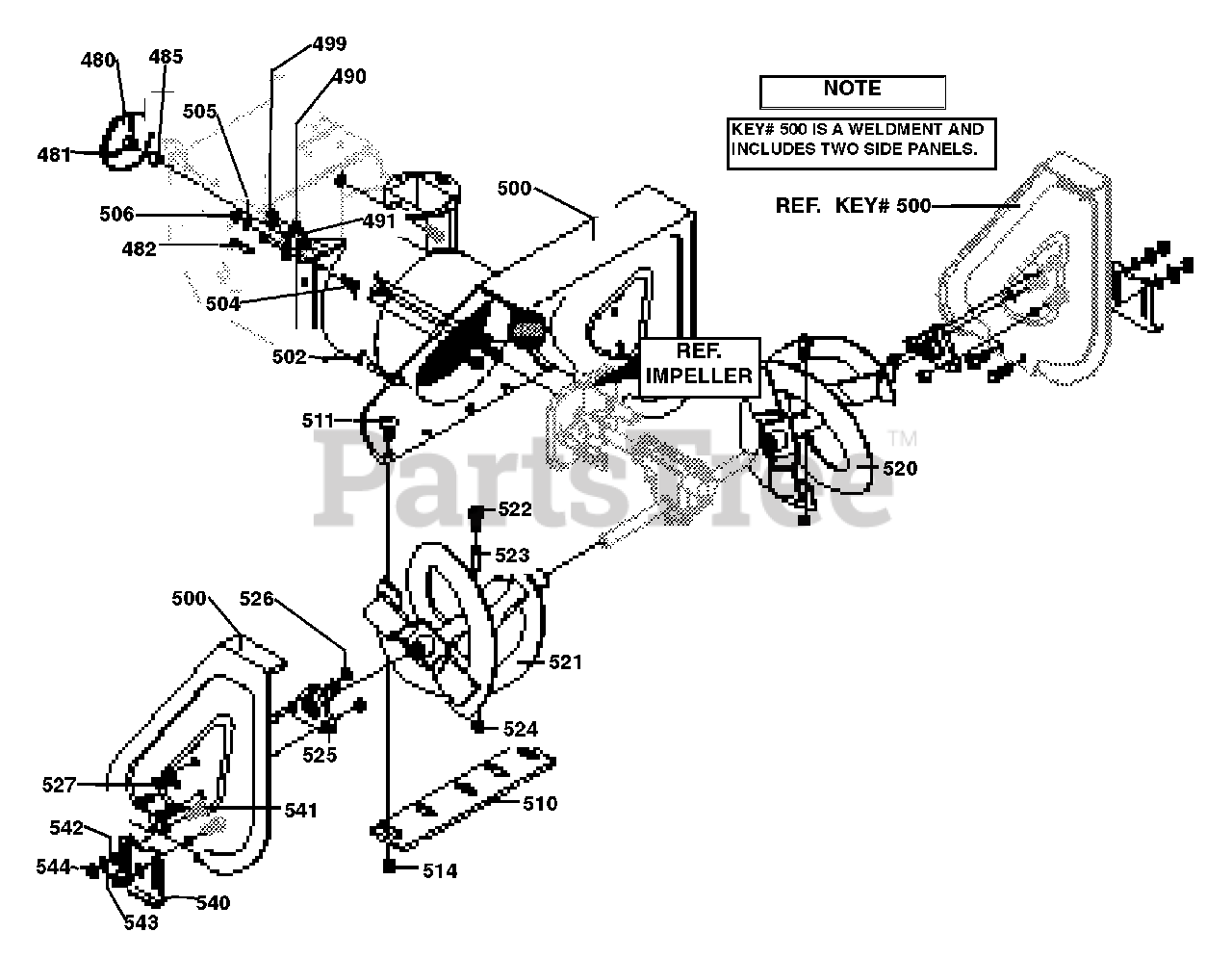

Auger Housing Assembly Parts Diagram

  • Title
480

Husqvarna 601002114

PULLEY, V4L

$

$

Not available

481

Husqvarna 601002365

SCREW, 5/16-18 X .63

$

$

Not available

482

Husqvarna 601001507

KEY, SQUARE

$

$

Not available

485

Husqvarna 601001610

SPACER, SLEEVE

$

$

Not available

490

Husqvarna 601001509

RETAINER, BALL

$

$

Not available

491

Husqvarna 601000539

BEARING, BALL
(Superseded to 601000565)

$

$

Not available

493

Husqvarna 601000073

SCREW, 5/16-18 X .75

$

$

Not available

499

Husqvarna 601002036

NUT, 5/16-18

$

$

Not available

500

Husqvarna 601002366

HOUSING, ASSY

$

$

Not available

502

Husqvarna 601001004

RATCHET FASTENER

$

$

Not available

504

Husqvarna 601002061

SCREW, 3/8-16 X .75 HHC

$

$

Not available

505

Husqvarna 601000015

WASHER, REGSPTLK

$

$

Not available

506

Husqvarna 601000060

NUT, 3/8-16
(Superseded to 601002407)

$

$

Not available

510

Husqvarna 601002422

SCRAPER BLADE

$

$

Not available

511

Husqvarna 601002341

BOLT, 1/4-20 X .75 CARR.
(Superseded to 601002119)

$

$

Not available

514

Husqvarna 601002342

NUT, 1/4-20

$

$

Not available

520

Husqvarna 601002367

AUGER, ASSY LH

$

$

Not available

521

Husqvarna 601002368

AUGER, ASSY RH

$

$

Not available

522

Husqvarna 601001456

SCREW, 1/4-20 X 1.75

$

$

Not available

523

Husqvarna 601001517

SPACER, SLEEVE

$5.99

$

In Stock, Qty 6

0

524

Husqvarna 601002318

NUT, 1/4-20 REGHXCTRLK

$11.99

$

In Stock, only 2 left!

0

525

Husqvarna 601002122

FLANGE BEARING

$

$

Not available

526

Husqvarna 601002123

NUT, 5/16-18 HXWDFLLK

$

$

Not available

527

Husqvarna 601002124

SCREW, 5/16-18 X .75

$

$

Not available

540

Husqvarna 601002423

SKID, HEIGHT ADJUST

$

$

Not available

541

Husqvarna 601001411

BOLT, 5/16-18 X .75

$

$

Not available

542

Husqvarna 601000019

FLATWASHER .344 X .69 X .065

$3.49

$

In Stock, only 1 left!

0

543

Husqvarna 601000023

WASHER, .328 X .60 X .09

$

$

Not available

544

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available
