ST 624 E - Husqvarna 24" Snow Blower (1998-01) HANDLE & CONTROLS Parts Diagram

24" Snow Blower

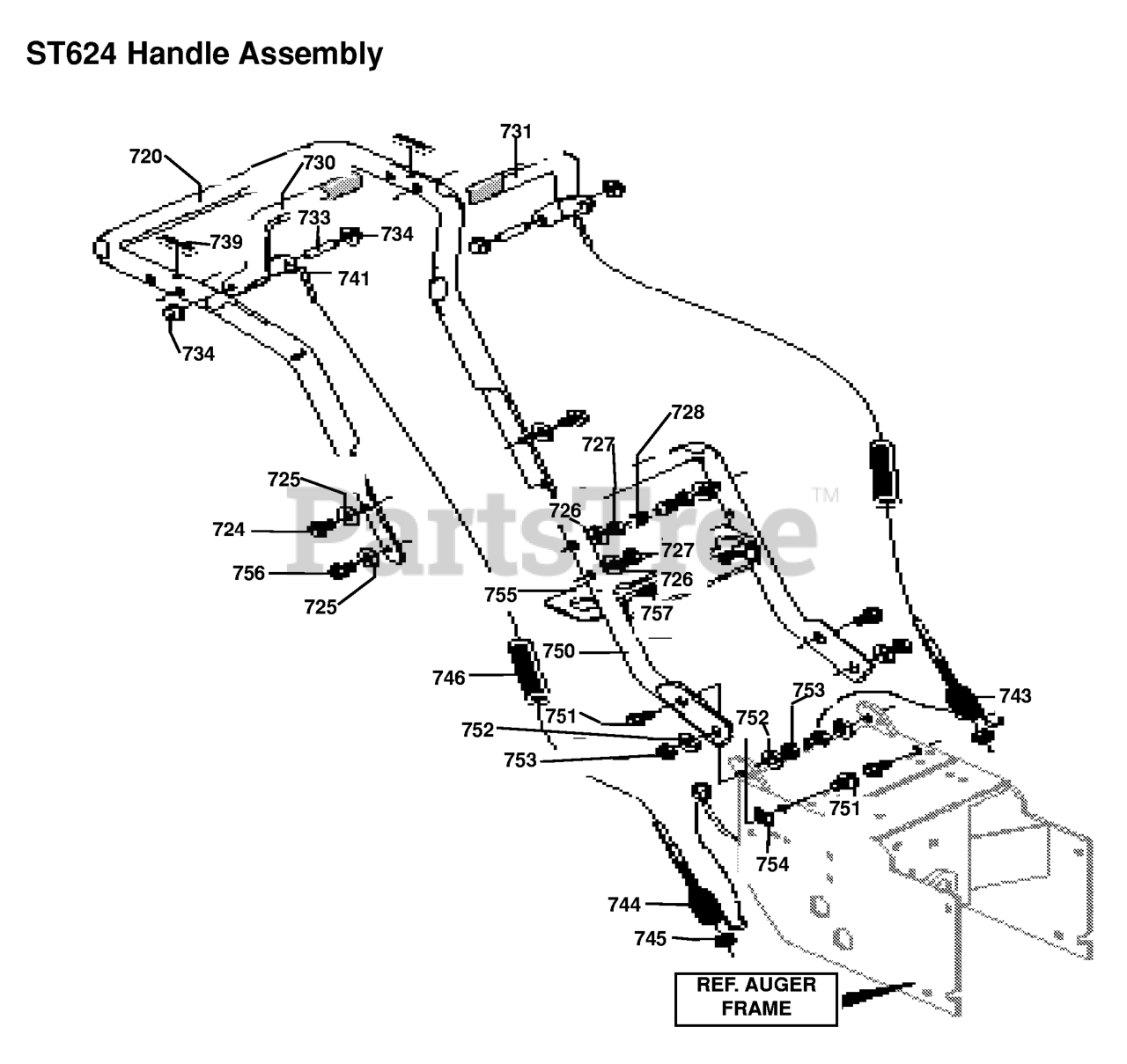

HANDLE & CONTROLS Parts Diagram

  • Title

754

Husqvarna 601000355

PUSHNUT, 5/16 BOLT RETAIN

$

$

Not available

720

Husqvarna 601002360

HANDLE, UPPER

$

$

Not available

730

Husqvarna 601002136

Kit for Handle, Assy RH

$

$

Not available

731

Husqvarna 601002136

Kit for Handle, Assy RH

$

$

Not available

746

Husqvarna 601001395

BOOT, CLUTCH SPRING

$

$

Not available

751

Husqvarna 601000074

SCREW, 5/16-18X1.00 HHC

$

$

Not available

756

Husqvarna 601002363

SCREW-5/16-18 X .75

$

$

Not available

744

Husqvarna 601001553

CLUTCH SPRING

$

$

Not available

750

Husqvarna 601002361

LOWER HANDLE

$

$

Not available

753

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

743

Husqvarna 601001552

SPRING TENSION

$

$

Not available

727

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

739

Husqvarna 601001550

BUMPER

$

$

Not available

726

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

724

Husqvarna 601002134

SCREW

$

$

Not available

745

Husqvarna 601002318

RP NUT

$11.99

$

In Stock, only 2 left!

0

741

Husqvarna 601002137

CABLE, CLUTCH

$

$

Not available

734

Husqvarna 601000516

NUT, PUSH ON CAP .312 OD

$

$

Not available

728

Husqvarna 601002135

STOP, RED PLASTIC

$

$

Not available

733

Husqvarna 601002334

CLUTCH PIN
(Superseded to 601001549)

$

$

Not available

755

Husqvarna 601002362

BRACKET,GEAR SELECTOR

$

$

Not available

752

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X

$

$

Not available

757

Husqvarna 601000114

SCREW, .25X.75X.75HHWAPLA

$

$

Not available

725

Husqvarna 601000019

WASHER, FLAT .344X .69X.

$3.49

$

In Stock, only 1 left!

0
