ST 624 E - Husqvarna 24" Snow Blower (1998-01) FRAME Parts Diagram

24" Snow Blower

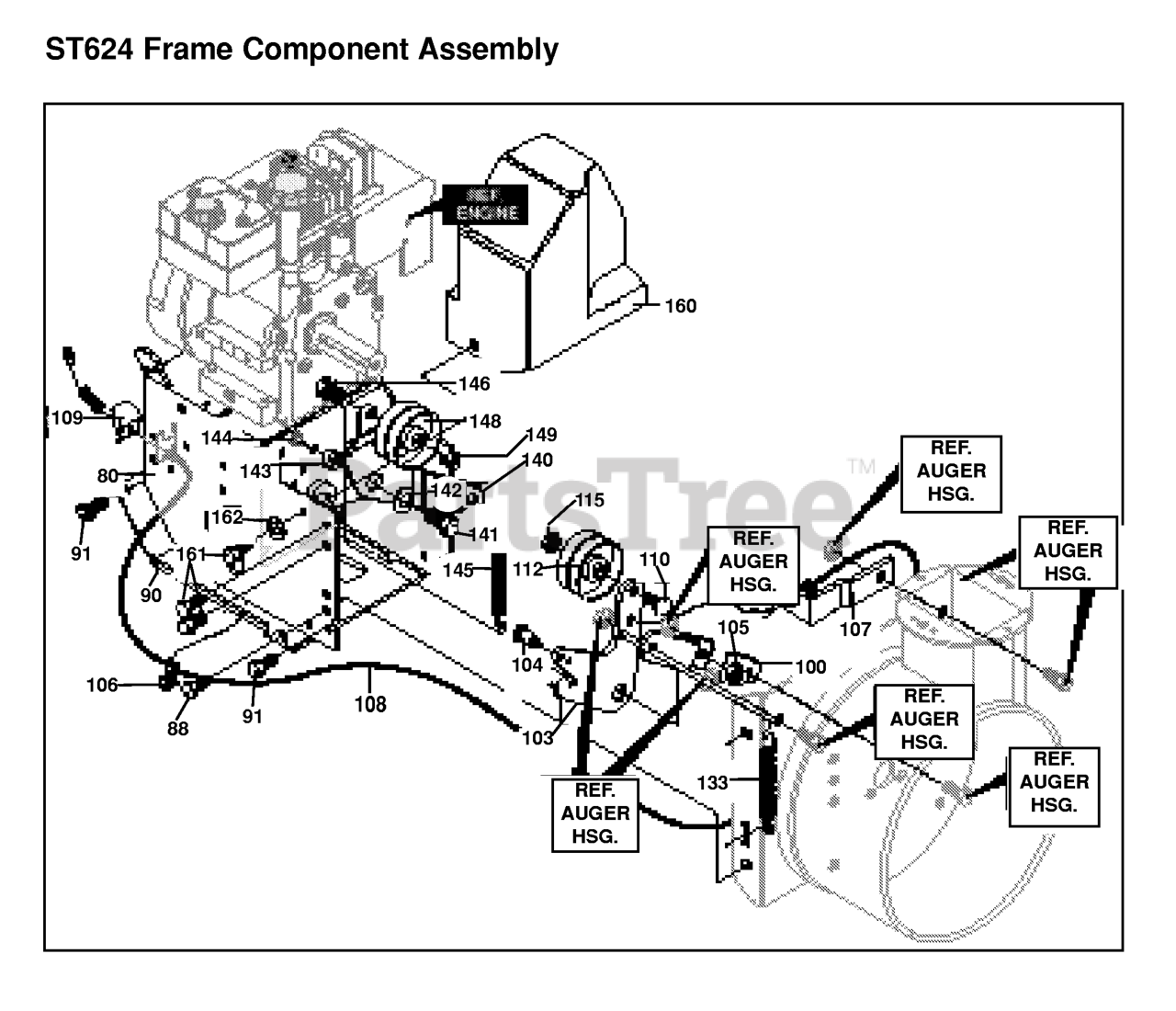

FRAME Parts Diagram

  • Title

142

Husqvarna 601001462

WASHER

$

$

Not available

143

Husqvarna 601001463

BUSHING

$

$

Not available

107

Husqvarna 601002102

Bracket, Compact Cable

$

$

Not available

141

Husqvarna 601000073

SCREW, 5/16-18X .75 HHC

$

$

Not available

160

Husqvarna 601001465

COVER, BELT

$

$

Not available

106

Husqvarna 601002027

CLIP, CABLE TINN

$

$

Not available

162

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

100

Husqvarna 601002347

PLATE, CLU. ARM MT

$

$

Not available

161

Husqvarna 601001445

SCREW

$

$

Not available

115

Husqvarna 601001335

NUT

$

$

Not available

149

Husqvarna 601001335

NUT

$

$

Not available

80

Husqvarna 601002023

FRAME, ASSY

$

$

Not available

110

Husqvarna 601001740

SCREW, 3/8-16 X 1.25

$

$

Not available

90

Husqvarna 601001444

COVER

$

$

Not available

140

Husqvarna 601001461

LEVER

$

$

Not available

108

Husqvarna 601002421

CABLE
(Superseded to 601002473)

$

$

Not available

112

Husqvarna 601001454

IDLER PULLEY

$

$

Not available

104

Husqvarna 601002349

Bolt, .497 x .138 3/8-16

$

$

Not available

91

Husqvarna 601001445

SCREW

$

$

Not available

103

Husqvarna 601002348

ARM-CLUTCH CABLE

$

$

Not available

88

Husqvarna 601000519

SCREW, 5/16-18X .50 WAHHT

$

$

Not available

105

Husqvarna 601001335

NUT

$

$

Not available

145

Husqvarna 601001089

SPRING

$

$

Not available

144

Husqvarna 601001464

NUT

$

$

Not available

148

Husqvarna 601001454

IDLER PULLEY

$

$

Not available

146

Husqvarna 601001740

SCREW, 3/8-16 X 1.25

$

$

Not available

109

Husqvarna 601002030

SHIELD, CABLE GROUND

$

$

Not available

133

Husqvarna 601001089

SPRING

$

$

Not available
