ST 525 (UT-15177) - Homelite String Trimmer Ignition - Rotor - Starter - Clutch Parts Diagram

String Trimmer

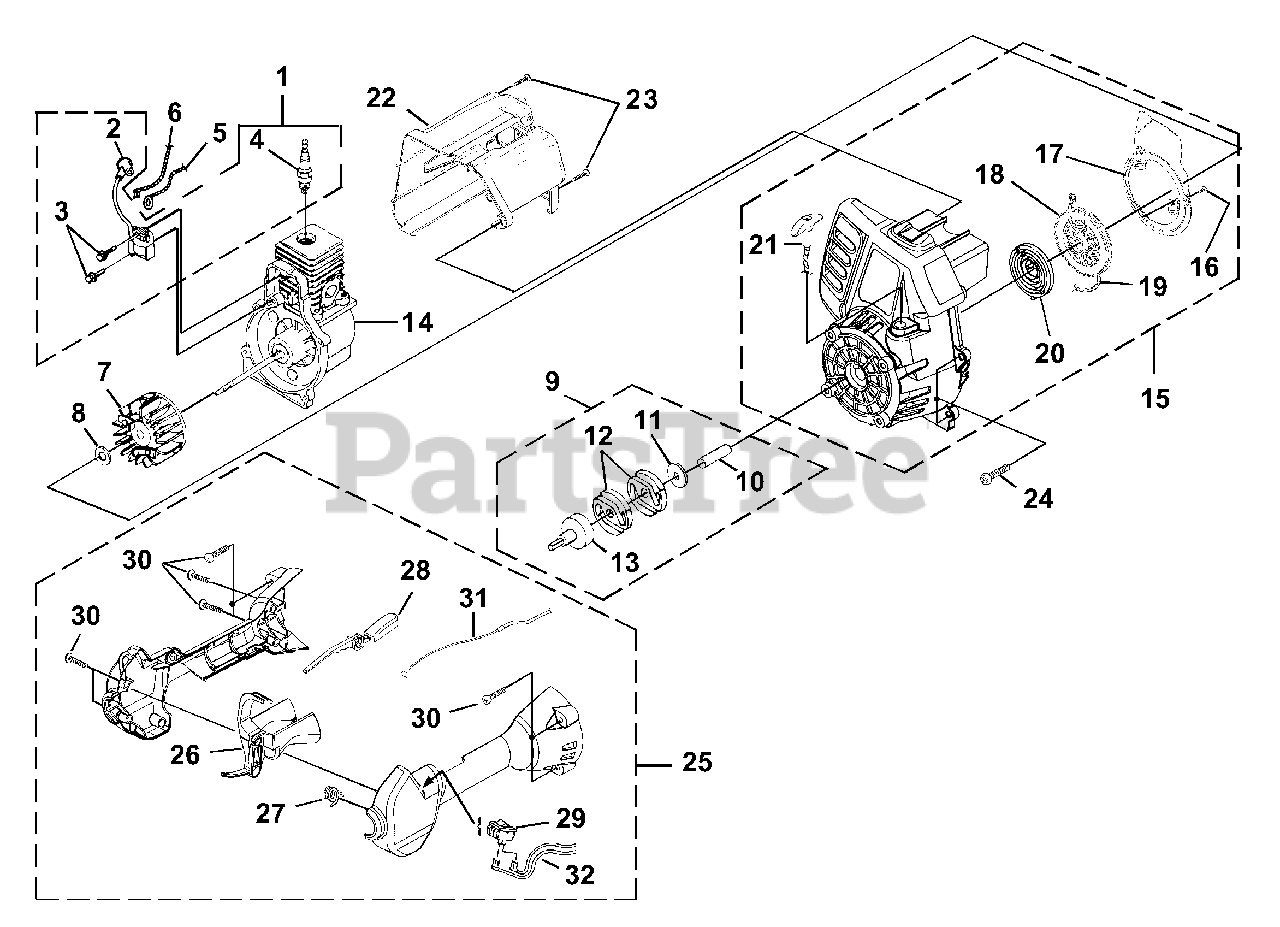

Ignition - Rotor - Starter - Clutch Parts Diagram

  • Title

1

Homelite A07174

IGNITION KIT
(Superseded to A07174A)

Note: Includes items 2-4

$

$

Not available

2

Homelite UP03868

TERMINAL & COVER
(Superseded to A33055)

$

$

Not available

3

Homelite UP03896

SCREW-Taptite (8-32 X 1")
(Superseded to 82540)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm. Required Loctite Blue 242

$2.49

$

Usually ships in 3-7 days

0

4

Homelite UP03883

SPARK PLUG

Note: Torque Specs 120-180 In/Lbs, 13.6-20.3 Nm.

$3.49

$

In Stock, only 3 left!

0

5

Homelite A06964

LEAD-Electrical

$

$

Not available

6

Homelite A06963

LEAD-Electrical

$3.99

$

Usually ships in 3-7 days

0

7

Homelite UP03009

ROTOR KIT

$

$

Currently unavailable

8

Homelite PS84065

WASHER-Flat

$

$

Not available

9

Homelite UP00034

CLUTCH AND DRUM KIT
(Superseded to UP00034A)

Note: Includes items 10-13

$

$

Not available

10

Homelite UP04118

SPACER
(Superseded to PS04300)

$

$

Not available

11

Homelite 98929A

WASHER-Flat
(Superseded to 638090001)

$1.99

$

In Stock, only 4 left!

0

12

Homelite UP04103

CLUTCH
(Superseded to 00242)

$

$

Not available

13

Homelite A02727

CONNECTOR AND DRUM
(Superseded to UP04104)

$

$

Not available

14

Homelite UP02995

SHORT BLOCK
(Superseded to 984561001)

Note: (See "Engine Internal" illustration and parts list)

$166.99

$

In Stock, only 1 left!

0

15

Homelite UP02963

COMPLETE STARTER ASSEMBLY

Note: Includes items 16-21

$

$

Not available

16

Homelite 82543

SCREW-Thread Form (8-16 X 1/2")

Note: Torque Specs 10-20 In/Lbs, 1.1-2.3 Nm.

$

$

Not available

17

Homelite UP03013

BAFFLE-Air
(Superseded to PS00326)

$2.49

$

In Stock, only 1 left!

0

18

Homelite UP03012

PULLEY-Starter
(Superseded to PS01122)

$1.99

$

In Stock, only 2 left!

0

19

Homelite UP03912

ROPE-Starter (42")
(Superseded to 900849002)

$1.99

$

Usually ships in 3-7 days

0

20

Homelite UP03917

SPRING & CONTAINER
(Superseded to A98773A)

$5.49

$

In Stock, only 4 left!

0

21

Homelite UP03026

GRIP-Starter (Yellow)
(Superseded to PS01200)

$2.49

$

In Stock, only 3 left!

0

22

Homelite UP02964

HOUSING-Rear Kit
(Superseded to 984633001)

Note: Includes item 23

$14.99

$

Usually ships in 3-7 days

0

23

Homelite UP03900

SCREW-Plastite (10-14 X 3/4")
(Superseded to 82563)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$1.99

$

In Stock, Qty 6

0

24

Homelite UP03406

SCREW-Taptite (10-24 X 3/4")
(Superseded to 82538)

Note: Torque Specs 30-40 In/Lbs, 3.4-4.5 Nm.

$1.99

$

Usually ships in 3-7 days

0

25

Homelite UP03114

CONTROL HANDLE ASSY.
(Superseded to UP03114A)

Note: Includes items 26-32

$

$

Not available

26

Homelite UP03207

TRIGGER-Throttle
(Superseded to UP03207A)

Note: Includes item 27

$5.99

$

Usually ships in 3-7 days

0

27

Homelite UP03210

SPRING
(Superseded to PS01718)

$2.49

$

In Stock, only 2 left!

0

28

Homelite UP03173

THROTTLE INTERLOCK
(Superseded to PS01128)

$11.99

$

Usually ships in 3-7 days

0

29

Homelite UP04197

SWITCH
(Superseded to PS02369)

$1.49

$

Usually ships in 3-7 days

0

30

Homelite UP04247

SCREW-Taptite (10-14 X 1")
(Superseded to 82589)

Note: Torque Specs 30-50 In/Lbs, 3.4-5.6 Nm.

$2.99

$

In Stock, Qty 7

0

31

Homelite UP03172

CABLE-Throttle
(Superseded to PS01177)

$1.49

$

In Stock, only 1 left!

0

32

Homelite UP03174

LEAD-Electrical
(Superseded to PA00387)

$6.99

$

Usually ships in 3-7 days

0
