ST 525 (UT-15177) - Homelite String Trimmer Carburetor - Fuel Tank Parts Diagram

String Trimmer

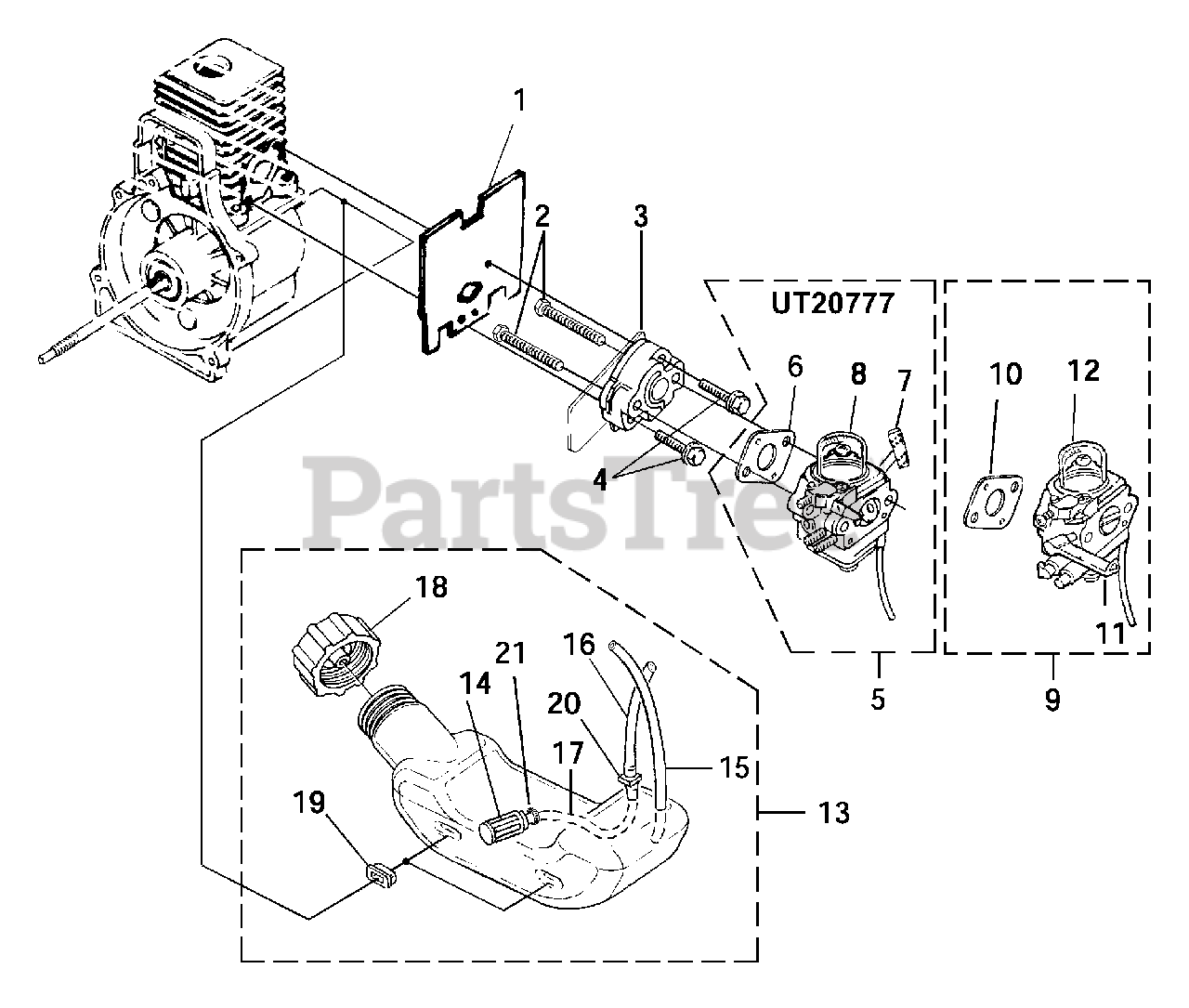

Carburetor - Fuel Tank Parts Diagram

  • Title
1

Homelite UP04308

GASKET-Heat Dam
(Superseded to 06900A)

$

$

Not available

2

Homelite UP04131

SCREW-Machine (10-24 X 2 1/4")

$

$

Not available

3

Homelite UP04348

HEAT DAM
(Superseded to 98768A)

$

$

Not available

4

Homelite UP04140

SCREW-Sems (10-24 X 1")
(Superseded to 093221)

Note: Torque Specs 35-45 In/Lbs, 4.0-5.1 Nm. Required Loctite Red 262

$

$

Not available

5

Homelite UP00608

CARBURETOR KIT (UT20777)
(Superseded to UP00608A)

Note: Includes items 6-8

$

$

Not available

6

Homelite UP03916

GASKET-Carburetor
(Superseded to 98766A)

$

$

Not available

7

Homelite UP04278

Lever-Choke (Zama)

$

$

Not available

8

Homelite A01195A

Bulb-Primer
(Superseded to UP04803)

$

$

Not available

9

Homelite UP04742

CARBURETOR KIT (Non Clutch)
(Superseded to UP04742A)

Note: Includes items 10-12

$191.99

$

Usually ships in 3-7 days

0

Homelite UP05085

CARBURETOR KIT (Clutch)
(Superseded to UP05085A)

Note: Includes items 10-12

$

$

Not available

10

Homelite UP03916

GASKET-Carburetor
(Superseded to 98766A)

$

$

Not available

11

Homelite UP04740

Lever-Choke
(Superseded to PS02306)

$

$

Not available

12

Homelite A01195A

Bulb-Primer
(Superseded to UP04803)

$

$

Not available

13

Homelite UP00020

FUEL TANK ASSY.
(Superseded to UP00020A)

Note: Includes items 14-21

$

$

Not available

14

Homelite UP03871

FILTER-Fuel
(Superseded to PS03380)

$

$

Not available

15

Homelite UP04293

TUBING-Rubber
(Superseded to 0143918)

$

$

Not available

16

Homelite UP04292

TUBING-Rubber
(Superseded to 0143910)

$1.99

$

In Stock, Qty 5

0

17

Homelite UP04715

TUBING-Rubber
(Superseded to 9477213)

$

$

Not available

18

Homelite UP00106

FUEL CAP
(Superseded to 300758006)

$

$

Not available

19

Homelite UP03501

BUMPER-Rubber
(Superseded to 98792)

$

$

Not available

20

Homelite UP03831

FITTING-Inline
(Superseded to 02067)

$

$

Not available

21

Homelite UP03913

CLAMP
(Superseded to 98268)

$1.99

$

In Stock, only 4 left!

0
