ST 523 - Husqvarna 23" Snow Blower (1995-01) Handle Control Parts Diagram

23" Snow Blower

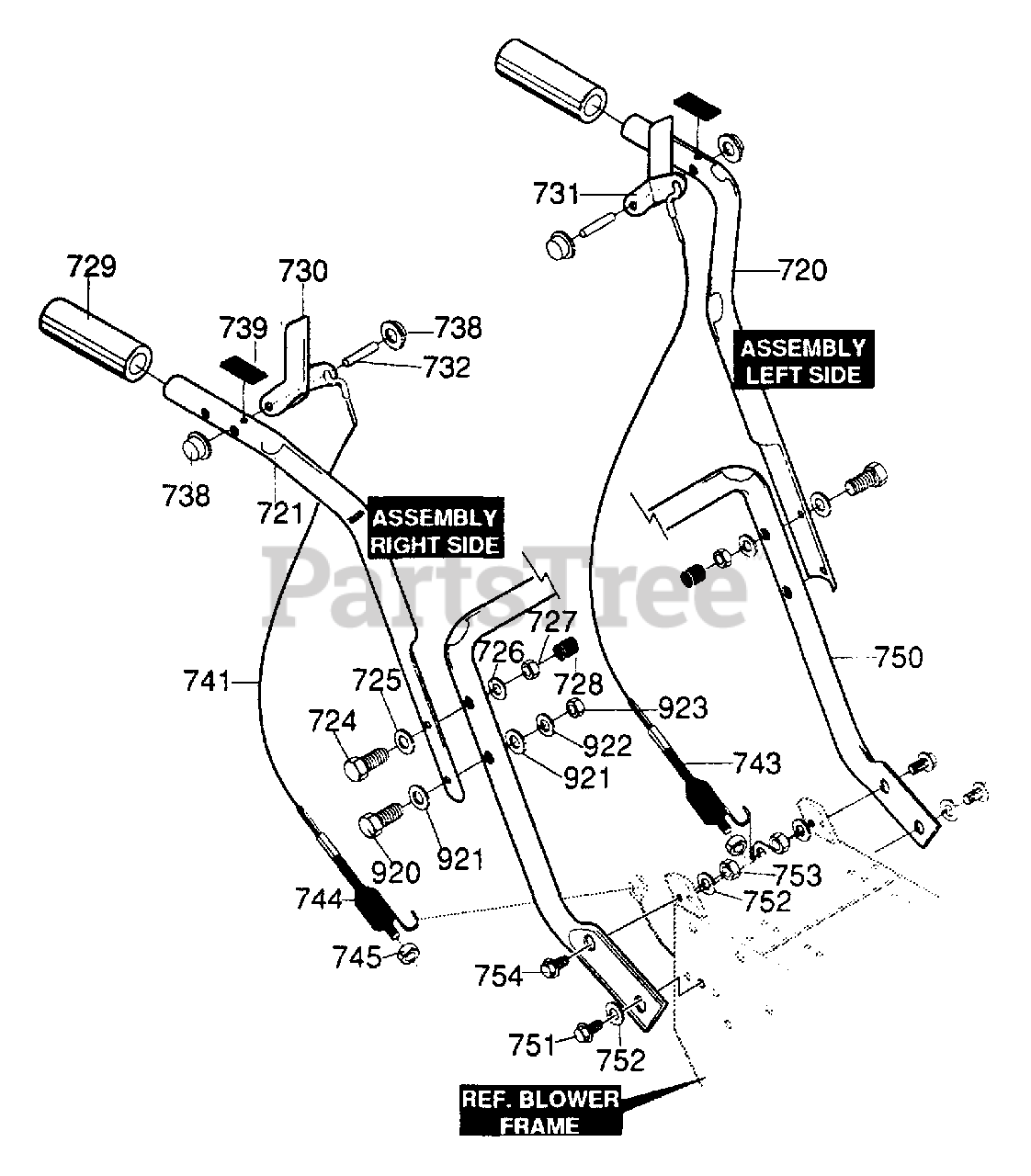

Handle Control Parts Diagram

  • Title
720

Husqvarna 601001542

HANDLE, UPPER, LH

$

$

Not available

721

Husqvarna 601001543

HANDLE, UPPER, RH

$

$

Not available

724

Husqvarna 601001544

SCREW, 3/8-16 x 3.00 HHCFT

$

$

Not available

725

Husqvarna 601000020

FLATWASHER, .406 x .81 x.065

$

$

Not available

726

Husqvarna 601000015

WASHER, REGSPTLK .393 x .68 x .10

$

$

Not available

727

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

728

Husqvarna 601001545

STOP, PLASTIC .375

$

$

Not available

729

Husqvarna 601001546

GRIP, HANDLE 1.25 x 4.38

$

$

Not available

730

Husqvarna 601001547

HANDLE, RH ASSEMBLY
(Superseded to 601001926)

$

$

Not available

731

Husqvarna 601001548

HANDLE, LH ASSEMBLY
(Superseded to 601001927)

$

$

Not available

732

Husqvarna 601001549

PIN, PIVOT .31 OD

$

$

Not available

738

Husqvarna 601000516

NUT, PUSH ON CAP .312 OD

$

$

Not available

739

Husqvarna 601001550

BUMPER, RECT W/FLAT TOP

$

$

Not available

741

Husqvarna 601001551

CABLE, CLUTCH 32.19" TRACTION

$

$

Not available

743

Husqvarna 601001552

SPRING TENSION

$

$

Not available

744

Husqvarna 601001553

SPRING, AUGER CLUTCH

$

$

Not available

745

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

750

Husqvarna 601001554

HANDLE, LOWER

$

$

Not available

751

Husqvarna 601000073

SCREW, 5/16-18 x .75 HHC

$

$

Not available

752

Husqvarna 601000023

WASHER, HVSPTLK .328 x .60 x .09

$

$

Not available

753

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

754

Husqvarna 601000520

SCREW, 5/16-18 x .75 WAHHTAP

$

$

Not available

920

Husqvarna 601001555

SCREW, 3/8-16 x 2.00 HHC

$

$

Not available

921

Husqvarna 601000020

FLATWASHER, .406 x .81 x .065

$

$

Not available

922

Husqvarna 601000015

WASHER, REGSPTLK .393 x .68 x .10

$

$

Not available

923

Husqvarna 601000060

NUT, 3/8-16 REGHEXCTRLK
(Superseded to 601002407)

$

$

Not available
