ST 523 - Husqvarna 23" Snow Blower (1995-01) Gear Box Parts Diagram

23" Snow Blower

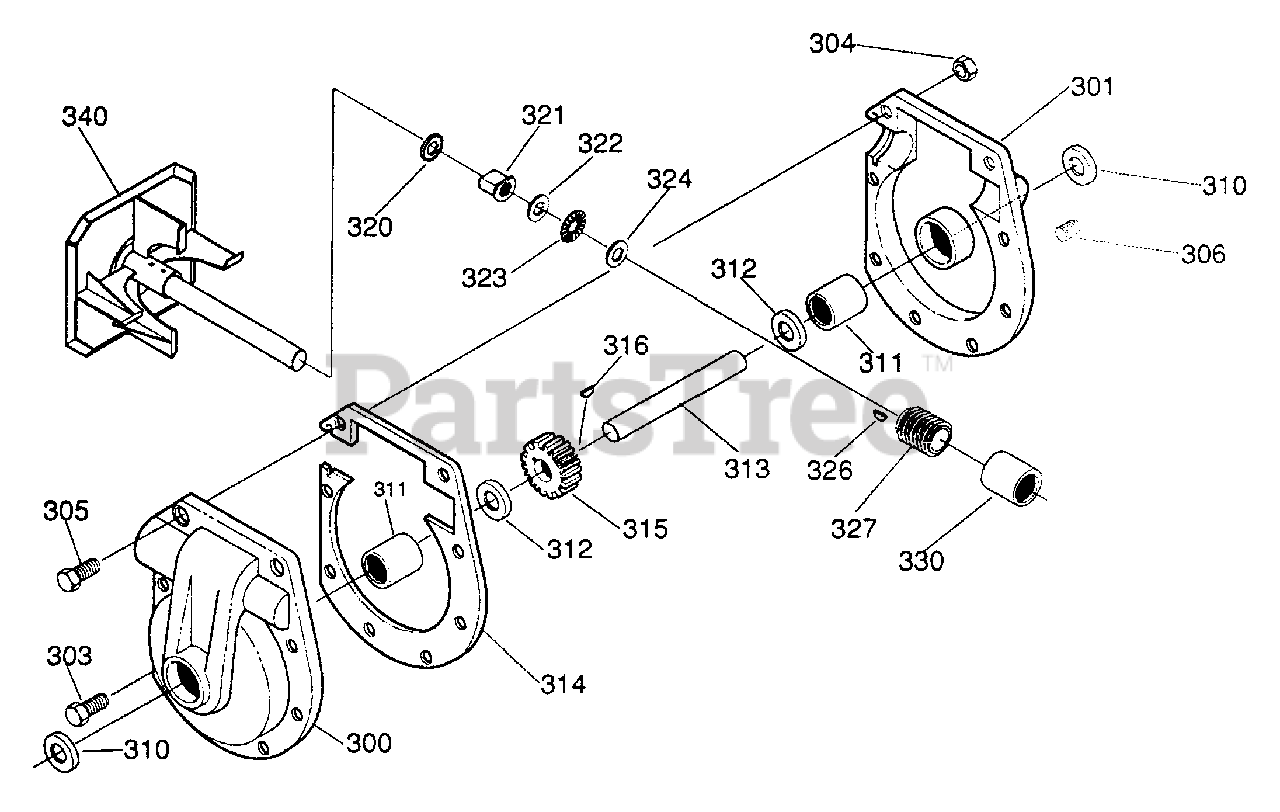

Gear Box Parts Diagram

  • Title

300

Husqvarna 601001487

CASE, GEAR, RH

$

$

Not available

301

Husqvarna 601001488

CASE, GEAR, LH

$

$

Not available

303

Husqvarna 601001443

SCREW, 5/16-24 x 1.00 HHC

$

$

Not available

304

Husqvarna 601000823

NUT, 5/16-24 HEXWDFLLK

$

$

Not available

305

Husqvarna 601001489

SCREW, 5/16-24 X 1.50 HHC

$

$

Not available

306

Husqvarna 601001490

PIPE PLUG

$

$

Not available

310

Husqvarna 601001491

SEAL, OIL CR 530552 #53744
(Superseded to 601002324)

$14.99

$

Usually ships in 3-10 days

0

311

Husqvarna 601001492

BEARING, SLEEVE

$

$

Not available

312

Husqvarna 601001493

FLATWASHER

$

$

Not available

313

Husqvarna 601001494

SHAFT, AUGER OUTPUT MF 22"

$

$

Not available

314

Husqvarna 601001495

GASKET, GEAR BOX

$

$

Not available

315

Husqvarna 601001496

WORM GEAR

$

$

Not available

316

Husqvarna 601001497

KEY, WDRF #91 .75 DIA x .25 WD

$

$

Not available

320

Husqvarna 601001498

RING, QUAD

$

$

Not available

321

Husqvarna 601001499

BEARING, FL .753 ID x 1.128 OD x 1.03

$

$

Not available

322

Husqvarna 601001500

FLATWASHER, .752 x 1.24 x .093 PL

$

$

Not available

323

Husqvarna 601001501

BEARING, ROLL

$

$

Not available

324

Husqvarna 601001500

FLATWASHER, .752 x 1.24 x .093 PL

$

$

Not available

326

Husqvarna 601001502

KEY, HI-PRO 606 .75 DIA x .187 WD

$

$

Not available

327

Husqvarna 601001503

WORM GEAR

$

$

Not available

330

Husqvarna 601001504

BEARING, SLEEVE .752 ID x .88 OD x .755

$

$

Not available

340

UNKNOWN

$

$

Not available

580

Husqvarna 601001505

IMPELLER ASSEMBLY
(Superseded to 601002484)

$

$

Not available
