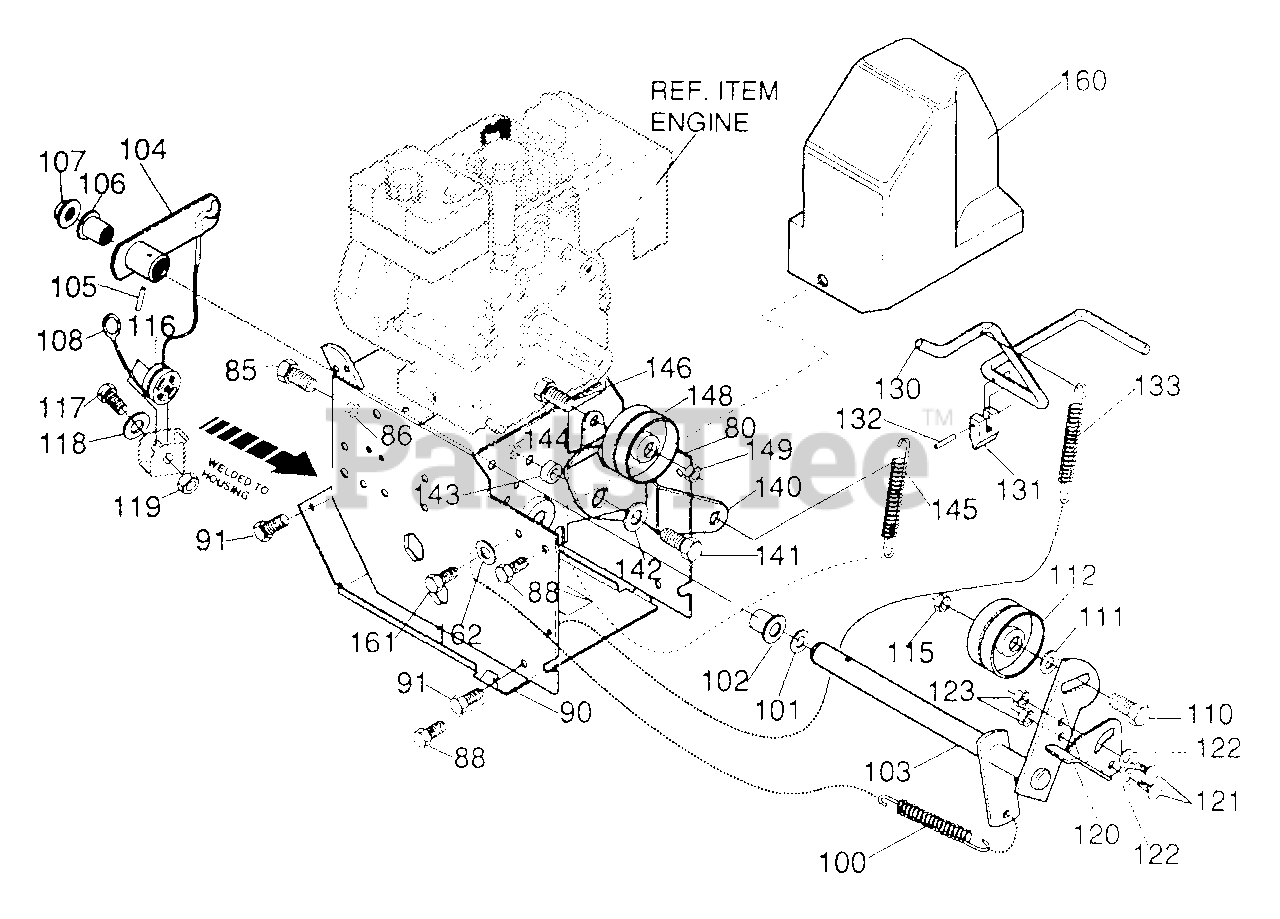

ST 523 - Husqvarna 23" Snow Blower (1995-01) Frame Components Parts Diagram

23" Snow Blower

Frame Components Parts Diagram

  • Title

80

Husqvarna 601001442

FRAME, ASSY ENGINE MT 13"

$

$

Not available

85

Husqvarna 601001443

SCREW, 5/16-241.00 HHC

$

$

Not available

86

Husqvarna 601000823

NUT, 5/16-24 HEXWDFLLK

$

$

Not available

88

Husqvarna 601000520

SCREW, 5/16-18 x .75 WAHHTAP

$

$

Not available

90

Husqvarna 601001444

COVER, BOTTOM WHEEL DR

$

$

Not available

91

Husqvarna 601001445

SCREW, 1/4-20 x .63 WAHHTAP

$

$

Not available

100

Husqvarna 601001089

IDLER SPRING

$

$

Not available

101

Husqvarna 601001446

FLATWASHER, .53 x 1.00 x .063

$

$

Not available

102

Husqvarna 601001447

BEARING, FLANGE

$

$

Not available

103

Husqvarna 601001448

ASSY, SHAFT AUG CLUTCH

$

$

Not available

104

Husqvarna 601001449

LEVER, ASSY AUGER CLUTCH CABLE

$

$

Not available

105

Husqvarna 601001451

PIN, SPRING. 165 DIA x .88LG HD

$

$

Not available

106

Husqvarna 601001447

BEARING, FLANGE

$

$

Not available

107

Husqvarna 601001452

NUT, 1/2 PUSHON

$

$

Not available

108

Husqvarna 601001453

CABLE, .205 EYE 6.125 LG

$

$

Not available

110

Husqvarna 601000033

SCREW, 3/8-16 x 1.25

$

$

Not available

111

Husqvarna 601000020

FLATWASHER, .406 x .81 x .065

$

$

Not available

112

Husqvarna 601001454

PULLEY, IDLER

$

$

Not available

115

Husqvarna 601001335

NUT, 3/8-16 HXCTRLKJAM

$

$

Not available

116

Husqvarna 601001455

SPOOL, CABLE AUGER CLUTCH

$

$

Not available

117

Husqvarna 601001456

SCREW, 1/4-20 x 1.75

$

$

Not available

118

Husqvarna 601000018

FLATWASHER, .281 x .63 x .065

$

$

Not available

119

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

120

Husqvarna 601001450

CAM, BRAKE ARM

$

$

Not available

121

Husqvarna 601001457

CARRIAGE BOLT, 1 /4-20 x .63

$

$

Not available

122

Husqvarna 601000019

FLATWASHER, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

123

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

130

Husqvarna 601001458

BRAKE ROD

$

$

Not available

131

Husqvarna 601001459

PAD, AUGER/IMPELLER BRAKE

$

$

Not available

132

Husqvarna 601001451

PIN, SPRING.165 DIA x .88 LONG HD

$

$

Not available

133

Husqvarna 601001460

SPRING, TENSION RETURN

$

$

Not available

140

Husqvarna 601001461

LEVER, IDLER ARM TRACTION

$

$

Not available

141

Husqvarna 601000073

SCREW, 5/16-18 x .75

$

$

Not available

142

Husqvarna 601001462

FLATWASHER,.328 x 1.38 x .075

$

$

Not available

143

Husqvarna 601001463

BUSHING, IDLER LEVER

$

$

Not available

144

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

145

Husqvarna 601001089

SPRING, IDLER TRACTION DRIVE

$

$

Not available

146

Husqvarna 601000033

SCREW, 3/8-160.25 HHC

$

$

Not available

148

Husqvarna 601001454

PULLEY, IDLER BFF 1.88 x .75

$

$

Not available

149

Husqvarna 601001335

NUT, 3/8-16 HEXCTRLKJAM

$

$

Not available

160

Husqvarna 601001465

COVER, BELT

$

$

Not available

161

Husqvarna 601000668

SCREW, 1 /4-20 x .50 WAHHTAP
(Superseded to 601001445)

$

$

Not available

162

Husqvarna 601000018

FLATWASHER, .281 x .63 x .065

$

$

Not available
