ST 523 - Husqvarna 23" Snow Blower (1995-01) Drive Components Parts Diagram

23" Snow Blower

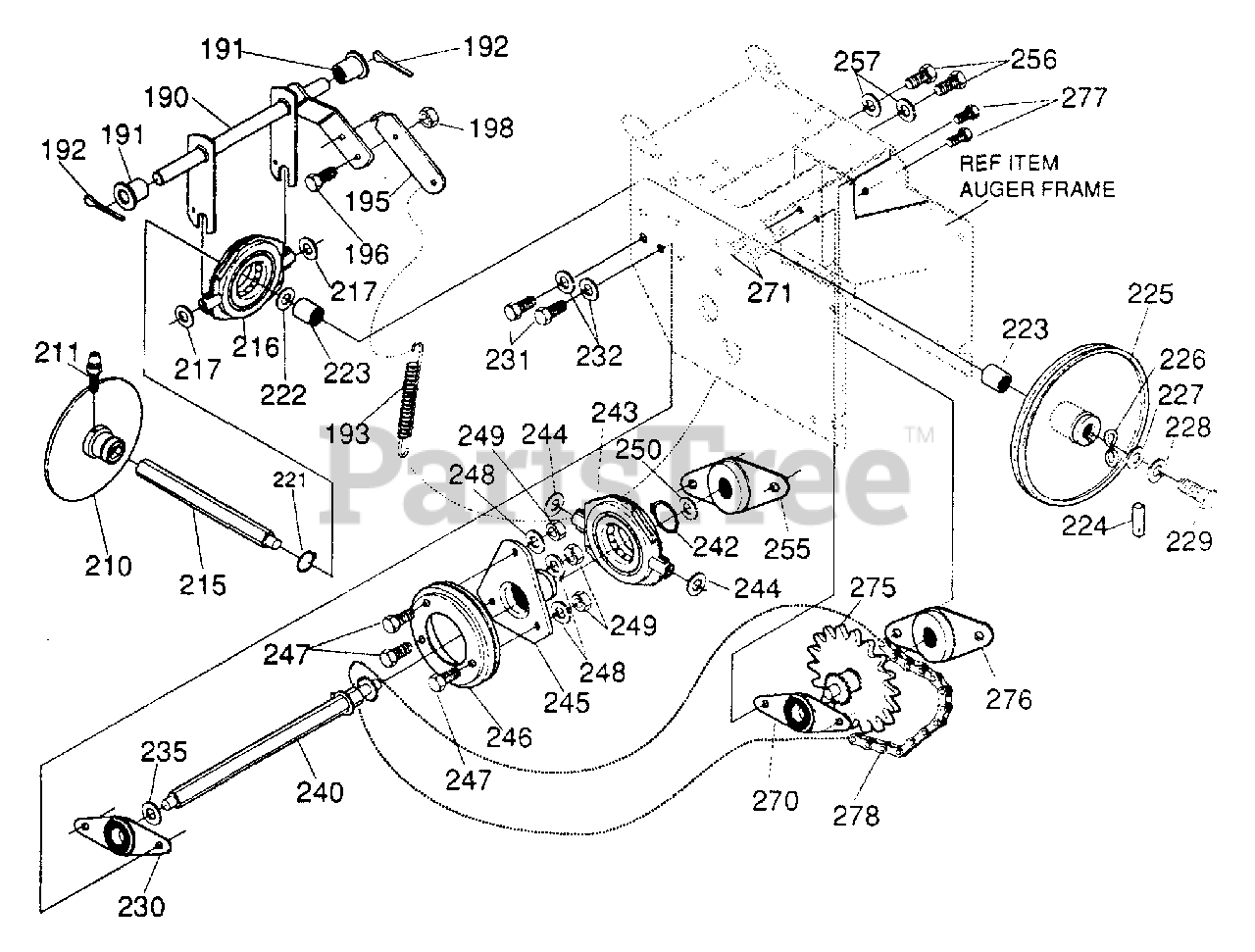

Drive Components Parts Diagram

  • Title

190

Husqvarna 601001466

LEVER, ASSY TRACT CLUTCH

$

$

Not available

191

Husqvarna 601001447

BEARING, FLANGED

$

$

Not available

192

Husqvarna 601000930

PIN, COTTER .125 DIA x 1.00 LG

$

$

Not available

193

Husqvarna 601001467

SPRING, RETURN

$

$

Not available

195

Husqvarna 601001468

LEVER, SPRING TRAC CL

$

$

Not available

196

Husqvarna 601001374

SCREW, 1/4-20 x .63

$

$

Not available

198

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

210

Husqvarna 601001469

DISC, ASSY FRICTION WHEEL
(Superseded to 601002031)

$

$

Not available

211

Husqvarna 601001470

ZERK, GREASE .25-28 x 1.12 LONG

$

$

Not available

215

Husqvarna 601001471

SHAFT, HEX TRACTION

$

$

Not available

216

Husqvarna 601001472

BEARING, TRUNION 1.25 ID

$

$

Not available

217

Husqvarna 601001473

FLATWASHER, .505 x 1.00 x .06

$

$

Not available

221

Husqvarna 601001474

RING, RETEX 1.16 x .05

$

$

Not available

222

Husqvarna 601001475

FLATWASHER, .680 x 1.12 x .060

$

$

Not available

223

Husqvarna 601000565

BEARING, BALL 6203-2AA

$

$

Not available

224

Husqvarna 601001476

KEY, SQUARE. 18 SQ x .63 LONG

$

$

Not available

225

Husqvarna 601001477

PULLEY, V31- 6.50 x .56

$

$

Not available

226

Husqvarna 601001478

WASHER, WAVE .675 x 1.00 x .020

$

$

Not available

227

Husqvarna 601000003

FLATWASHER, .281 x 1.00 x .063

$

$

Not available

228

Husqvarna 601000014

WASHER, SPTLK .263 x .49 x .07

$

$

Not available

229

Husqvarna 601000068

SCREW, 1/4-20 x .75

$

$

Not available

230

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

231

Husqvarna 601000519

SCREW, 5/16-18 x .50 WAHHTAP

$

$

Not available

232

Husqvarna 601000023

WASHER, SPTLK.328 x .60 x .09

$

$

Not available

235

Husqvarna 601001484

WASHER, SP .502 x .75 x .0605

$

$

Not available

240

Husqvarna 601001481

SHAFT & SPRKT, ASSY #40-8T
(Superseded to 601002475)

$

$

Not available

242

Husqvarna 601001474

RING, RETEX 1.16 x .05

$

$

Not available

243

Husqvarna 601001472

BEARING, TRUNION 1.25 ID

$

$

Not available

244

Husqvarna 601001473

FLATWASHER, .505 x 1.00 x .06

$

$

Not available

245

Husqvarna 601001482

HUB, FRICTION WHEEL

$

$

Not available

246

Husqvarna 601001483

WHEEL, FRICTION DISC 4.375 OD

$27.99

$

In Stock, Qty 20+

0

247

Husqvarna 601001334

SCREW, 1/4-20 X .63

$

$

Not available

248

Husqvarna 601000014

WASHER, SPTLK .26 X .50 x .06

$

$

Not available

249

Husqvarna 601000011

NUT, 1/4-20 REGHEX

$

$

Not available

250

Husqvarna 601001484

WASHER, SP .502 x .75 x .0605

$

$

Not available

255

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

256

Husqvarna 601000519

SCREW, 5/16-18 X .50

$

$

Not available

257

Husqvarna 601000023

WASHER, SPTLK .328 X .60 x .09

$

$

Not available

270

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

271

Husqvarna 601000519

SCREW, 5/16-18 X .50

$

$

Not available

275

Husqvarna 601001485

SPROCKET, ASSY 8T & 36T-41

$

$

Not available

276

Husqvarna 601001479

BEARING & RETAINER ASSY

$

$

Not available

277

Husqvarna 601000519

SCREW, 5/16-18 X .50

$

$

Not available

278

Husqvarna 601001486

CHAIN, ROLLER #42 x 40

$

$

Not available
