ST 523 - Husqvarna 23" Snow Blower (1995-01) Discharge Chute Parts Diagram

23" Snow Blower

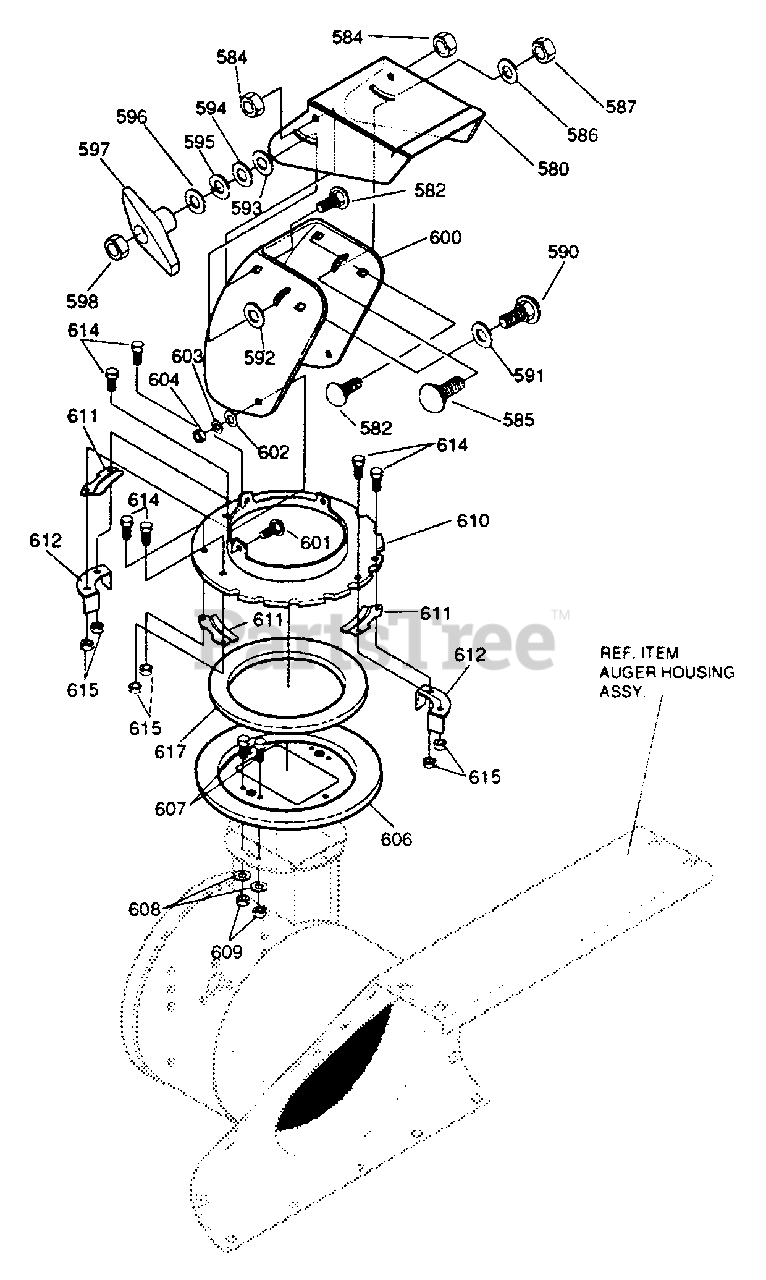

Discharge Chute Parts Diagram

  • Title
580

Husqvarna 601001523

CHUTE DEFLECTOR

$

$

Not available

582

Husqvarna 601001391

SCREW, 5/16-18 x .75 SLTRMA

$

$

Not available

584

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

585

Husqvarna 601001391

SCREW, 5/16-18 x .75 SLTRMA

$

$

Not available

586

Husqvarna 601001524

PLASTIC WASHER, .315 x .75 x .064

$

$

Not available

587

Husqvarna 601001464

NUT, 5/16-18 HEXNYL

$

$

Not available

590

Husqvarna 601000899

CARRIAGE BOLT, 5/16-180.00

$

$

Not available

591

Husqvarna 601000654

FLATWASHER, .469 x .92 x .065

$

$

Not available

592

Husqvarna 601000020

FLATWASHER, .406 x .81 x .065

$

$

Not available

593

Husqvarna 601001524

WASHER PLASTIC .315 x .75 x .064

$

$

Not available

594

Husqvarna 601000019

FLATWASHER,.344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

595

Husqvarna 601000023

WASHER, HVSPTLK

$

$

Not available

596

Husqvarna 601000019

FLATWASHER,.344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

597

Husqvarna 601000684

KNOB, T 2BLADE W-5/16-18 NUT
(Superseded to 601400069)

$14.99

$

In Stock, only 1 left!

0

598

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

600

Husqvarna 601001525

CHUTE, LOWER

$

$

Not available

601

Husqvarna 601001411

CARR. BOLT, 5/16-18 x .75

$

$

Not available

602

Husqvarna 601000019

FLATWASHER, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

603

Husqvarna 601000023

WASHER, HVSPTLK

$

$

Not available

604

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

606

Husqvarna 601001526

COLLAR, CHUTE ADAPT

$

$

Not available

607

Husqvarna 601000068

SCREW, 1/4-20 x .75

$

$

Not available

608

Husqvarna 601000018

FLATWASHER, .281 x.63 x .065

$

$

Not available

609

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

610

Husqvarna 601001527

FLANGE CHUTE

$

$

Not available

611

Husqvarna 601001528

CLIP, CHUTE RET.

$

$

Not available

612

Husqvarna 601001529

STOP, CHUTE LONG

$

$

Not available

614

Husqvarna 601001530

SCREW, #8-32 x .50 WAHHMA

$

$

Not available

615

Husqvarna 601001531

NUT, #8-32 HEXCTRLK

$

$

Not available

617

Husqvarna 601001532

RING, FLANGED CHUTE ROT.

$

$

Not available
