ST 523 - Husqvarna 23" Snow Blower (1995-01) Control Panel Parts Diagram

23" Snow Blower

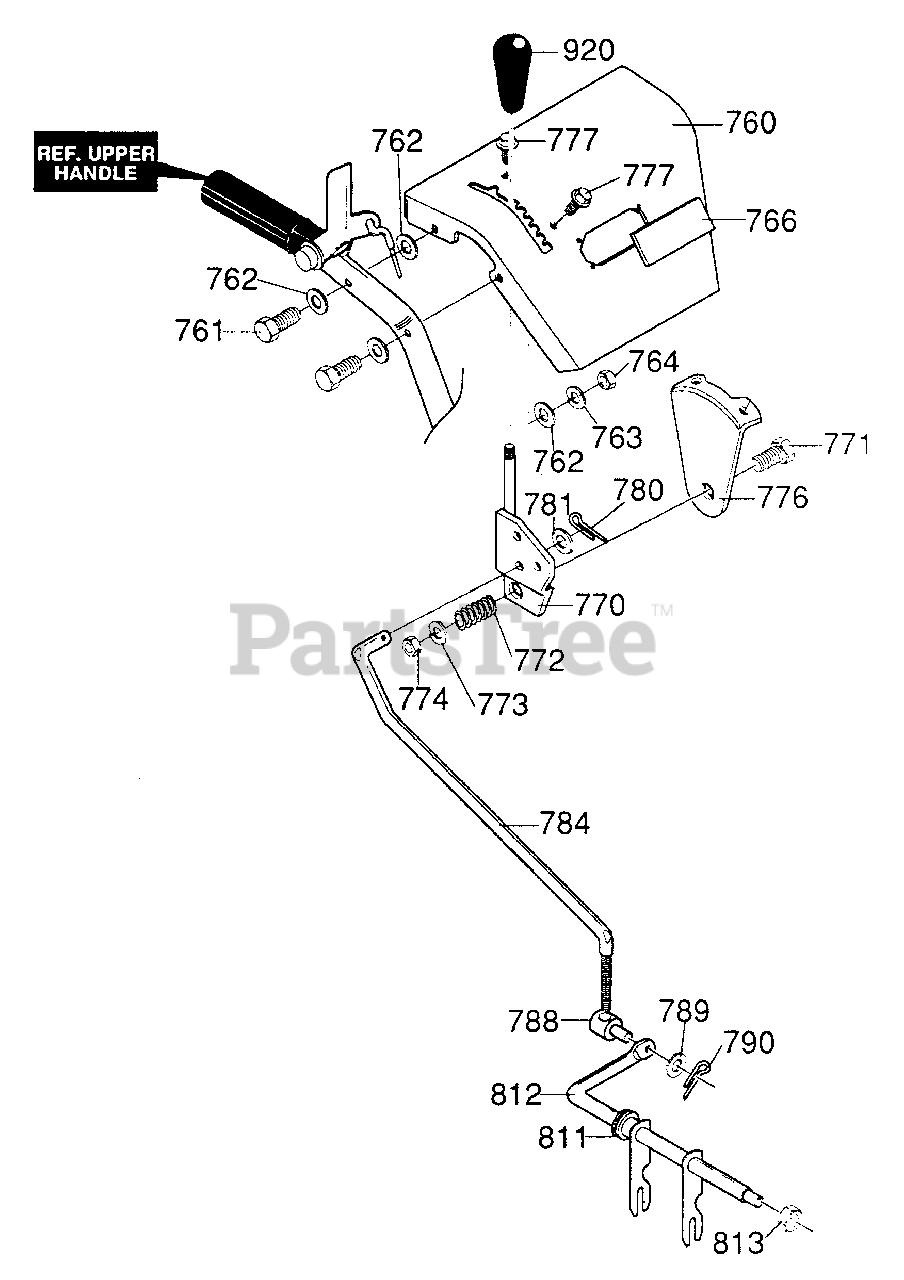

Control Panel Parts Diagram

  • Title

760

Husqvarna 601001556

PANEL, CONTROL BS W/LGT

$

$

Not available

761

Husqvarna 601001557

SCREW, 5/16-18 x 1.75 HHC

$

$

Not available

762

Husqvarna 601000019

FLATWASHER, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

763

Husqvarna 601000023

WASHER, HVSPTLK .328 x .60 x .09

$

$

Not available

764

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

766

Husqvarna 601001558

PLATE, PANEL

$

$

Not available

770

Husqvarna 601001559

HANDLE, ASSY SPEED CONTROL

$

$

Not available

771

Husqvarna 601001555

SCREW, 3/8-16 x 2.00

$

$

Not available

772

Husqvarna 601001560

SPRING

$

$

Not available

773

Husqvarna 601000020

FLATWASHER, .406 x .81 x.065

$

$

Not available

774

Husqvarna 601000653

NUT, 3/8-16 HEXNYL

$

$

Not available

776

Husqvarna 601001561

BRACKET, SPEED CONTROL

$

$

Not available

777

Husqvarna 601000520

SCREW, 5/16-18 x .75 WAHHTAP

$

$

Not available

780

Husqvarna 601000025

PIN, COTTER. 090 DIA x .75LG

$

$

Not available

781

Husqvarna 601000019

FLATWASHER, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

784

Husqvarna 601001562

ROD, SPEED CONTROL

$

$

Not available

788

Husqvarna 601001563

NUT, TRUNION 5/16-24

$

$

Not available

789

Husqvarna 601000019

FLATWASHER, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

790

Husqvarna 601000025

PIN, COTTER .090 DIA x .75 LONG

$

$

Not available

811

Husqvarna 601001564

BEARING, FL .500 ID x .88 OD x .31

$

$

Not available

812

Husqvarna 601001565

ROD, ASM SPEED CONSOLE

$

$

Not available

813

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

920

Husqvarna 601001566

KNOB, 3/8-16 x .75

$

$

Not available
