ST 523 - Husqvarna 23" Snow Blower (1995-01) Chute Control Rod Parts Diagram

23" Snow Blower

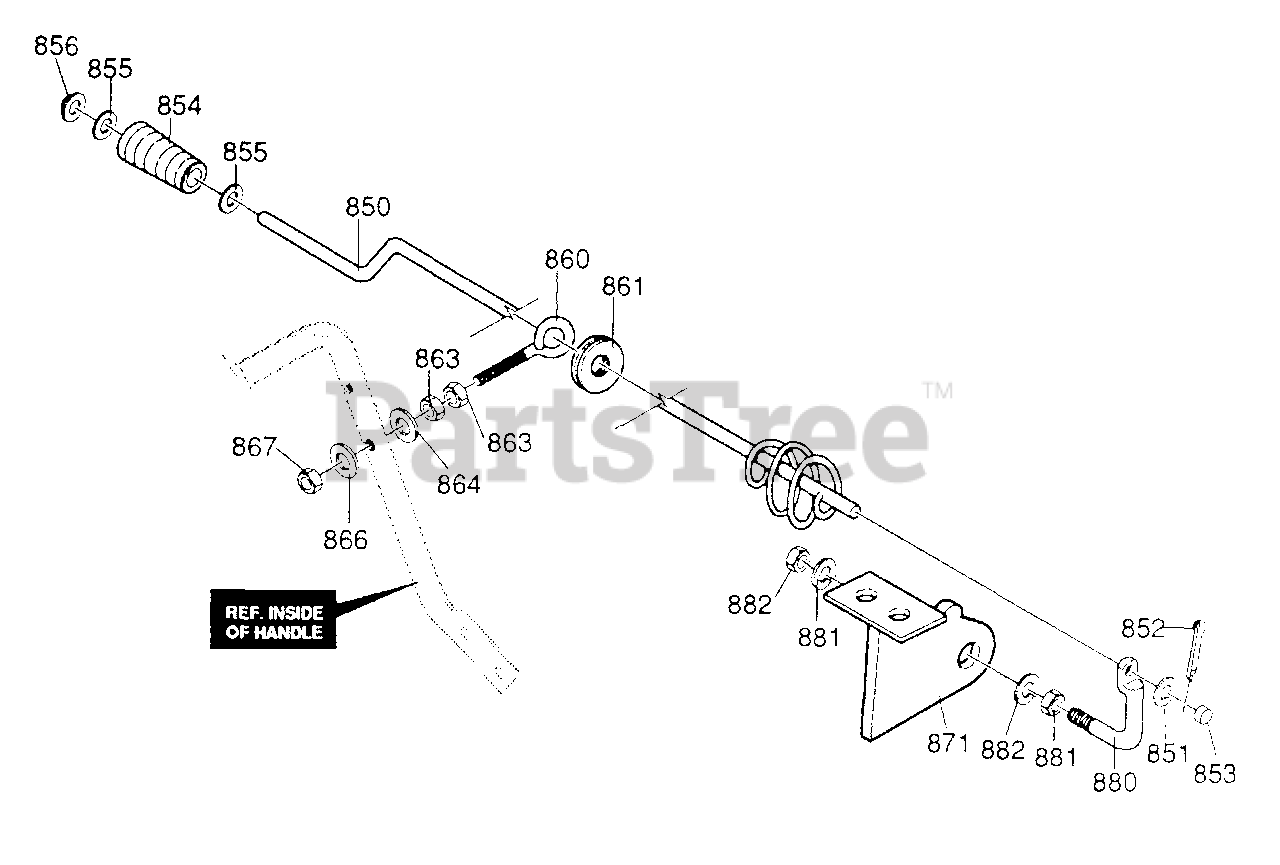

Chute Control Rod Parts Diagram

  • Title
850

Husqvarna 601001567

CRANK, ASSY CHUTE

$

$

Not available

851

Husqvarna 601000020

FLATWASHER, .406 x .81 x .065

$

$

Not available

852

Husqvarna 601001403

PIN, COTTER .094 DIA x 1.00 LONG

$

$

Not available

853

Husqvarna 601001568

CAP, PLASTIC, 3/8 ID

$

$

Not available

854

Husqvarna 601001569

KNOB, SLEEVE

$

$

Not available

855

Husqvarna 601000020

FLATWASHER, .406 x .81 x .065

$

$

Not available

856

Husqvarna 601001291

NUT, PUSH ON 3/8"

$

$

Not available

860

Husqvarna 601001570

BOLT, EYE 3/8-16 x 5.00 .63 ID

$

$

Not available

861

Husqvarna 601001408

GROMMET, EYE BOLT .40 ID x .435WD

$

$

Not available

863

Husqvarna 601001409

NUT, 3/8-16 HEXJAM

$

$

Not available

864

Husqvarna 601000020

FLATWASHER, .406 x .81 x.065

$

$

Not available

866

Husqvarna 601000020

FLATWASHER, .406 x .81 x.065

$

$

Not available

867

Husqvarna 601000653

NUT, 3/8-16 HEXNYL

$

$

Not available

871

Husqvarna 601001571

PLATE, ASSY MTG STL CHUTE

$

$

Not available

880

Husqvarna 601001572

ROD, CHUTE CONT 420T

$

$

Not available

881

Husqvarna 601001573

NUT, 1/2-20 HXJAM

$

$

Not available

882

Husqvarna 601001574

WASHER, REGSPTLK .523 x .87 x .14

$

$

Not available
