ST 523 - Husqvarna 23" Snow Blower (1995-01) Auger Housing Parts Diagram

23" Snow Blower

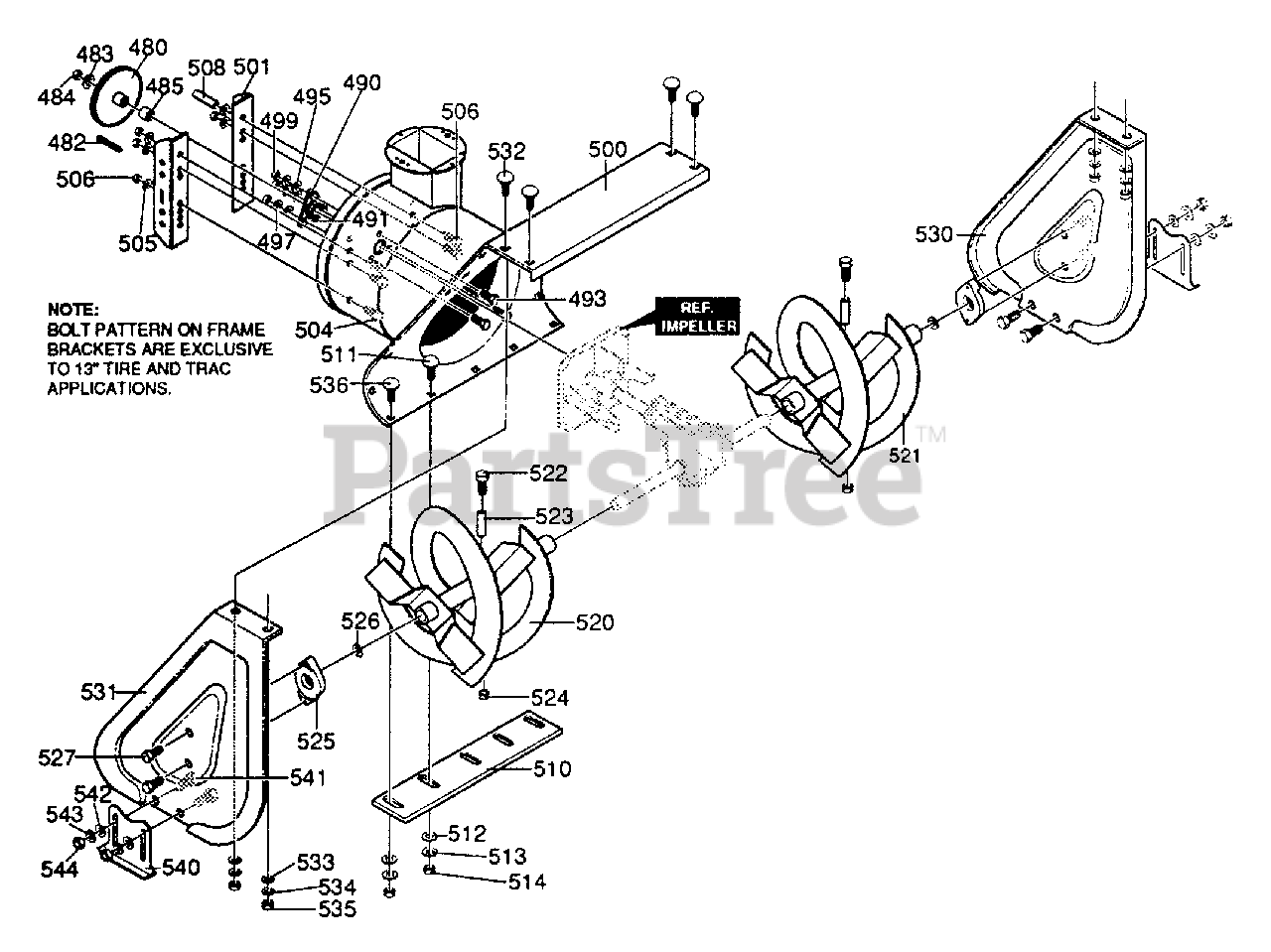

Auger Housing Parts Diagram

  • Title

480

Husqvarna 601001506

PULLEY, V41- 6.50 OD

$

$

Not available

482

Husqvarna 601001507

KEY, SQUARE .18 SQ x .88 LG

$

$

Not available

483

Husqvarna 601001446

FLATWASHER, .53 x 1.00 x .063

$

$

Not available

484

Husqvarna 601000107

NUT, 1/2-20 REGHXCTRLK

$

$

Not available

485

Husqvarna 601001508

SPACER, SLEV .676 x 1.00 x .751

$

$

Not available

490

Husqvarna 601001509

RETAINER, BALL BRNG

$

$

Not available

491

Husqvarna 601000565

BRNG, BALL 6203-2AA(SEALS)-C3

$

$

Not available

493

Husqvarna 601000073

SCREW, 5/16-18x.88 HHC

$

$

Not available

495

Husqvarna 601000019

FLATWASHER, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

497

Husqvarna 601000023

WASHER, HVSPTLK .328 x .60 x .09

$

$

Not available

499

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

500

Husqvarna 601001510

HOUSING, ASSY

$

$

Not available

501

Husqvarna 601001511

BRACKET & NUTS ASSY

$

$

Not available

504

Husqvarna 601001512

SCREW 3/8-16 x .75

$

$

Not available

505

Husqvarna 601000015

WASHER .393 x .68 x .10

$

$

Not available

506

Husqvarna 601000060

NUT, 3/8-16 REGHEXCTRLK
(Superseded to 601002407)

$

$

Not available

508

Husqvarna 601001513

HUB, BRAKE ARM

$

$

Not available

510

Husqvarna 601001514

BLADE, SCRAPER, MF 24"

$

$

Not available

511

Husqvarna 601001411

BOLT, 5/16-18 x .75 CARRLN

$

$

Not available

512

Husqvarna 601000019

FLATWASHER, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

513

Husqvarna 601000023

WASHER, HVSPTLK .328 x .60 x .09

$

$

Not available

514

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

520

Husqvarna 601001515

AUGER, ASSY MF LH 22"

$

$

Not available

521

Husqvarna 601001516

AUGER, ASSY MF RH 22"

$

$

Not available

522

Husqvarna 601001456

SCREW, 1/4-20 x 1.75 HHCFT

$

$

Not available

523

Husqvarna 601001517

SPACER, SLEV .250 x .47 x .20

$5.99

$

In Stock, Qty 6

0

524

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

525

Husqvarna 601001518

AUGER SHAFT BEARING

$

$

Not available

526

Husqvarna 601001519

FLATWASHER, 1.005 x 1.31 x .035

$

$

Not available

527

Husqvarna 601000520

SCREW, 5/16-18 x .75 WAHHTAP

$

$

Not available

530

Husqvarna 601001520

PLATE, AUGER HSNG END, LH

$

$

Not available

531

Husqvarna 601001521

PLATE, AUGER HSNG END, RH

$

$

Not available

532

Husqvarna 601001411

BOLT, 5/16-18 x .75 CARRLN

$

$

Not available

533

Husqvarna 601000019

FLATWASHER, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

534

Husqvarna 601000023

WASHER, HVSPTLK .328 x .60 x .09

$

$

Not available

535

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

536

Husqvarna 601000899

BOLT, 5/16-18 x 1.00 CARRLN

$

$

Not available

540

Husqvarna 601001522

SKID, HEIGHT ADJUST
(Superseded to 601002428)

$

$

Not available

541

Husqvarna 601001411

BOLT, 5/16-18 x .75 CARRLNGR2

$

$

Not available

542

Husqvarna 601000019

FLATWASHER, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

543

Husqvarna 601000023

WASHER, HVSPTLK .328 x .60 x .09

$

$

Not available

544

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available
