ST 522 H - Husqvarna 22" Snow Blower (1998-01) Gear Case Assembly Parts Diagram

22" Snow Blower

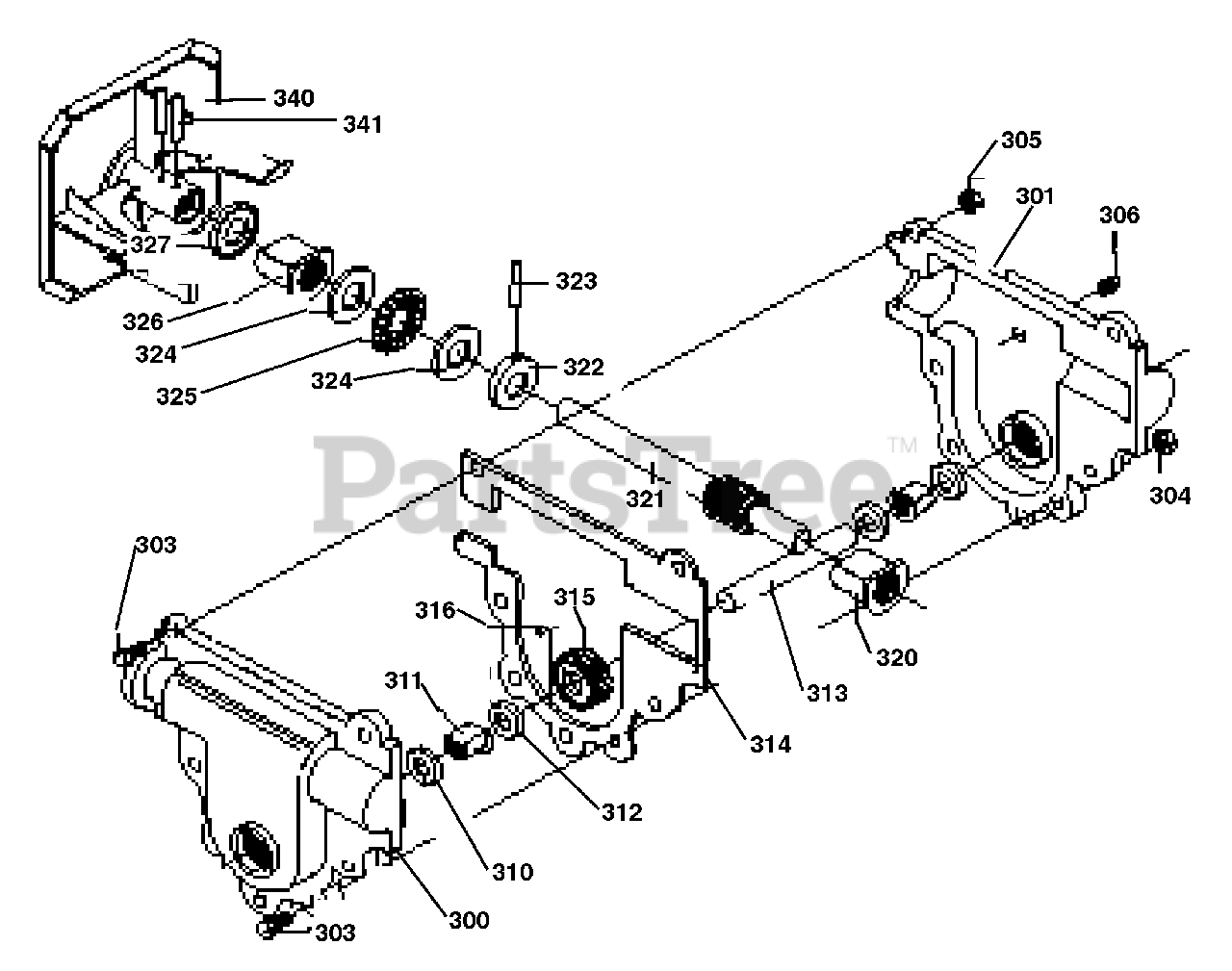

Gear Case Assembly Parts Diagram

  • Title

300

Husqvarna 601002103

Gear Case, RH

$

$

Not available

301

Husqvarna 601002104

Gear Case, LH

$

$

Not available

303

Husqvarna 601002345

Screw, 1/4-20 x .75

$

$

Not available

304

Husqvarna 601000827

Nut, 1/4-20

$4.99

$

In Stock, only 4 left!

0

305

Husqvarna 601001790

Nut, 1/4-20 Hexkeps

$

$

Not available

306

Husqvarna 601002105

Screw, 3/8-16 x .50

$

$

Not available

310

Husqvarna 601001866

Seal, Oil

$

$

Not available

311

Husqvarna 601002106

Bearing, Flange

$

$

Not available

312

Husqvarna 601002326

Flatwasher, .752 x 1.24 x .093
(Superseded to 601001500)

$

$

Not available

313

Husqvarna 601002107

Shaft, Auger Output

$

$

Not available

314

Husqvarna 601002108

Gasket, Gear Case

$

$

Not available

315

Husqvarna 601002109

Gear, Worm

$

$

Not available

316

Husqvarna 601002110

Key, Woodruff

$

$

Not available

320

Husqvarna 601000567

Bearing, Flange

$

$

Not available

321

Husqvarna 601002111

Shaft, Worm Imp Input

$

$

Not available

322

Husqvarna 601002112

Collar, Thrust .753 x 1.24 x .50

$

$

Not available

323

Husqvarna 601001054

Pin, Spring

$

$

Not available

324

Husqvarna 601002326

Flatwasher, .752 x 1.24 x .093
(Superseded to 601001500)

$

$

Not available

325

Husqvarna 601001501

Bearing, Roll

$

$

Not available

326

Husqvarna 601002106

Bearing, Flange

$

$

Not available

327

Husqvarna 601001866

Seal, Oil

$

$

Not available

340

Husqvarna 601002346

Impel, Assy

$

$

Not available

341

Husqvarna 601001054

Spring Pin

$

$

Not available
