ST 522 H - Husqvarna 22" Snow Blower (1996-10) Handle Assembly Parts Diagram

22" Snow Blower

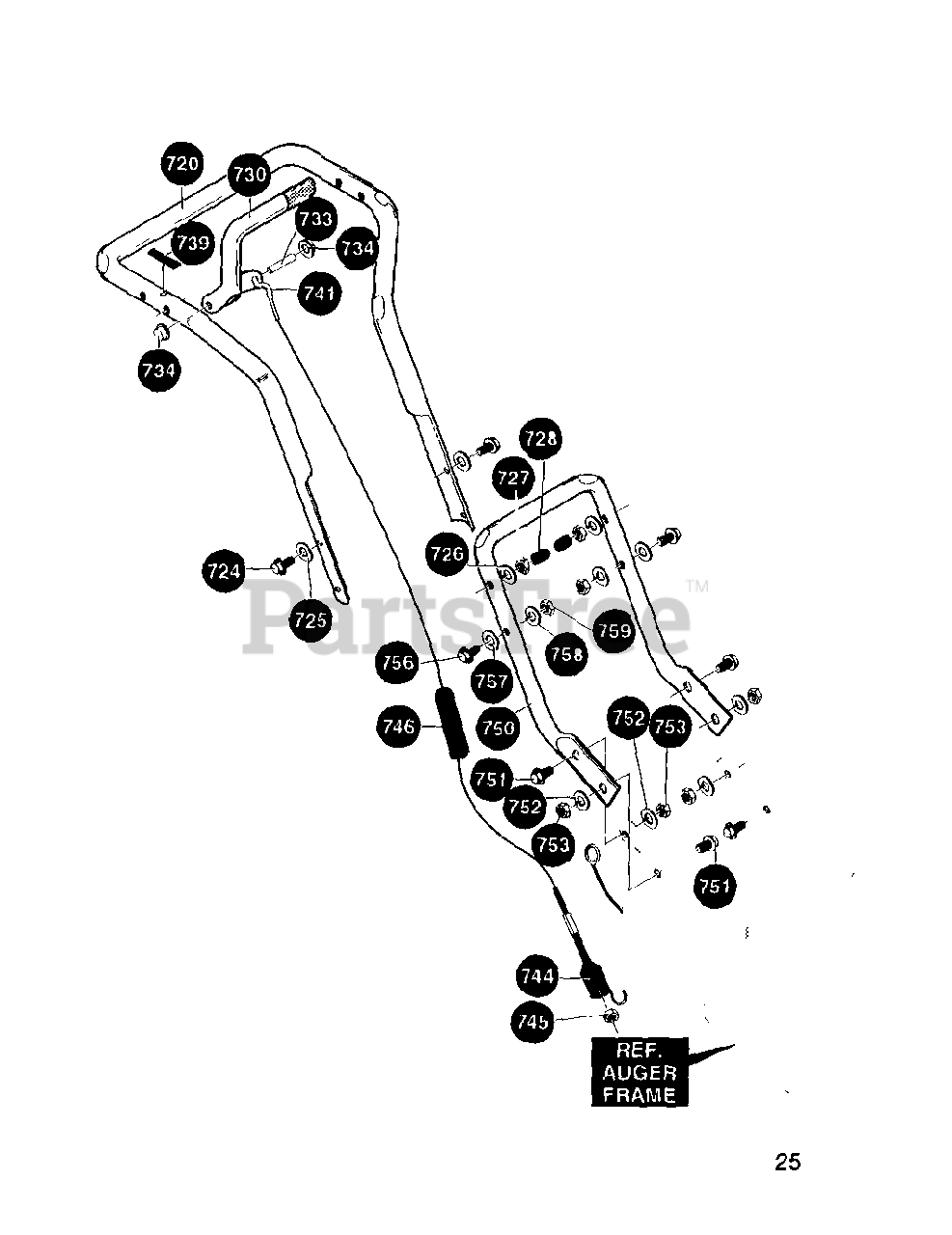

Handle Assembly Parts Diagram

  • Title

720

Husqvarna 601002133

Handle, Upper

$

$

Not available

724

Husqvarna 601002134

Screw, 5/16-18 x 2.75

$

$

Not available

725

Husqvarna 601000019

Flatwasher, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

726

Husqvarna 601000023

Washer, .328 x .60 x .09

$

$

Not available

727

Husqvarna 601000012

Nut, 5/16-18

$

$

Not available

728

Husqvarna 601002135

Stop, Red Plastic

$

$

Not available

730

Husqvarna 601002136

Kit for Handle, Assy RH

$

$

Not available

733

Husqvarna 601001549

Pin, Pivot

$

$

Not available

734

Husqvarna 601000516

Nut, Push on Cap

$

$

Not available

739

Husqvarna 601001550

Bumper, Rect

$

$

Not available

741

Husqvarna 601002137

Cable, Clutch

$

$

Not available

744

Husqvarna 601001553

Spring, Auger Clutch

$

$

Not available

745

Husqvarna 601000062

Nut, 1/4-20
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

746

Husqvarna 601001395

Boot, Clutch Spring

$

$

Not available

750

Husqvarna 601002138

Handle, Lower

$

$

Not available

751

Husqvarna 601000074

Screw, 5/16-18 x 1.00

$

$

Not available

752

Husqvarna 601000023

Washer, .328 x .60 x .09

$

$

Not available

753

Husqvarna 601000012

Nut, 5/16-18 Reghex

$

$

Not available

756

Husqvarna 601002139

Screw, 5/16-18 x 2.00

$

$

Not available

757

Husqvarna 601000019

Flatwasher, .344 x .69 x .065

$3.49

$

In Stock, only 1 left!

0

758

Husqvarna 601000023

Washer, .328 x .60 x .09

$

$

Not available

759

Husqvarna 601000012

Nut, 5/16-18 Reghex

$

$

Not available
