ST 522 H (601002327) - Husqvarna 22" Snow Blower (1998-01) GEAR CASE Parts Diagram

22" Snow Blower

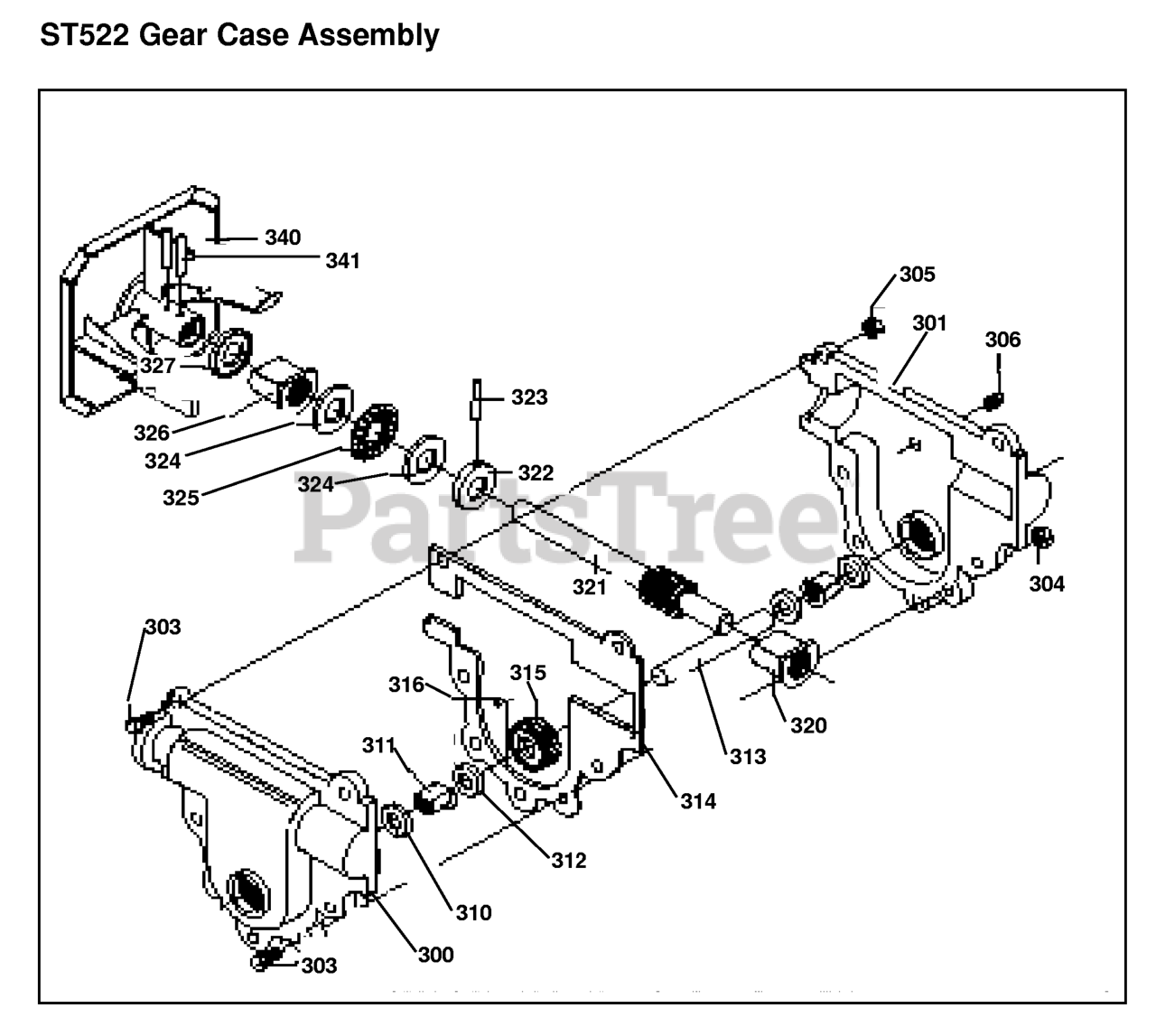

GEAR CASE Parts Diagram

  • Title

326

Husqvarna 601002106

BEARING, FLANGE

$

$

Not available

340

Husqvarna 601002346

IMPELLER, ASSY

$

$

Not available

310

Husqvarna 601001866

SEAL, OIL, .75 X 1.19 X .25

$

$

Not available

316

Husqvarna 601002110

KEY, WOODRUFF

$

$

Not available

315

Husqvarna 601002109

GEAR, WORM

$

$

Not available

300

Husqvarna 601002103

GEAR CASE, RH

$

$

Not available

304

Husqvarna 601000827

NUT 1/4-20

$4.99

$

In Stock, only 4 left!

0

325

Husqvarna 601001501

ROLLER BEARING

$

$

Not available

306

Husqvarna 601002105

SCREW, 3/8-16X.50

$

$

Not available

323

Husqvarna 601001054

PIN, SPRING

$

$

Not available

320

Husqvarna 601000567

BRNG, FL .502IDX .752OD

$

$

Not available

305

Husqvarna 601001790

NUT, 1/4-20 HEX KEPS

$

$

Not available

301

Husqvarna 601002104

GEAR CASE, LH

$

$

Not available

321

Husqvarna 601002111

SHAFT, WORM IMP INPUT

$

$

Not available

303

Husqvarna 601002345

SCREW, 1/4-20 X .75

$

$

Not available

322

Husqvarna 601002112

COLLAR, THRUST

$

$

Not available

313

Husqvarna 601002107

Shaft, Auger Output

$

$

Not available

341

Husqvarna 601001054

PIN, SPRING

$

$

Not available

311

Husqvarna 601002106

BEARING, FLANGE

$

$

Not available

312

Husqvarna 601002326

FLATWASHER
(Superseded to 601001500)

$

$

Not available

314

Husqvarna 601002108

GASKET, GEAR CASE

$

$

Not available

327

Husqvarna 601001866

SEAL, OIL, .75 X 1.19 X .25

$

$

Not available

324

Husqvarna 601002326

FLATWASHER
(Superseded to 601001500)

$

$

Not available
