ST 522 H (601002327) - Husqvarna 22" Snow Blower (1998-01) FRAME Parts Diagram

22" Snow Blower

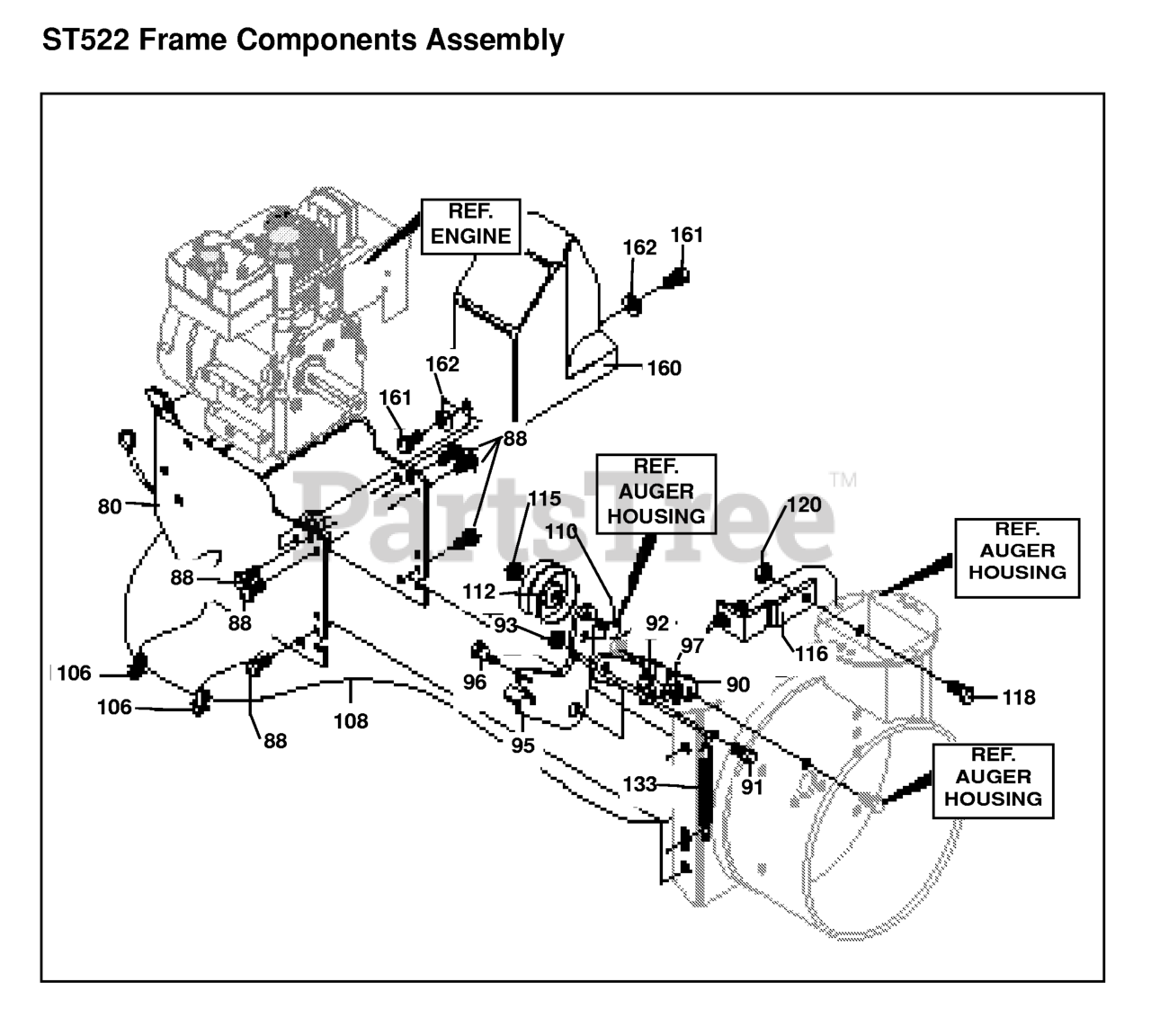

FRAME Parts Diagram

  • Title
120

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

160

Husqvarna 601001465

COVER, BELT

$

$

Not available

108

Husqvarna 601002421

CABLE
(Superseded to 601002473)

$

$

Not available

80

Husqvarna 601002100

FRAME ASSEMBLY

$

$

Not available

$

$

Not available

90

Husqvarna 601002347

PLATE, CLU. ARM MT

$

$

Not available

106

Husqvarna 601002027

CLIP, CABLE TINN

$

$

Not available

$

$

Not available

110

Husqvarna 601001740

SCREW, 3/8-16 X 1.25

$

$

Not available

133

$

$

Not available

$

$

Not available

162

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

88

Husqvarna 601000520

SCREW, 5/16-18X .75 WAHHT

$

$

Not available

93

Husqvarna 601002297

NUT 3/8-16
(Superseded to 601002472)

$

$

Not available

96

Husqvarna 601002349

Bolt, .497 x .138 3/8-16

$

$

Not available

92

Husqvarna 601000015

WASHER, REGSPTLK.393X.68X

$

$

Not available

95

Husqvarna 601002348

ARM-CLUTCH CABLE

$

$

Not available

118

Husqvarna 601002016

Screw, 3/8-16 x 1.25

$

$

Not available

97

Husqvarna 601000060

NUT, 3/8-16 REGHXCTRLK
(Superseded to 601002407)

$

$

Not available

116

Husqvarna 601002102

Bracket, Compact Cable

$

$

Not available

112

Husqvarna 601001454

IDLER PULLEY

$

$

Not available
