ST 521 M - Husqvarna 21" Snow Blower (1998-01) Engine Assembly Parts Diagram

21" Snow Blower

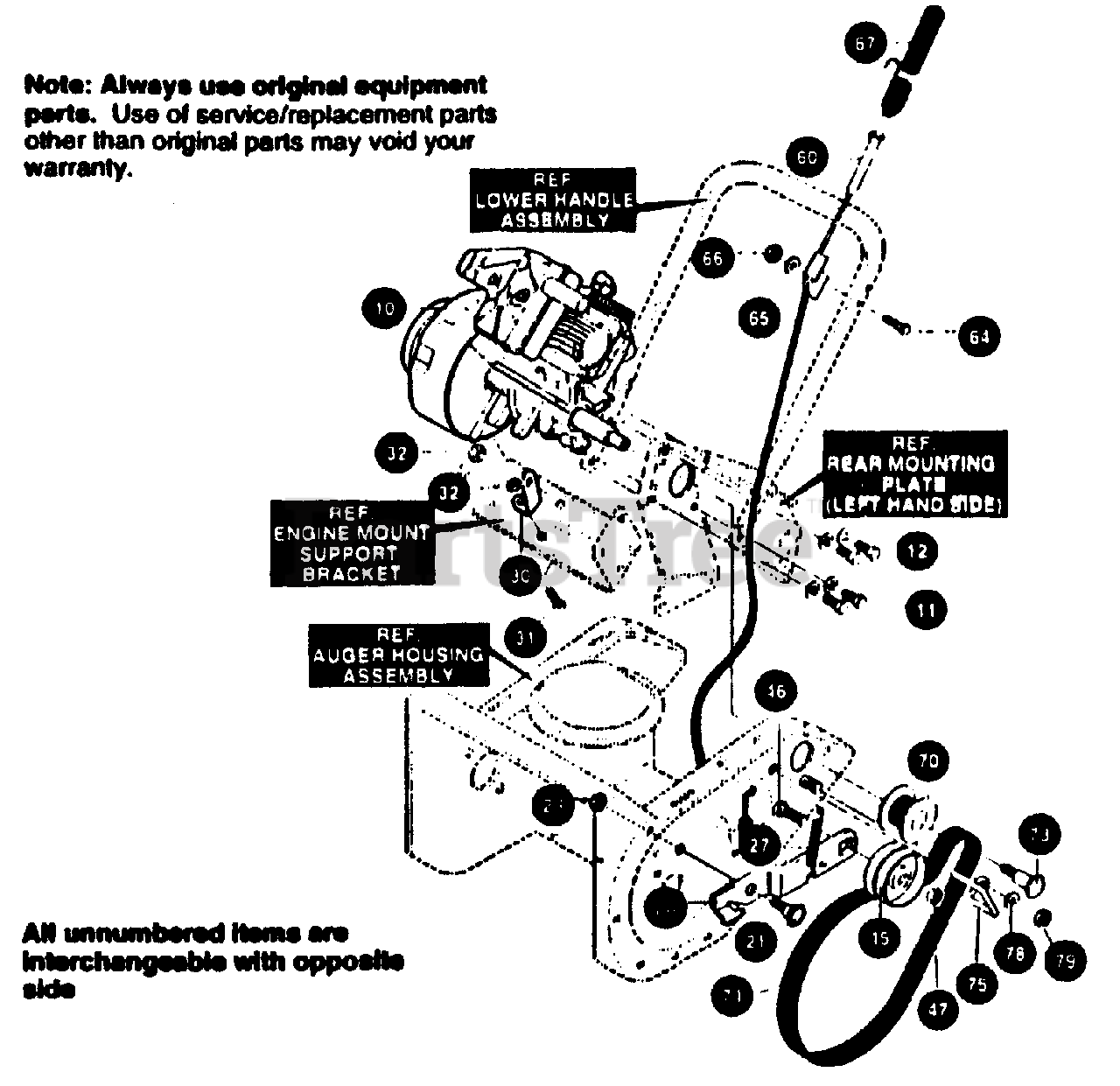

Engine Assembly Parts Diagram

  • Title

10

ENGINE 5.0HP

Note: (SEE ENGINE MANUAL)

$

$

Not available

11

Husqvarna 601000073

SCREW, 5/16-18X .75

$

$

Not available

12

Husqvarna 601000023

WASHER, HVSPTLK .328X.60X.09

$

$

Not available

20

Husqvarna 601002156

BRKT, IDLER ARM

$

$

Not available

21

Husqvarna 601001329

BOLT, 5/16-18

$

$

Not available

27

Husqvarna 601002060

SPRING, IDLER BRAKE

$

$

Not available

29

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$10.99

$

In Stock, only 2 left!

0

30

Husqvarna 601002157

SUPPORT, ENGINE

$

$

Not available

31

Husqvarna 601001640

SCREW, 5/16-18X .50

$

$

Not available

32

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$10.99

$

In Stock, only 2 left!

0

45

Husqvarna 601001333

PULLEY, IDLER

$

$

Not available

46

Husqvarna 601000551

BOLT, 3/8-16X1.50

$

$

Not available

47

Husqvarna 601001335

NUT, 3/8-16 HXCTRLKJAM

$

$

Not available

60

Husqvarna 601001757

CABLE, DRIVE CONTROL

$

$

Not available

64

Husqvarna 601001758

SCREW, 1/4-20X1.50

$

$

Not available

65

Husqvarna 601000018

WASHER, FLAT .281X .63X.065

$

$

Not available

66

Husqvarna 601002318

NUT, 1/4-20 REGHEXCTRLK

$14.99

$

In Stock, only 1 left!

0

67

Husqvarna 601001759

COVER, CABLE SPRING

$

$

Not available

70

Husqvarna 601002158

PULLEY, 10-RIB POLY-V

$

$

Not available

73

Husqvarna 601002080

BOLT, SHOULDER .625 X .282

$

$

Not available

74

Husqvarna 601002081

BELT, 10 RIB POLY-V

$

$

Not available

75

Husqvarna 601002082

GUIDE, BELT
(Superseded to 601400059)

$

$

Not available

78

Husqvarna 601002159

WASHER, FLAT .312X .73X.065

$

$

Not available

79

Husqvarna 601000059

NUT, 5/16-18 REGHEXCTRLK

$10.99

$

In Stock, only 2 left!

0

Husqvarna 601002417

OWNER'S MANUAL ENG/FR

$

$

Not available
