ST 521 M - Husqvarna 21" Snow Blower (1997-10) Handle Assembly Parts Diagram

21" Snow Blower

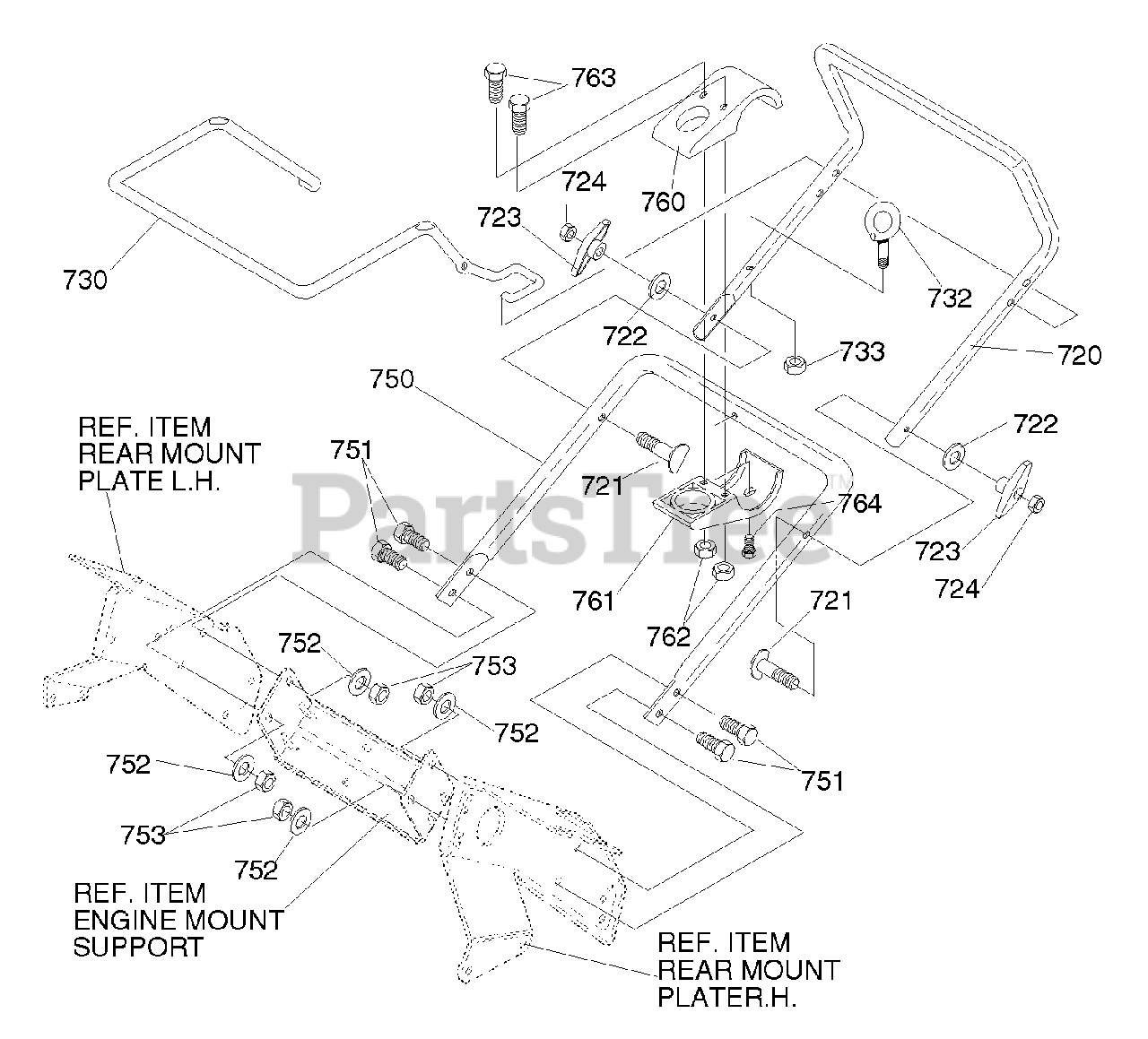

Handle Assembly Parts Diagram

  • Title
720

Husqvarna 601002149

HANDLE & FOAM ASSY

$

$

Not available

721

Husqvarna 601002150

BOLT, 5/16-18 X 2.00 CUH

$

$

Not available

722

Husqvarna 601001401

FORMED WASHER

$

$

Not available

723

Husqvarna 601000684

KNOB, T 2/BLADE
(Superseded to 601400069)

$14.99

$

In Stock, only 1 left!

0

724

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

730

Husqvarna 601001822

CONTROL DRIVE BAR

$

$

Not available

732

Husqvarna 601002151

ROPE GUIDE

$

$

Not available

733

Husqvarna 601000059

NUT, 5/16-18 RGHXCTRLK

$6.99

$

In Stock, only 2 left!

0

750

Husqvarna 601001823

LOWER HANDLE

$

$

Not available

751

Husqvarna 601000073

SCREW 5/16-18 X .75

$

$

Not available

752

Husqvarna 601000019

FLATWASHER

$3.49

$

In Stock, only 1 left!

0

753

Husqvarna 601000059

NUT, 5/16-18 REGHXCTRLK

$6.99

$

In Stock, only 2 left!

0

760

Husqvarna 601001824

BRKT, HALF CHUTE CRANK

$

$

Not available

761

Husqvarna 601001825

BRKT, HALF CHUTE CRANK

$4.99

$

Usually ships in 3-10 days

0

762

Husqvarna 601001642

NUT #10-24 HEXNYLLK

$

$

Not available

763

Husqvarna 601001826

SCREW #10-24 X 1.00

$

$

Not available

764

Husqvarna 601001445

SCREW 1/4-20 X .63 TAP.

$

$

Not available
