ST 521 M - Husqvarna 21" Snow Blower (1997-10) Chute Assembly Parts Diagram

21" Snow Blower

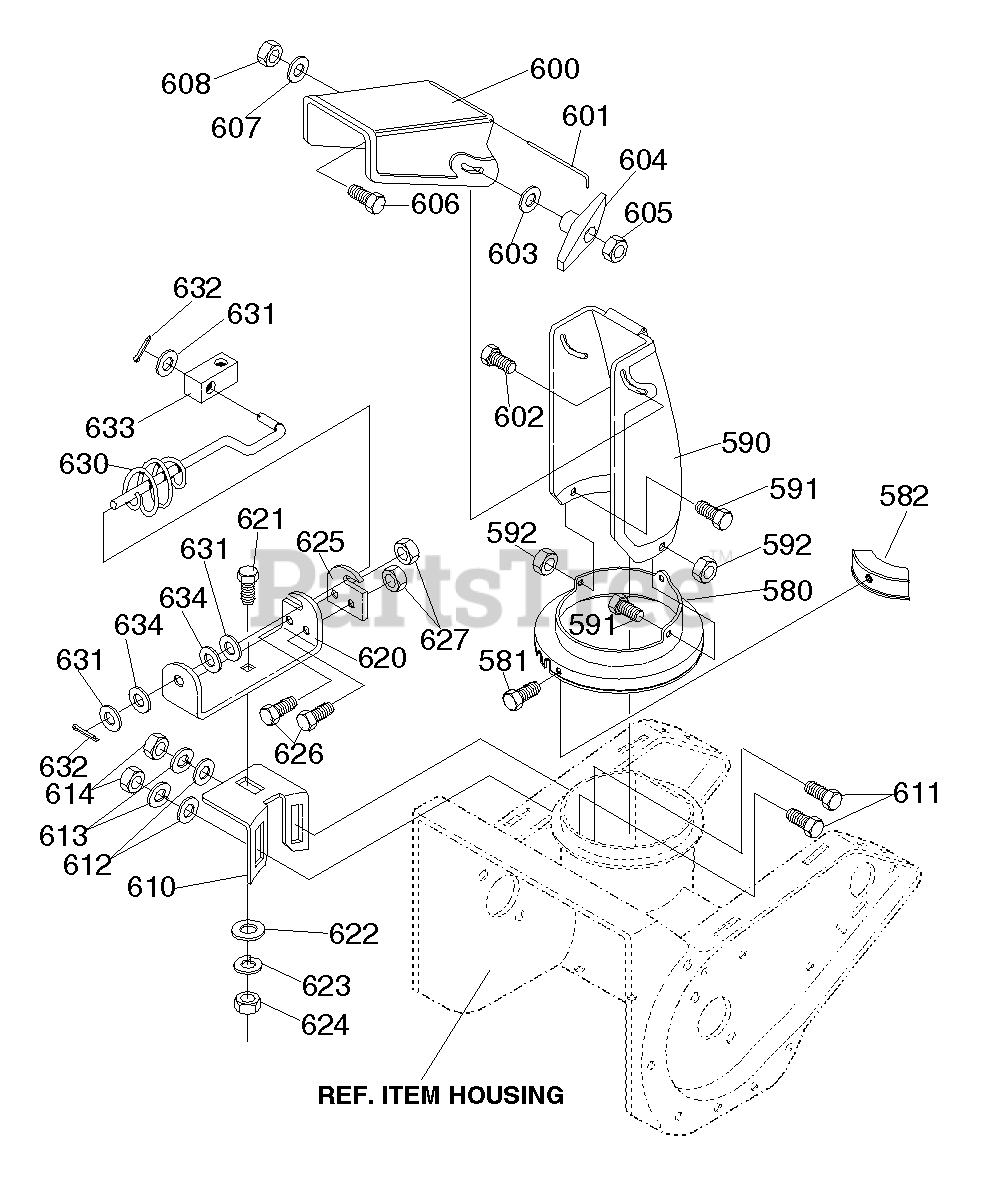

Chute Assembly Parts Diagram

  • Title
580

Husqvarna 601001801

LOWER CHUTE RING

$31.99

$

In Stock, only 1 left!

0

581

Husqvarna 601001802

SCREW 1/4-14 X.63

$

$

Not available

582

Husqvarna 601001803

CLIP, CHUTE RING

$13.99

$

Usually ships in 3-10 days

0

590

Husqvarna 601001804

LOWER CHUTE

$

$

Not available

591

Husqvarna 601000066

SCREW, 1/4-20X.50

$

$

Not available

592

Husqvarna 601000827

NUT, 1/4-20 MAC-LOCK

$4.99

$

In Stock, only 4 left!

0

600

Husqvarna 601001805

UPPER CHUTE

$

$

Not available

601

Husqvarna 601001389

WIRE, HINGE

$

$

Not available

602

Husqvarna 601001390

CARR. BOLT 5/16-18 X1.25

$

$

Not available

603

Husqvarna 601000019

FLATWASHER

$3.49

$

In Stock, only 1 left!

0

604

Husqvarna 601000684

KNOB, T 2BLADE
(Superseded to 601400069)

$14.99

$

In Stock, only 1 left!

0

605

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

606

Husqvarna 601002038

SCREW 5/16-18 X.75

$

$

Not available

607

Husqvarna 601000019

FLATWASHER

$3.49

$

In Stock, only 1 left!

0

608

Husqvarna 601000059

NUT, 5/16-18 RGHXCTRLK

$6.99

$

In Stock, only 2 left!

0

610

Husqvarna 601002089

BRACKET, WORM ADJUST

$

$

Not available

611

Husqvarna 601001411

CARR. BOLT 5/16-18 X.75

$

$

Not available

612

Husqvarna 601000019

FLATWASHER

$3.49

$

In Stock, only 1 left!

0

613

Husqvarna 601000023

WASHER, HVSPTLK

$

$

Not available

614

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

620

Husqvarna 601002091

BRACKET, CHUTE ROD

$

$

Not available

621

Husqvarna 601001411

CARR. BOLT 5/16-18 X.75

$

$

Not available

622

Husqvarna 601000019

FLATWASHER

$3.49

$

In Stock, only 1 left!

0

623

Husqvarna 601000023

WASHER, HVSPTLK

$

$

Not available

624

Husqvarna 601000012

NUT, 5/16-18 REGHEX

$

$

Not available

625

Husqvarna 601001809

PLATE, CHUTE ROD

$

$

Not available

626

Husqvarna 601000066

SCREW 1/4-20 X.50

$

$

Not available

627

Husqvarna 601000062

NUT, 1/4-20 RGHXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

630

Husqvarna 601001810

ROD, ASSY CHUTE CTRL

$

$

Not available

631

Husqvarna 601001851

FLATWASHER
(Superseded to 601400003)

$

$

Not available

632

Husqvarna 601000025

COTTER PIN

$

$

Not available

633

Husqvarna 601001811

BLOCK, PIVOT

$

$

Not available

634

Husqvarna 601001404

WASHER CURVED SPRING

$

$

Not available
