ST 521 M - Husqvarna 21" Snow Blower (1997-10) Auger And Housing Assembly Parts Diagram

21" Snow Blower

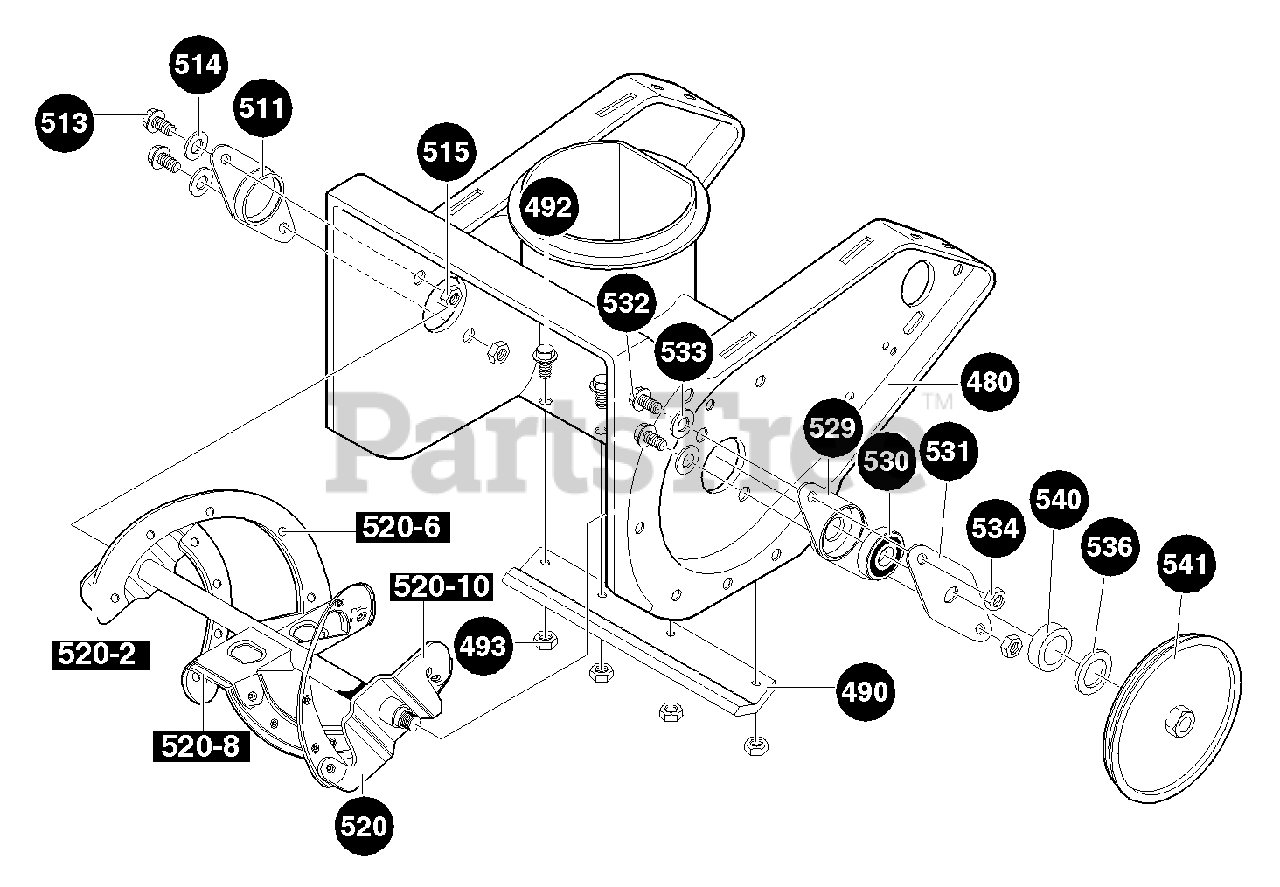

Auger And Housing Assembly Parts Diagram

  • Title

480

Husqvarna 601002085

HOUSING, AUGER

$

$

Not available

490

Husqvarna 601001796

SCRAPER BLADE

$

$

Not available

492

Husqvarna 601001797

SCREW, 1/4-20 X .63

$

$

Not available

493

Husqvarna 601000827

NUT, 1/4-20 MAC-LOCK

$4.99

$

In Stock, only 4 left!

0

511

Husqvarna 601002153

BEARING, FLANGED

$

$

Not available

513

Husqvarna 601001380

SCREW, 1/4-20 X .88

$

$

Not available

514

Husqvarna 601000018

FLATWASHER .281 X .63 X .065

$

$

Not available

515

Husqvarna 601000827

NUT, 1/4-20 MAC-LOCK

$4.99

$

In Stock, only 4 left!

0

520

Husqvarna 601001798

AUGER, ASSY COMP

$

$

Not available

5202

Husqvarna 601001935

BLADE, AUGER

$

$

Not available

5206

Husqvarna 601001934

RIVET, OVSET

$

$

Not available

5208

Husqvarna 601002088

AUGER, ASSY COMP

$

$

Not available

52010

Husqvarna 601001798

AUGER & BLADE SUPP.

$

$

Not available

529

Husqvarna 601002086

BEARING RETAINER

$

$

Not available

530

Husqvarna 601000565

BALL BEARING

$

$

Not available

531

Husqvarna 601001381

PLATE, RETAINER BRNG

$

$

Not available

532

Husqvarna 601000068

SCREW 1/4-20 X .75

$

$

Not available

533

Husqvarna 601000018

FLATWASHER .281 X .63 X .065

$

$

Not available

534

Husqvarna 601000062

NUT, 1/4-20 RGHXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

536

Husqvarna 601000531

FLATWASHER .640 X 1.25 X .06

$

$

Not available

540

Husqvarna 601002087

SPACER, SLEV

$

$

Not available

541

Husqvarna 601002095

PULLEY, POLY V

$

$

Not available
