ST 521 E - Husqvarna 21" Snow Blower (1998-02) Frame Assembly Parts Diagram

21" Snow Blower

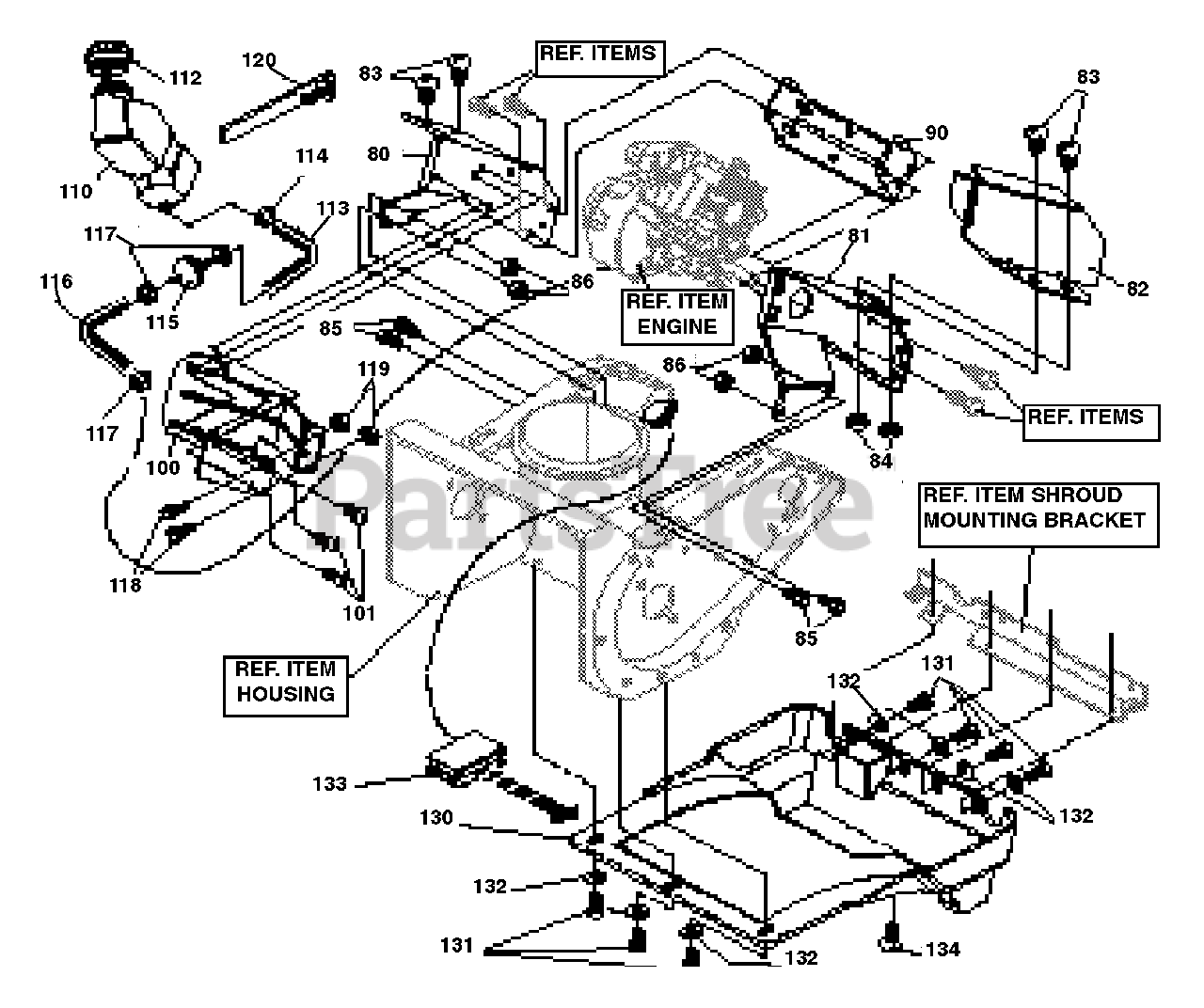

Frame Assembly Parts Diagram

80

Husqvarna 601001767

PLATE, REAR RH

$

$

Not available

81

Husqvarna 601001768

PLATE, REAR LH
(Superseded to 601400023)

$

$

Not available

82

Husqvarna 601001769

SHIELD, ENGINE HEAT

$

$

Not available

83

Husqvarna 601001770

SCREW, 1/4-20 X .63

$

$

Not available

84

Husqvarna 601000827

NUT, 1/4-20 WDFL

$4.99

$

In Stock, only 4 left!

0

85

Husqvarna 601001640

SCREW, 5/16-18 X .50

$

$

Not available

86

Husqvarna 601000059

NUT, 5/16-18

$6.99

$

In Stock, only 2 left!

0

90

Husqvarna 601001771

SUPPORT, FRAME

$

$

Not available

100

Husqvarna 601001772

BRACKET, GAS TANK

$

$

Not available

101

Husqvarna 601001792

SCREW, #10-24 X .63

$

$

Not available

110

Husqvarna 601001774

TANK, FUEL

$

$

Not available

112

$

$

Not available

113

Husqvarna 601001776

TUBING, .GAS LINE

$

$

Not available

114

Husqvarna 601000554

CLAMP,HOSE

$

$

Not available

115

Husqvarna 601001777

FILTER, IN-LINE

$

$

Not available

116

Husqvarna 601001778

TUBING, .GAS LINE

$

$

Not available

117

Husqvarna 601001779

CLAMP, HOSE

$

$

Not available

118

Husqvarna 601001366

SCREW, 10-24 X .50

$

$

Not available

119

Husqvarna 601001367

NUT, #10-24

$

$

Not available

120

Husqvarna 601001780

CLAMP, WORM

$

$

Not available

130

Husqvarna 601001781

COVER, BOTTOM

$

$

Not available

131

Husqvarna 601001792

SCREW, #10-24 X .63

$

$

Not available

132

Husqvarna 601001703

WASHER, FLAT .203 X .56 X .04O

$

$

Not available

133

Husqvarna 601001783

CLIP, "S" TINNERMAN

$

$

Not available

134

Husqvarna 601000883

SCREW, 10-16 X .50

$

$

Not available
