ST 521 E - Husqvarna 21" Snow Blower (1998-02) Belt Cover Assembly Parts Diagram

21" Snow Blower

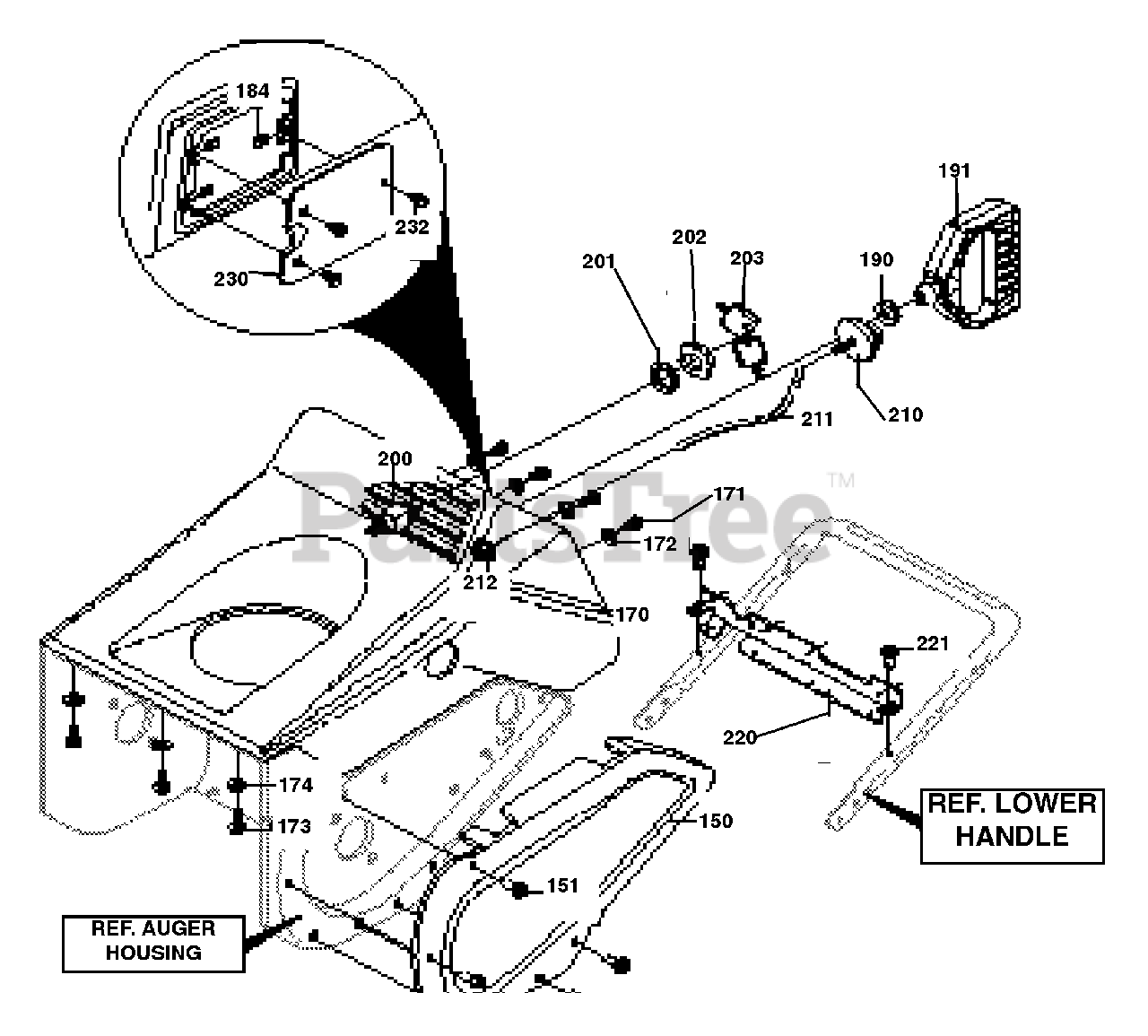

Belt Cover Assembly Parts Diagram

  • Title
150

Husqvarna 601001784

COVER, BELT 2CY

$

$

Not available

151

Husqvarna 601000514

SCREW, 10-24 X .38 SLHWATAP

$

$

Not available

170

Husqvarna 601001785

COVER, TOP

$

$

Not available

171

Husqvarna 601001792

SCREW, #10-24 X .63

$

$

Not available

172

Husqvarna 601001703

WASHER, FLAT .203 X .56 X .04O

$

$

Not available

173

Husqvarna 601001787

SCREW, #10-14 X .63

$

$

Not available

174

Husqvarna 601000017

WASHER, FLAT .250 X .56 X .049

$

$

Not available

184

Husqvarna 601001788

NUT, TINN "U" TYPE

$

$

Not available

190

Husqvarna 601001355

GROMMET & WASHER

$

$

Not available

191

Husqvarna 601001789

GRIP, MITTEN

$

$

Not available

200

Husqvarna 601001358

SWITCH, IGNITION

$

$

Not available

201

Husqvarna 601001359

WASHER, REGINTLK

$

$

Not available

202

Husqvarna 601001360

NUT, 5/8-32

$

$

Not available

203

Husqvarna 601001361

2 KEYS & RING

$

$

Not available

210

Husqvarna 601001362

PRIMER, ENGINE

$

$

Not available

211

Husqvarna 601001363

HOSE, PRIM

$

$

Not available

212

Husqvarna 601001790

NUT, 1/4-20

$

$

Not available

220

Husqvarna 601001791

BRACKET, SHROUD

$

$

Not available

221

Husqvarna 601001792

SCREW, #10-24 X .63

$

$

Not available

$

$

Not available

232

Husqvarna 601001794

SCREW #10-16 X .75

$

$

Not available
