ST 521 E - Husqvarna 21" Snow Blower (1998-02) Auger And Housing Assembly Parts Diagram

21" Snow Blower

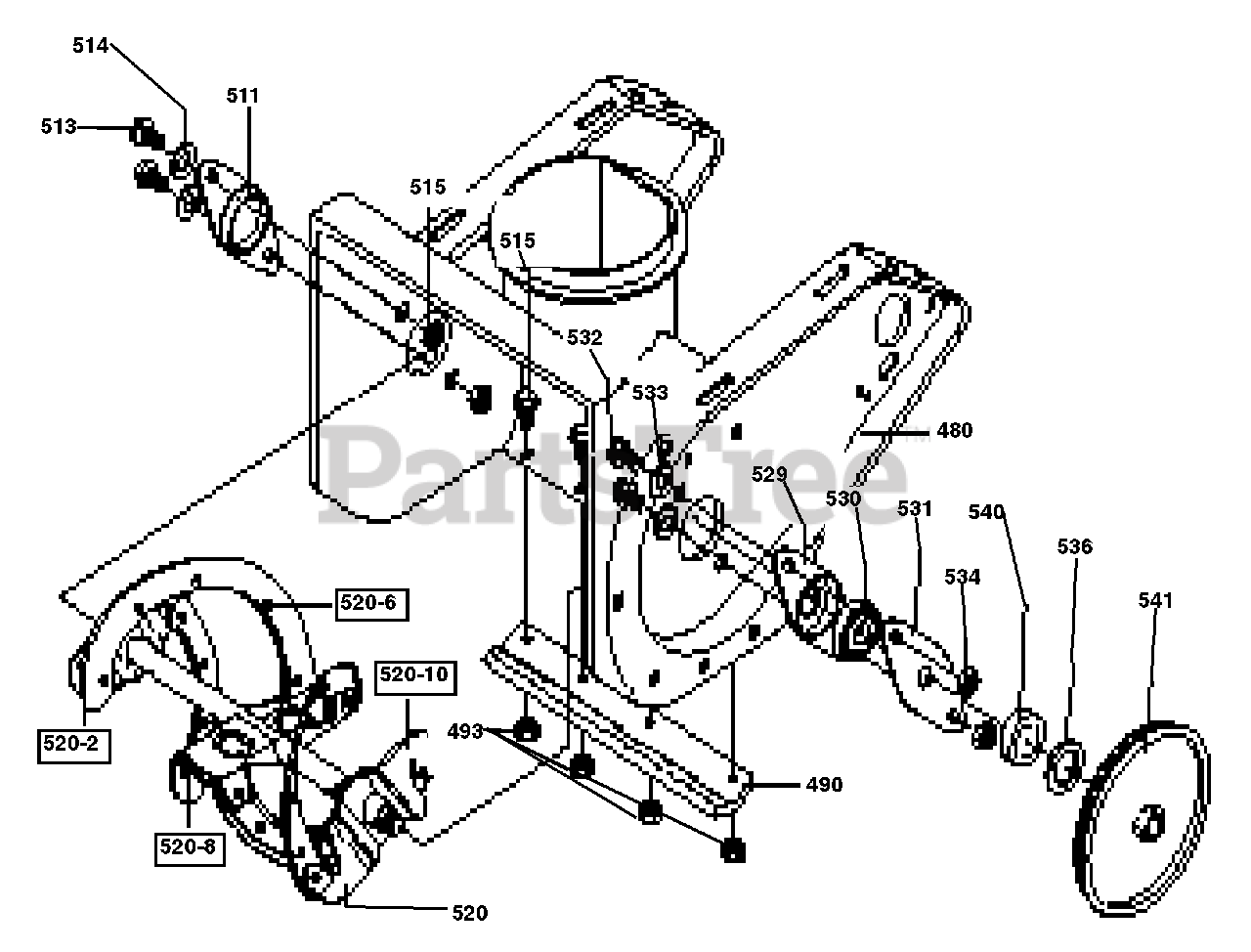

Auger And Housing Assembly Parts Diagram

  • Title

480

Husqvarna 601002085

HSNG, ASSY

$

$

Not available

490

Husqvarna 601001796

BLADE, SCRAP

$

$

Not available

492

Husqvarna 601001797

SCREW, 1/4-20 X .63

$

$

Not available

493

Husqvarna 601000827

NUT, 1/4-20 WDFL MAC-LOCK

$4.99

$

In Stock, only 4 left!

0

511

Husqvarna 601002153

BEARING, FLANGE

$

$

Not available

513

Husqvarna 601001380

SCREW, 1/4-20 X .88

$

$

Not available

514

Husqvarna 601000018

WASHER, FLAT .281 X .63 X .065

$

$

Not available

515

Husqvarna 601000827

NUT, 1/4-20 WDFL MAC-LOCK

$4.99

$

In Stock, only 4 left!

0

520

Husqvarna 601001798

AUGER, ASSY

$

$

Not available

520-2

Husqvarna 601001995

BLADE, AUGER
(Superseded to 601001889)

$

$

Not available

520-6

Husqvarna 601001934

RIVET, OVSET

$

$

Not available

520-8

Husqvarna 601002414

BLADE CENTER

$

$

Not available

520-10

Husqvarna 601001798

AUGER & BLADE ASSY

$

$

Not available

529

Husqvarna 601002086

RETAINER, BEARING

$

$

Not available

530

Husqvarna 601000539

BRNG, BALL
(Superseded to 601000565)

$

$

Not available

531

Husqvarna 601001381

PLATE,RETAINING BEARING

$

$

Not available

532

Husqvarna 601000067

SCREW, 1/4-20 X .62

$

$

Not available

533

Husqvarna 601000018

WASHER, FLAT .281 X .63 X .065

$

$

Not available

534

Husqvarna 601002318

NUT, 1/4-20 REGHEXCTRLK

$11.99

$

In Stock, only 2 left!

0

536

Husqvarna 601001715

WASHER, FLAT .640 X 1.25 X .06
(Superseded to 601000531)

$

$

Not available

540

Husqvarna 601002087

SPACER, SLEV .640 X .88 X .15

$

$

Not available

541

Husqvarna 601002095

PULLEY, POLYV 6" OD

$

$

Not available
