ST 521 E - Husqvarna 21" Snow Blower (1997-10) Engine Assembly Parts Diagram

21" Snow Blower

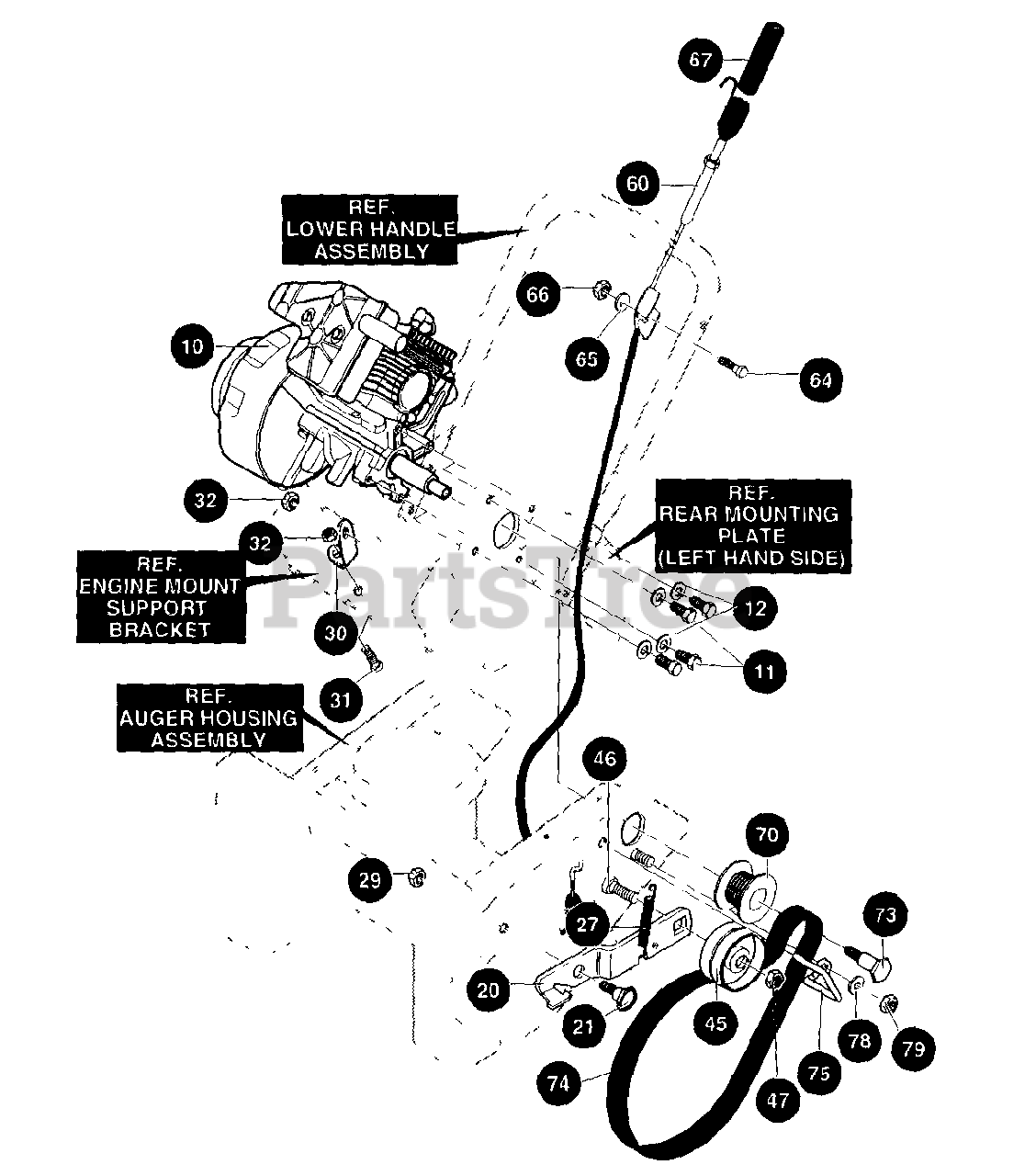

Engine Assembly Parts Diagram

  • Title

10

Husqvarna ~ENGINE

5HP

Note: (See Engine Manual)

$

$

Currently unavailable

11

Husqvarna 601000073

SCREW, 5/16-18X.75

$

$

Not available

12

Husqvarna 601000023

WASHER, .328X.60X.09

$

$

Not available

20

Husqvarna 601001734

BRACKET, IDLER ARM

$

$

Not available

21

Husqvarna 601001751

SH. BOLT 5/16-18

$

$

Not available

27

Husqvarna 601001753

SPRING, IDLER BRAKE

$

$

Not available

29

Husqvarna 601000059

NUT, 5/16-18 RGHXCTRLK

$6.99

$

In Stock, only 2 left!

0

30

Husqvarna 601001754

SUPPORT, ENGINE

$

$

Not available

31

Husqvarna 601001640

SCREW 5/16-18X.50

$

$

Not available

32

Husqvarna 601000059

NUT, 5/16-18 REGHXCTRLK

$6.99

$

In Stock, only 2 left!

0

45

Husqvarna 601001755

PULLEY, IDLER

$

$

Not available

46

Husqvarna 601001756

CARR. BOLT, 3/8-16X1.50

$

$

Not available

47

Husqvarna 601001335

NUT, 3/8-16 CTRLKJAM

$

$

Not available

60

Husqvarna 601001757

CABLE, DRIVE CONTROL

$

$

Not available

64

Husqvarna 601001758

SCREW 1/4-20X1.50

$

$

Not available

65

Husqvarna 601000018

FLATWASHER

$

$

Not available

66

Husqvarna 601001517

NUT, 1/4-20 RGHXCTRLK

$5.99

$

In Stock, Qty 6

0

67

Husqvarna 601001759

COVER, CABLE SPRING

$

$

Not available

70

Husqvarna 601001760

PULLEY, 4.5HP POLY V

$

$

Not available

73

Husqvarna 601002080

SH. BOLT .625X.282

$

$

Not available

74

Husqvarna 601002081

BELT, POLY

$

$

Not available

75

Husqvarna 601002082

GUIDE, BELT
(Superseded to 601400059)

$

$

Not available

78

Husqvarna 601000020

FLATWASHER

$

$

Not available

79

Husqvarna 601000059

NUT, 5/16-18 REGHXCTRLK

$6.99

$

In Stock, only 2 left!

0
