ST 521 E - Husqvarna 21" Snow Blower (1997-01) AUGER HOUSING & IMPELLER Parts Diagram

21" Snow Blower

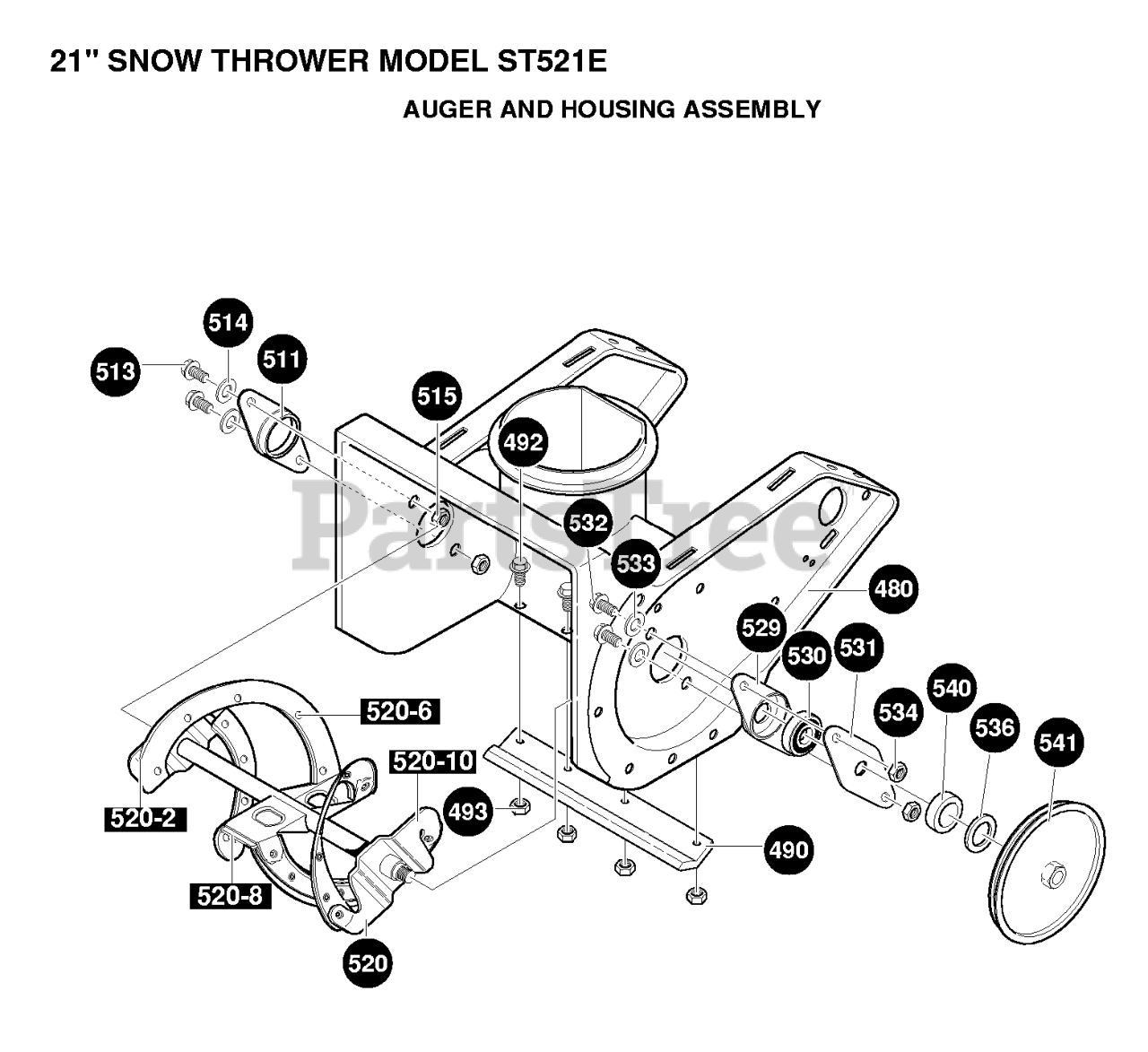

AUGER HOUSING & IMPELLER Parts Diagram

  • Title

520

Husqvarna 601001798

AUGER ASSY COMP 21"

$

$

Not available

534

Husqvarna 601000062

NUT, 1/4-20 REGHEXCTRLK
(Superseded to 601002318)

$11.99

$

In Stock, only 2 left!

0

513

Husqvarna 601001380

SCREW

$

$

Not available

541

Husqvarna 601002095

PULLEY, RIBBED 6" OD

$

$

Not available

514

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

480

Husqvarna 601002085

HOUSING, AUGER

$

$

Not available

530

Husqvarna 601000565

BEARING, BALL

$

$

Not available

520-2

Husqvarna 601001935

BLADE, AUGER

$

$

Not available

493

Husqvarna 601000827

NUT 1/4-20

$4.99

$

In Stock, only 4 left!

0

490

Husqvarna 601001796

BLADE, SCRAPER 20.88 P

$

$

Not available

515

Husqvarna 601000827

NUT 1/4-20

$4.99

$

In Stock, only 4 left!

0

520-6

Husqvarna 601001934

RIVET, OVSET

$

$

Not available

531

Husqvarna 601001381

RETAINER, BRNG

$

$

Not available

536

Husqvarna 601000531

WASHER,FLAT.640X1.25X.06

$

$

Not available

511

Husqvarna 601001379

BEARING, FLANGE
(Superseded to 601002153)

$

$

Not available

529

Husqvarna 601002086

BEARING RETAINER

$

$

Not available

520-8

Husqvarna 601002088

AUGER, ASSY COMP

$

$

Not available

540

Husqvarna 601002087

SPACER, SLEEVE

$

$

Not available

532

Husqvarna 601000068

SCREW, 1/4-20X .75 HHC

$

$

Not available

533

Husqvarna 601000018

WASHER, FLAT .281X .63X.

$

$

Not available

520-10

Husqvarna 601001798

AUGER ASSY COMP 21"

$

$

Not available

492

Husqvarna 601001797

SCREW, 1/4-20X.63 SLTRMA

$

$

Not available
