ST-5024 - Echo Snow Thrower (Type 1E) Impeller Assembly, Worm Gear, Auger Shaft, Gear Case Parts Diagram

Snow Thrower (Type 1E)

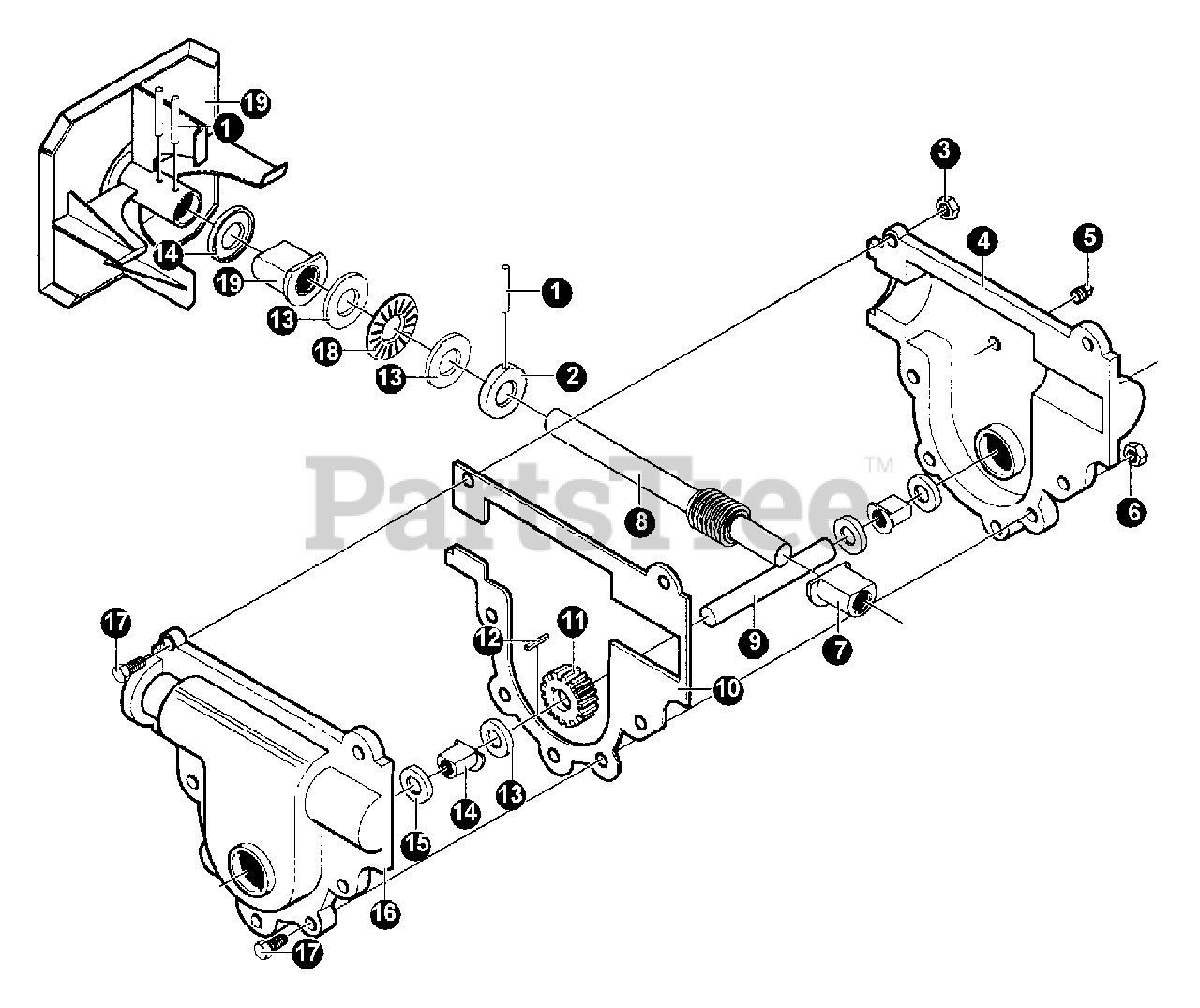

Impeller Assembly, Worm Gear, Auger Shaft, Gear Case Parts Diagram

  • Title

1

Echo 14454565

PIN - SPRING - .250DIAX1.25LG
(Superseded to Discontinued)

$

$

Not available

2

Echo 14580295

COLLAR, THRUST .753X1.24X.50
(Superseded to Discontinued)

$

$

Not available

3

Echo 14303008

NUT - 1/4-20 -- KEPS
(Superseded to Discontinued)

$

$

Not available

4

Echo 14010576

CASE, GEAR - LEFT
(Superseded to Discontinued)

$

$

Not available

5

Echo 14009344

SCREW - 3/8-16 X .50"
(Superseded to Discontinued)

$

$

Not available

6

Echo 14046931

LOCKNUT - 1/4-20
(Superseded to Discontinued)

$

$

Not available

7

Echo 14050221

BEARING, FLANGE
(Superseded to Discontinued)

$

$

Not available

8

Echo 14583125

SHAFT, WORM

$53.99

$

Usually ships in 2-4 days

0

9

Echo 14340286

SHAFT, AUGER OUTPUT
(Superseded to Discontinued)

$

$

Not available

10

Echo 14051279

GASKET, GEAR CASE

$2.49

$

Usually ships in 2-4 days

0

11

Echo 14051405

GEAR - WORM
(Superseded to Discontinued)

$

$

Not available

12

Echo 14431787

KEY - 61

$1.99

$

Usually ships in 2-4 days

0

13

Echo 14009346

WASHER - .752X1.24X.093
(Superseded to Discontinued)

$

$

Not available

14

Echo 14050304

BEARING, FLANGE
(Superseded to Discontinued)

$

$

Not available

15

Echo 14009566

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

16

Echo 14010577

CASE, GEAR - RIGHT
(Superseded to Discontinued)

$

$

Not available

17

Echo 14180020

SCREW - 1/4-20

$1.49

$

Usually ships in 2-4 days

0

18

Echo 14313828

BEARING, ROLLER

$4.99

$

Usually ships in 2-4 days

0

19

Echo 14585598

IMPELLER ASSY
(Superseded to 14760194)

$

$

Not available
