ST-5024 - Echo Snow Thrower (Type 1E) Engine, Belts, Pulleys, Cover, Cable Parts Diagram

Snow Thrower (Type 1E)

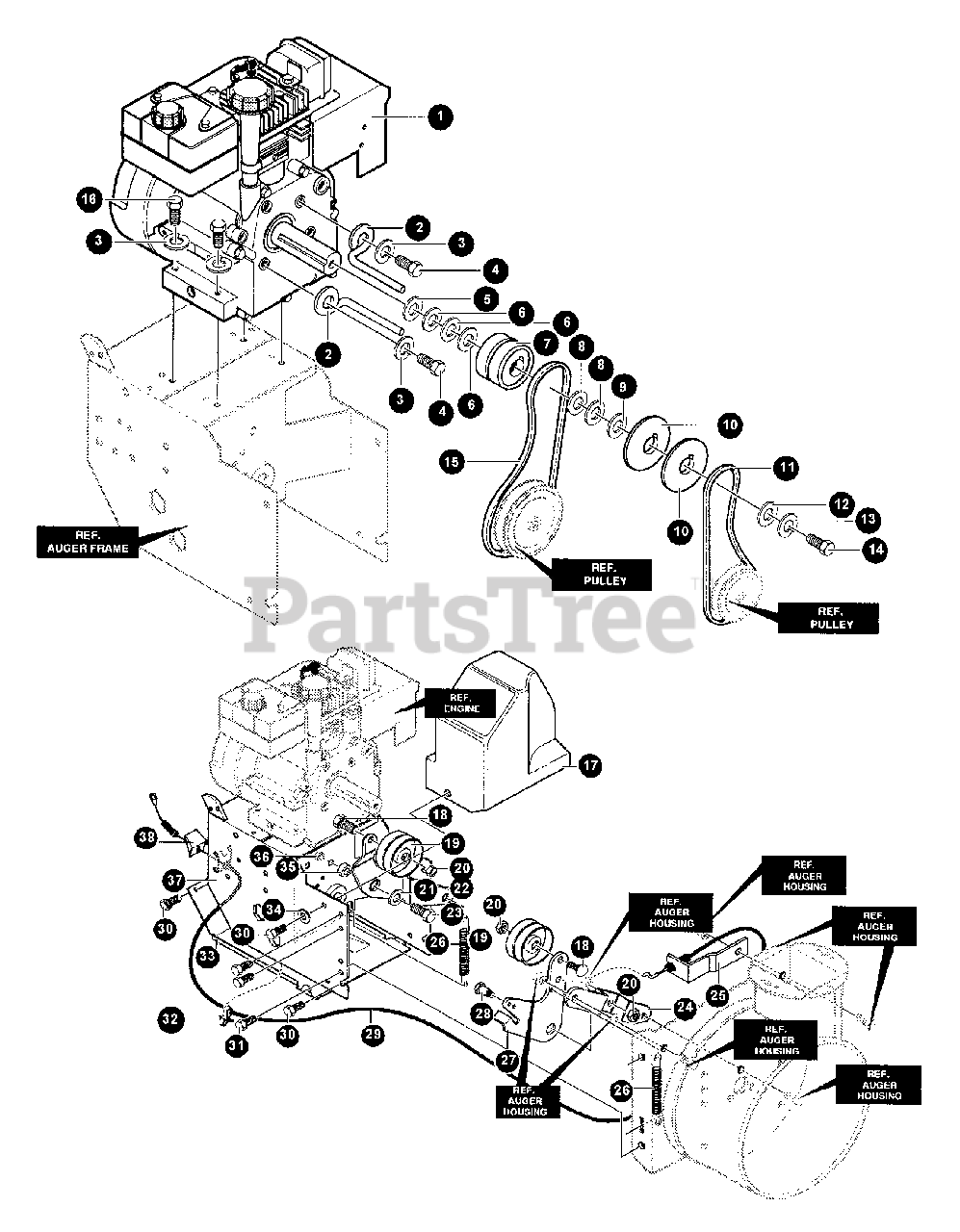

Engine, Belts, Pulleys, Cover, Cable Parts Diagram

  • Title

1

------------------

ENGINE, 5 HP TEC

Note: SEE ENGINE MANUAL

$

$

Not available

2

Echo 14003949

GUIDE, ROD BELT - RIGHT

$1.49

$

Usually ships in 2-4 days

0

3

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

4

Echo 14578733

SCREW - 5/16-24 X 5/8"
(Superseded to Discontinued)

$

$

Not available

5

Echo 14579855

WASHER
(Superseded to Discontinued)

$

$

Not available

6

Echo 14579861

WASHER, FLAT .752X.91X.02
(Superseded to Discontinued)

$

$

Not available

7

Echo 14579854

PULLEY, HALF
(Superseded to Discontinued)

$

$

Not available

8

Echo 14073840

WASHER
(Superseded to Discontinued)

$

$

Not available

9

Echo 14586251

SPACER
(Superseded to Discontinued)

$

$

Not available

10

Echo 14586253

PULLEY, ENGINE
(Superseded to Discontinued)

$

$

Not available

11

Echo 14581264

BELT, V 4L 35.23 LG
(Superseded to Discontinued)

$

$

Not available

12

Echo 14313826

WASHER
(Superseded to Discontinued)

$

$

Not available

13

Echo 14120382

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

14

Echo 14039573

SCREW - 3/8-24 X 1.00" -- NYLON
(Superseded to Discontinued)

$

$

Not available

15

Echo 14579932

BELT, V 3L 33.13LG
(Superseded to Discontinued)

$

$

Not available

16

Echo 14710024

SCREW - 5/16-18
(Superseded to Discontinued)

$

$

Not available

17

Echo 14580772

COVER, BELT

$11.99

$

Usually ships in 2-4 days

0

18

Echo 14180124

SCREW - 3/8-16 X 1-1/4"
(Superseded to Discontinued)

$

$

Not available

19

Echo 14313843

PULLEY, IDLER
(Superseded to Discontinued)

$

$

Not available

20

Echo 14041529

LOCKNUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

21

Echo 14073795

WASHER - .328X1.25X.075
(Superseded to Discontinued)

$

$

Not available

22

Echo 14579872

LEVER, IDLER ARM TRACTION
(Superseded to Discontinued)

$

$

Not available

23

Echo 14180077

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

24

Echo 14336657

PLATE, CLUTCH
(Superseded to 14761195)

$

$

Not available

25

Echo 14340579

BRACKET, COMPACT CABLE MTG.

$2.99

$

In Stock, only 1 left!

0

26

Echo 14313854

SPRING, IDLER

$3.99

$

In Stock, only 1 left!

0

27

Echo 14340604

SHOE, CLUTCH
(Superseded to Discontinued)

$

$

Not available

28

Echo 14335587

BOLT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

29

Echo 14340373

CABLE, AUGER
(Superseded to 14761400)

$

$

Not available

30

Echo 14310169

SCREW - 1/4-20 X .63" -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

31

Echo 14035497

SCREW - 5/16-18 X 1/2"
(Superseded to Discontinued)

$

$

Not available

32

Echo 14340682

CLIP, CABLE
(Superseded to Discontinued)

$

$

Not available

33

Echo 14583031

COVER, BOTTOM
(Superseded to Discontinued)

$

$

Not available

34

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

35

Echo 14579865

BUSHING, IDLER LEVER
(Superseded to Discontinued)

$

$

Not available

36

Echo 14071038

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

37

Echo 14340578

FRAME ASSY
(Superseded to Discontinued)

$

$

Not available

38

Echo 14340869

SHIELD, CABLE GUARD
(Superseded to Discontinued)

$

$

Not available
