ST-5024 - Echo Snow Thrower (Type 1) Auger Housing Assembly, Chute Assembly Parts Diagram

Snow Thrower (Type 1)

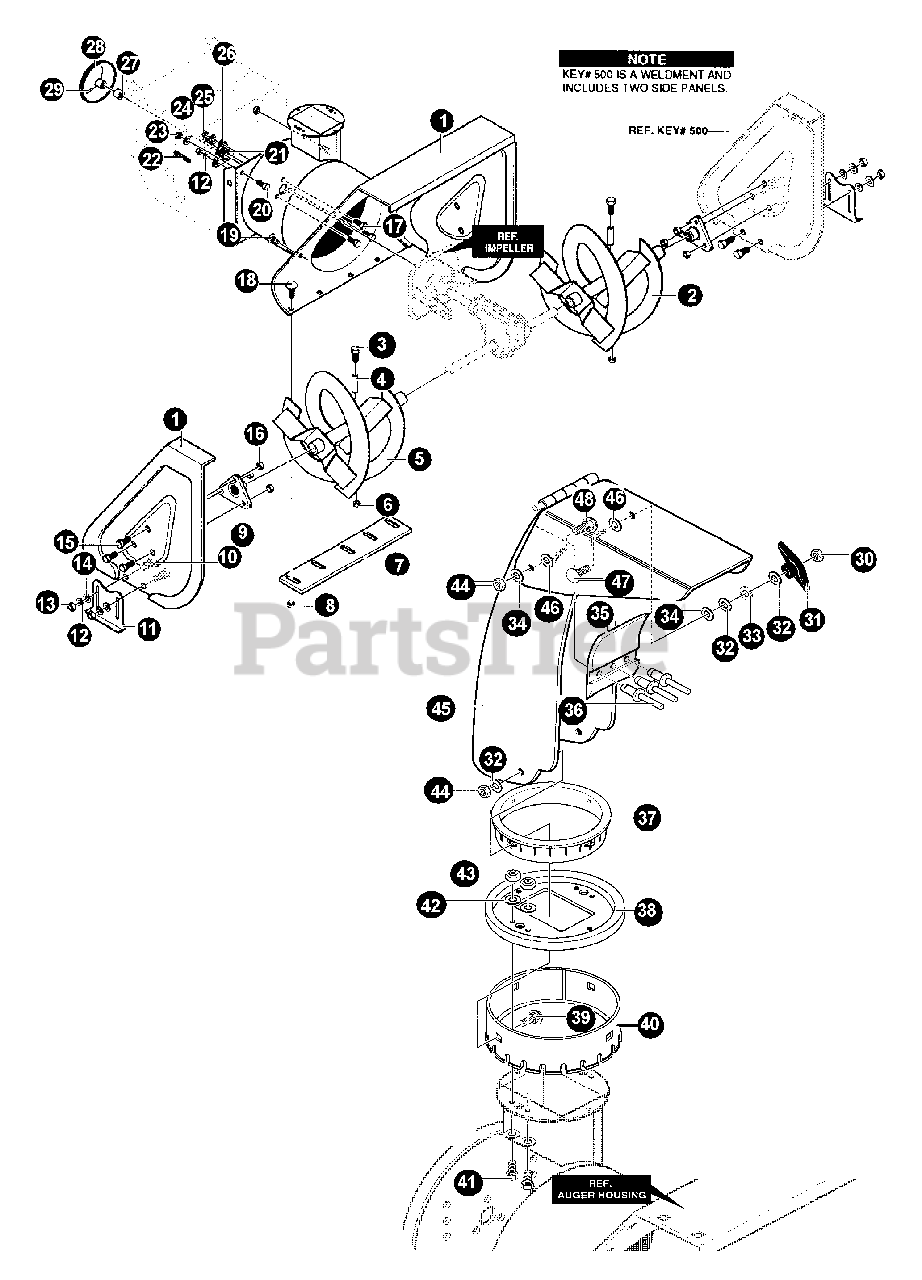

Auger Housing Assembly, Chute Assembly Parts Diagram

  • Title

1

Echo 14339881

AUGER INTAKE ASSY
(Superseded to Discontinued)

$

$

Not available

2

Echo 14340523

AUGER ASSY - RIGHT

$50.99

$

Usually ships in 2-4 days

0

3

Echo 14009524

SCREW - 1/4-20 X 1-3/4"

$5.99

$

In Stock, only 3 left!

0

4

Echo 14003943

SPACER, SLEEVE .250X.47X.20
(Superseded to Discontinued)

$

$

Not available

5

Echo 14340518

AUGER ASSY - LEFT
(Superseded to Discontinued)

$

$

Not available

6

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

7

Echo 14581397

BLADE, SCRAPER
(Superseded to Discontinued)

$

$

Not available

8

Echo 14051335

LOCKNUT - 1/4-20
(Superseded to Discontinued)

$

$

Not available

9

Echo 14009517

BEARING, FLANGE

$2.49

$

Usually ships in 2-4 days

0

10

Echo 14070993

BOLT - 5/16-18 X 3/4"
(Superseded to Discontinued)

$

$

Not available

11

Echo 14001161

SKID, HEIGHT
(Superseded to Discontinued)

$

$

Not available

12

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

13

Echo 14120376

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

14

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

15

Echo 14009357

SCREW - 5/16-18 X 3/4"
(Superseded to Discontinued)

$

$

Not available

16

Echo 14008619

NUT - 5/16-18
(Superseded to Discontinued)

$

$

Not available

17

Echo 14180077

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

18

Echo 14323825

BOT, 1/4-20X.75 CARR
(Superseded to Discontinued)

$

$

Not available

19

Echo 14309235

FASTENER, RATCHET
(Superseded to Discontinued)

$

$

Not available

20

Echo 14071003

SCREW - 3/8-16 X 3/4"
(Superseded to Discontinued)

$

$

Not available

21

Echo 14043846

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

22

Echo 14071371

KEY, SQUARE .18SQX88LG
(Superseded to Discontinued)

$

$

Not available

23

Echo 14001499

NUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

24

Echo 14120382

LOCKWASHER
(Superseded to Discontinued)

$

$

Not available

25

Echo 14710026

NUT - 5/16-18

$0.99

$

Usually ships in 2-4 days

0

26

Echo 14582960

RETAINER, BEARING

$2.49

$

Usually ships in 2-4 days

0

27

Echo 14334514

SPACER, SLEEVE .675X1.00X.53

$0.99

$

Usually ships in 2-4 days

0

28

Echo 14583124

PULLEY, V4L6.22X.67

$31.99

$

Usually ships in 2-4 days

0

29

Echo 14577400

SCREW - 5/16-28 X 5/8"
(Superseded to Discontinued)

$

$

Not available

30

Echo 14120376

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

31

Echo 14013527

KNOB, T 2 BLADE W/5/16-18 NUT

$2.99

$

In Stock, only 1 left!

0

32

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

33

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

34

Echo 14006711

WASHER - PLASTIC

$1.49

$

Usually ships in 2-4 days

0

35

Echo 14760268

FLAP, CHUTE INSERT
(Superseded to Discontinued)

$

$

Not available

36

Echo 14760987

RIVET
(Superseded to Discontinued)

$

$

Not available

37

Echo 14337227

RETAINER, RING INNER
(Superseded to Discontinued)

$

$

Not available

38

Echo 14585214

COLLAR
(Superseded to Discontinued)

$

$

Not available

39

Echo 14586280

BOLT, 5/16-18X1.00 CARRLN
(Superseded to Discontinued)

$

$

Not available

40

Echo 14585193

RETAINER, RING OUTER
(Superseded to Discontinued)

$

$

Not available

41

Echo 14180020

SCREW - 1/4-20

$1.49

$

Usually ships in 2-4 days

0

42

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

43

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

44

Echo 14071038

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

45

Echo 14760016

CHOKE ASSY

$60.99

$

Usually ships in 2-4 days

0

46

Echo 14012021

WASHER - PLASTIC

$0.99

$

Usually ships in 2-4 days

0

47

Echo 14126358

BOLT - 5/16-18 X 1"

$1.99

$

Usually ships in 2-4 days

0

48

Echo 14070993

BOLT - 5/16-18 X 3/4"
(Superseded to Discontinued)

$

$

Not available
