ST-5000 - Echo Snow Thrower (Type 1E) (1998) Belt Cover, Auger Housing Parts Diagram

Snow Thrower (Type 1E)

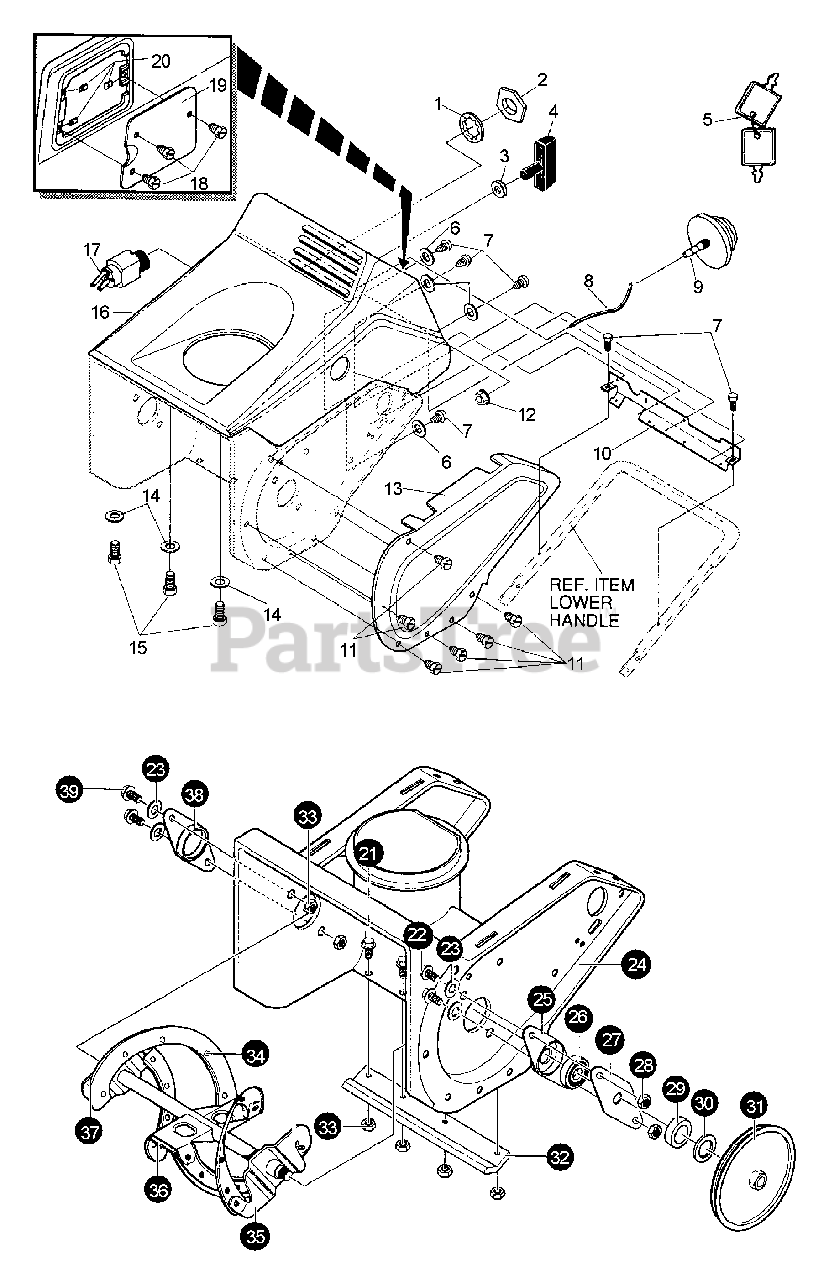

Belt Cover, Auger Housing Parts Diagram

  • Title

1

Echo 14138557

WASHER
(Superseded to Discontinued)

$

$

Not available

2

Echo 14048140

NUT
(Superseded to Discontinued)

$

$

Not available

3

Echo 14057587

GROMMET & WASHER, ROPE GUIDE

$2.99

$

Usually ships in 2-4 days

0

4

Echo 14333643

KNOB, TEE
(Superseded to Discontinued)

$

$

Not available

5

Echo 14049643

KEYS & RING ASSY

$1.99

$

Usually ships in 2-4 days

0

6

Echo 14303041

WASHER

$0.99

$

Usually ships in 2-4 days

0

7

Echo 14309814

SCREW - 10-24 X .63"
(Superseded to Discontinued)

$

$

Not available

8

Echo 14001259

HOSE, PRIM 5.75 LONG

$3.49

$

Usually ships in 2-4 days

0

9

Echo 14054601

PRIMER, ENGINE 2CY
(Superseded to Discontinued)

$

$

Not available

10

Echo 14307469

BRACKET, SHROUD MNTG
(Superseded to Discontinued)

$

$

Not available

11

Echo 14035258

SCREW - 10-24 X 3/8"

$1.49

$

Usually ships in 2-4 days

0

12

Echo 14303008

NUT - 1/4-20 -- KEPS
(Superseded to Discontinued)

$

$

Not available

13

Echo 14302416

COVER, BELT

$27.99

$

Usually ships in 2-4 days

0

14

Echo 14120385

WASHER
(Superseded to Discontinued)

$

$

Not available

15

Echo 14309813

SCREW - 10-14 X .63"
(Superseded to Discontinued)

$

$

Not available

16

Echo 14307468

COVER - TOP
(Superseded to Discontinued)

$

$

Not available

17

Echo 14056992

SWITCH, IGNITION

$14.99

$

Usually ships in 2-4 days

0

18

Echo 14312362

SCREW - 10-16 X .75"

$0.99

$

Usually ships in 2-4 days

0

19

Echo 14307470

DOOR, ACCESS
(Superseded to Discontinued)

$

$

Not available

20

Echo 14309811

NUT
(Superseded to Discontinued)

$

$

Not available

21

Echo 14055686

SCREW - 1/4-20 X 5/8"
(Superseded to Discontinued)

$

$

Not available

22

Echo 14302628

SCREW - 1/4-20 X .75"
(Superseded to Discontinued)

$

$

Not available

23

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

24

Echo 14340381

AUGER INTAKE ASSY - 21"
(Superseded to Discontinued)

$

$

Not available

25

Echo 14580251

RETAINER, BEARING

$1.49

$

Usually ships in 2-4 days

0

26

Echo 14049562

BEARING, BALL - 6203

$10.99

$

Usually ships in 2-4 days

0

27

Echo 14334287

RETAINER, BEARING

$3.49

$

Usually ships in 2-4 days

0

28

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

29

Echo 14578101

SPACER, SLEEVE .640 X .88 X .15

$4.49

$

Usually ships in 2-4 days

0

30

Echo 14040677

WASHER - .640 X 1.25 X .06
(Superseded to Discontinued)

$

$

Not available

31

Echo 14333446

PULLEY, POLYV 6" OD 10 RIB

$51.99

$

Usually ships in 2-4 days

0

32

Echo 14302418

BLADE, SCRAPER

$80.99

$

Usually ships in 2-4 days

0

33

Echo 14046931

LOCKNUT - 1/4-20
(Superseded to Discontinued)

$

$

Not available

34

Echo 14049838

RIVET - .250 X .5"

$3.99

$

In Stock, Qty 15

0

35

Echo 14309376

AUGER ASSY - 21"
(Superseded to Discontinued)

$

$

Not available

36

Echo 14335992

CENTER, AUGER BLADE

$16.99

$

Usually ships in 2-4 days

0

37

Echo 14302565

AUGER, BLADE STRIP
(Superseded to Discontinued)

$

$

Not available

38

Echo 14577023

BEARING, FLANGE
(Superseded to Discontinued)

$

$

Not available

39

Echo 14180021

SCREW - 1/4-20 X 7/8"
(Superseded to Discontinued)

$

$

Not available
