ST-5000 - Echo Snow Thrower (SN: 5001002 - 5001627) Primer, Stop Switch, Belt Cover, Frame, Auger, Scraper Parts Diagram

Snow Thrower

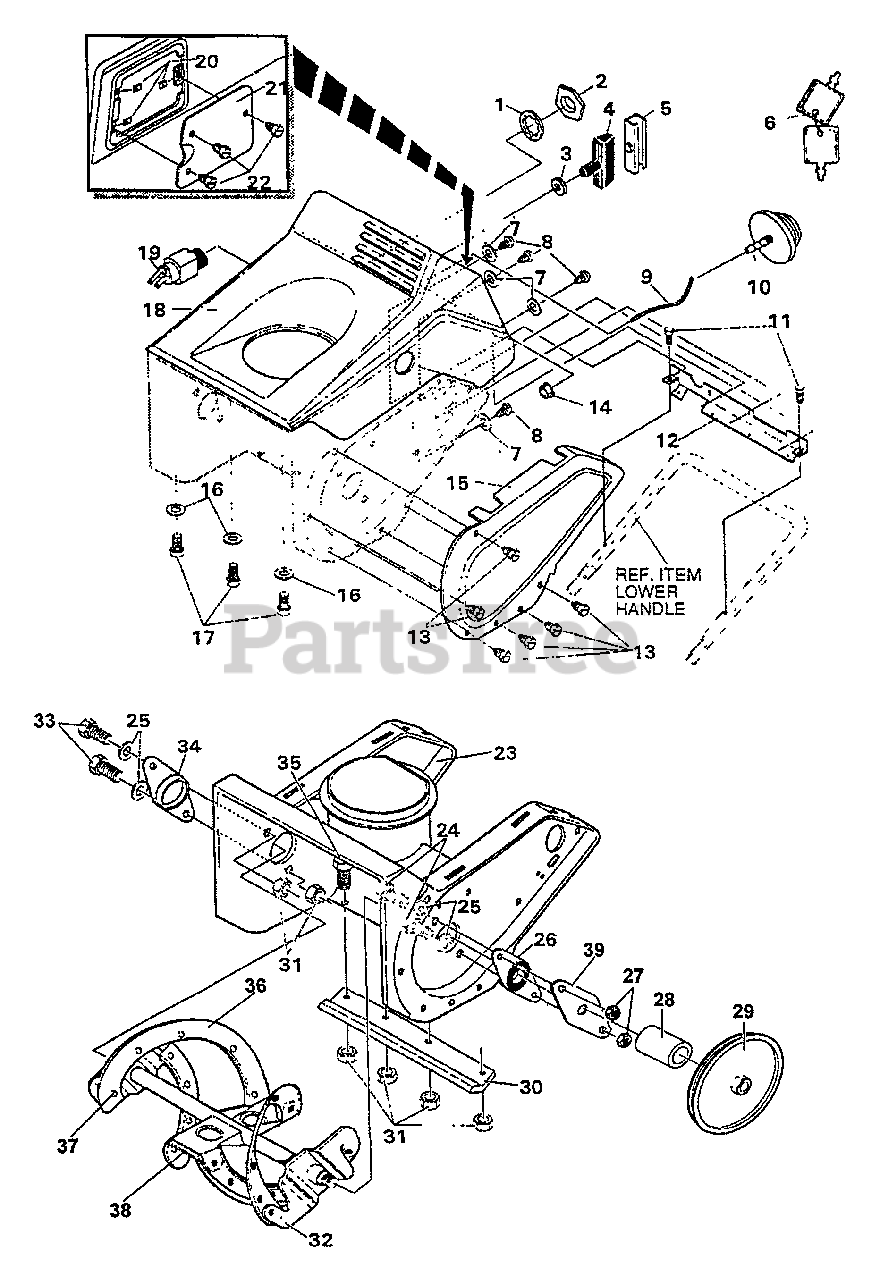

Primer, Stop Switch, Belt Cover, Frame, Auger, Scraper Parts Diagram

  • Title

1

Echo 14138557

WASHER
(Superseded to Discontinued)

$

$

Not available

2

Echo 14048140

NUT
(Superseded to Discontinued)

$

$

Not available

3

Echo 14057587

GROMMET & WASHER, ROPE GUIDE

$2.99

$

Usually ships in 2-4 days

0

4

Echo 14333643

KNOB, TEE
(Superseded to Discontinued)

Note: NO METAL INSERT

$

$

Not available

4

Echo 14313231

KNOB, SHORT SHANK
(Superseded to Discontinued)

$

$

Not available

5

Echo 14056775

INSERT METAL, KNOB
(Superseded to Discontinued)

$

$

Not available

6

Echo 14049643

KEYS & RING ASSY

$1.99

$

Usually ships in 2-4 days

0

7

Echo 14303041

WASHER

$0.99

$

Usually ships in 2-4 days

0

8

Echo 14309814

SCREW - 10-24 X .63"
(Superseded to Discontinued)

$

$

Not available

9

Echo 14001259

HOSE, PRIM 5.75 LONG

$3.49

$

Usually ships in 2-4 days

0

10

Echo 14054601

PRIMER, ENGINE 2CY
(Superseded to Discontinued)

$

$

Not available

11

Echo 14309814

SCREW - 10-24 X .63"
(Superseded to Discontinued)

$

$

Not available

12

Echo 14307469

BRACKET, SHROUD MNTG
(Superseded to Discontinued)

$

$

Not available

13

Echo 14035258

SCREW - 10-24 X 3/8"

$1.49

$

Usually ships in 2-4 days

0

14

Echo 14303008

NUT - 1/4-20 -- KEPS
(Superseded to Discontinued)

$

$

Not available

15

Echo 14302416

COVER, BELT

$27.99

$

Usually ships in 2-4 days

0

16

Echo 14120385

WASHER
(Superseded to Discontinued)

$

$

Not available

17

Echo 14309813

SCREW - 10-14 X .63"
(Superseded to Discontinued)

$

$

Not available

18

Echo 14307468

COVER - TOP
(Superseded to Discontinued)

$

$

Not available

19

Echo 14056992

SWITCH, IGNITION

$14.99

$

Usually ships in 2-4 days

0

20

Echo 14309811

NUT
(Superseded to Discontinued)

$

$

Not available

21

Echo 14307470

DOOR, ACCESS
(Superseded to Discontinued)

$

$

Not available

22

Echo 14312362

SCREW - 10-16 X .75"

$0.99

$

Usually ships in 2-4 days

0

23

Echo 14330317

HSNG, ASSY AUG 21"
(Superseded to Discontinued)

$

$

Not available

24

Echo 14180020

SCREW - 1/4-20

$1.49

$

Usually ships in 2-4 days

0

25

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

26

Echo 14054573

BEARING ASSY
(Superseded to Discontinued)

$

$

Not available

27

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

28

Echo 14302428

SPACER, SLEEVE .640X.88X.732

$1.49

$

Usually ships in 2-4 days

0

29

Echo 14301855

PULLEY, V3L 6.00X.75 20 GA

$33.99

$

In Stock, only 1 left!

0

30

Echo 14302418

BLADE, SCRAPER

$80.99

$

Usually ships in 2-4 days

0

31

Echo 14046931

LOCKNUT - 1/4-20
(Superseded to Discontinued)

$

$

Not available

32

Echo 14309376

AUGER ASSY - 21"
(Superseded to Discontinued)

Note: Includes ITEMS 36 - 38

$

$

Not available

32A

Echo 14307049

AUGER ASSY

Note: DOES NOT INCLUDE BLADE STRIPS

$121.99

$

Usually ships in 2-4 days

0

33

Echo 14180021

SCREW - 1/4-20 X 7/8"
(Superseded to Discontinued)

$

$

Not available

34

Echo 14054837

BEARING, FLANGE
(Superseded to Discontinued)

$

$

Not available

35

Echo 14055686

SCREW - 1/4-20 X 5/8"
(Superseded to Discontinued)

$

$

Not available

36

Echo 14302565

AUGER, BLADE STRIP
(Superseded to Discontinued)

$

$

Not available

37

Echo 14049838

RIVET - .250 X .5"

$3.99

$

In Stock, Qty 15

0

38

Echo 14057121

AUGER, CENTER BLADE STRIP
(Superseded to 14335992)

$16.99

$

Usually ships in 2-4 days

0

39

Echo 14334287

RETAINER, BEARING

$3.49

$

Usually ships in 2-4 days

0
