ST-5000 - Echo Snow Thrower (SN: 5001002 - 5001627) Handles, Auger Ctrl, Wheels Parts Diagram

Snow Thrower

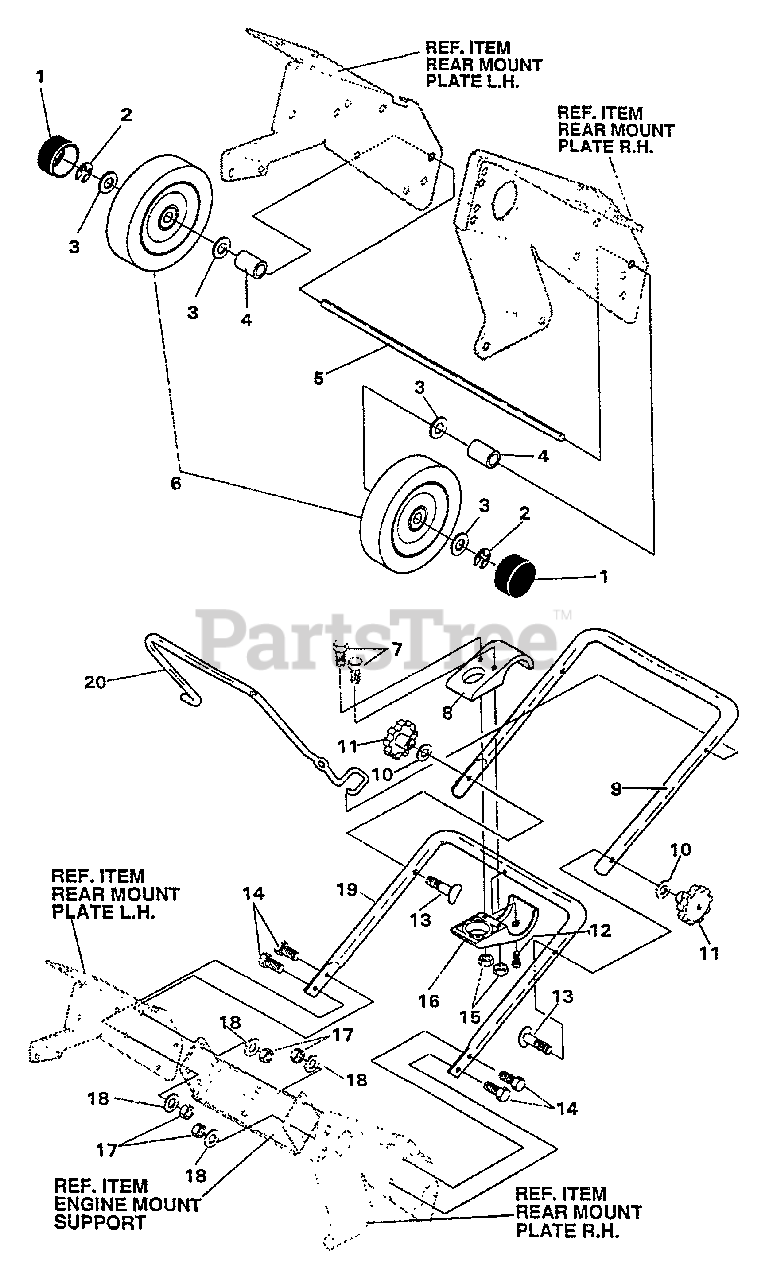

Handles, Auger Ctrl, Wheels Parts Diagram

  • Title

1

Echo 14036832

CAP, HUB
(Superseded to Discontinued)

$

$

Not available

2

Echo 14026178

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

3

Echo 14120394

WASHER
(Superseded to Discontinued)

$

$

Not available

4

Echo 14309656

SPACER, SLEV .407X.63X.440

$4.49

$

Usually ships in 2-4 days

0

5

Echo 14307719

SHAFT, AXLE 5/21
(Superseded to Discontinued)

$

$

Not available

6

Echo 14325016

WHEEL ASSY

$15.99

$

Usually ships in 2-4 days

0

7

Echo 14309815

SCREW - 10-24 X 1.00"

$0.99

$

Usually ships in 2-4 days

0

8

Echo 14308715

BRKT HALF, CHUTE CRANK
(Superseded to Discontinued)

$

$

Not available

9

Echo 14325597

HANDLE - UPPER

$40.99

$

Usually ships in 2-4 days

0

10

Echo 14022025

WASHER
(Superseded to Discontinued)

$

$

Not available

11

Echo 14329935

KNOB KIT

$2.99

$

Usually ships in 2-4 days

0

12

Echo 14310169

SCREW - 1/4-20 X .63" -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

13

Echo 14337584

BOLT, 5/16-18 X 2.00

$0.99

$

Usually ships in 2-4 days

0

14

Echo 14180077

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

15

Echo 14997316

LOCKNUT - 10-24
(Superseded to Discontinued)

$

$

Not available

16

Echo 14308716

BRKT HALF, CHUTE CRANK
(Superseded to Discontinued)

$

$

Not available

17

Echo 14001498

NUT - 5/16-18

$2.49

$

Usually ships in 2-4 days

0

18

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

19

Echo 14309964

HANDLE - LOWER
(Superseded to Discontinued)

$

$

Not available

20

Echo 14307007

BAR, CONTROL DRIVE .31 DIA.
(Superseded to 14307747)

$39.99

$

Usually ships in 2-4 days

0
