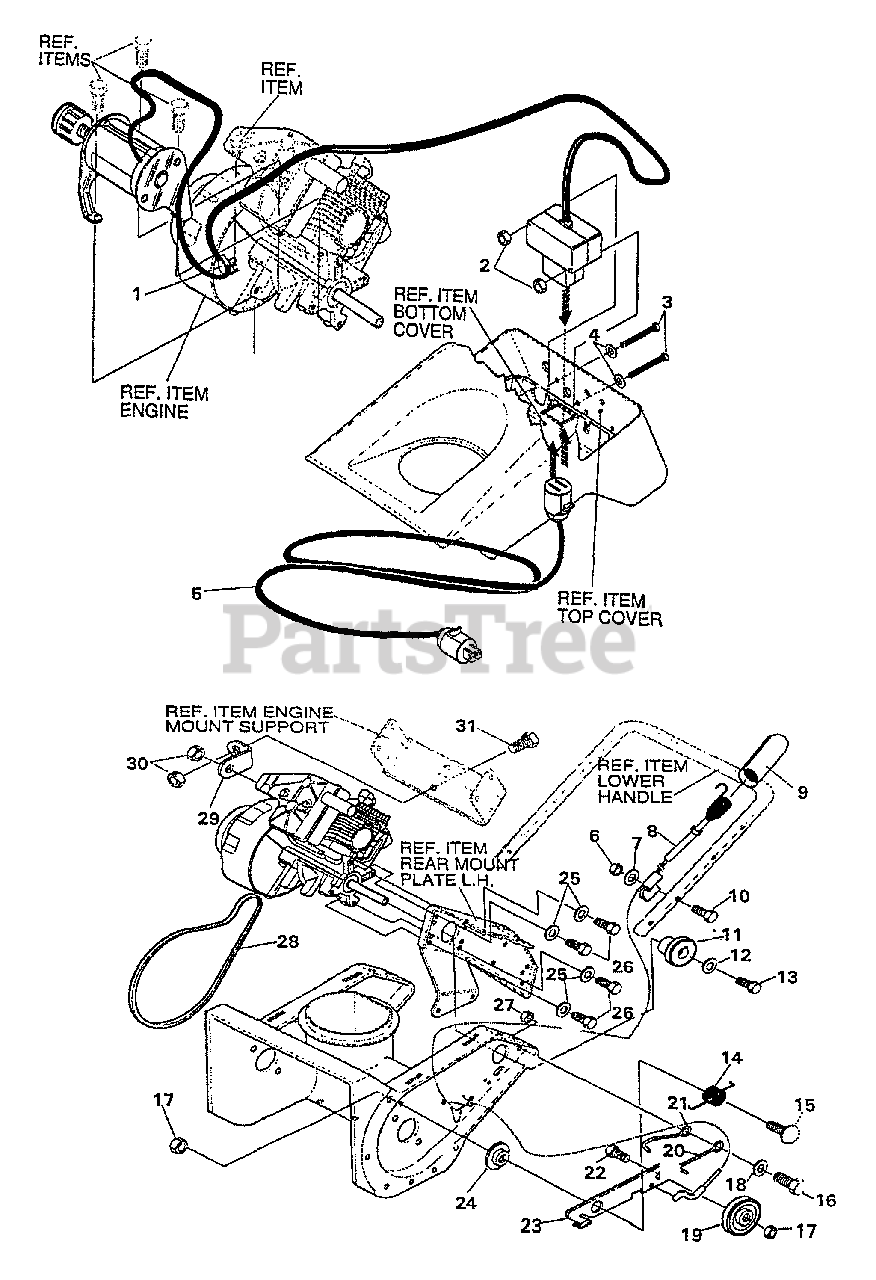

ST-5000 - Echo Snow Thrower (SN: 5001002 - 5001627) Electric Starter, Auger Drive System Parts Diagram

Snow Thrower

Electric Starter, Auger Drive System Parts Diagram

  • Title

1

Echo 14057569

RETAINER, WIRE
(Superseded to Discontinued)

$

$

Not available

2

Echo 14271163

NUT - 8-32 -- KEPS
(Superseded to Discontinued)

$

$

Not available

3

Echo 14311633

SCREW - 8-32 X 3"
(Superseded to Discontinued)

$

$

Not available

4

Echo 14414106

WASHER - .188 X .38 X .040"
(Superseded to Discontinued)

$

$

Not available

5

Echo 14056023

CORD, EXTENSION 10 FEET
(Superseded to Discontinued)

$

$

Not available

6

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

7

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

8

Echo 14316001

CABLE, DRIVE CONTROL
(Superseded to Discontinued)

$

$

Not available

9

Echo 14314142

COVER, CABLE HOLDER

$1.49

$

Usually ships in 2-4 days

0

10

Echo 14070971

SCREW - 1/4-20 X 1-1/2"
(Superseded to Discontinued)

$

$

Not available

11

Echo 14313595

PULLEY HALF, 3L, 2.00
(Superseded to Discontinued)

$

$

Not available

12

Echo 14045602

WASHER
(Superseded to Discontinued)

$

$

Not available

13

Echo 14300637

SCREW - 5/16-24 X 7/8"
(Superseded to Discontinued)

$

$

Not available

14

Echo 14320150

SPRING, BRAKE

$5.49

$

Usually ships in 2-4 days

0

15

Echo 14318472

BOLT, IDLER ARM
(Superseded to Discontinued)

$

$

Not available

16

Echo 14180122

SCREW - 3/8-16 X 1"
(Superseded to Discontinued)

$

$

Not available

17

Echo 14041529

LOCKNUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

18

Echo 14120394

WASHER
(Superseded to Discontinued)

$

$

Not available

19

Echo 14301856

IDLER PULLEY, 1.88X.5X.38

$17.99

$

Usually ships in 2-4 days

0

20

Echo 14313243

GUIDE, BELT .381DX3.30 OFF
(Superseded to Discontinued)

$

$

Not available

21

Echo 14313244

GUIDE, BELT .381DX2.66
(Superseded to Discontinued)

$

$

Not available

22

Echo 14312502

BOLT - 3/8-16 X 1.25"
(Superseded to Discontinued)

$

$

Not available

23

Echo 14301418

BRACKET, IDLER ARM
(Superseded to Discontinued)

$

$

Not available

24

Echo 14310176

SPACER
(Superseded to Discontinued)

$

$

Not available

25

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

26

Echo 14180077

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

27

Echo 14001499

NUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

28

Echo 14325890

BELT, V3LX35, .048 D
(Superseded to 14325891)

$21.99

$

Usually ships in 2-4 days

0

29

Echo 14301415

SUPPORT, ENGINE
(Superseded to Discontinued)

$

$

Not available

30

Echo 14001498

NUT - 5/16-18

$2.49

$

Usually ships in 2-4 days

0

31

Echo 14180073

SCREW - 5/16-18 X 1/2"
(Superseded to Discontinued)

$

$

Not available

Echo ST-5000

HSK850-8306A

Note: ENGINE

$

$

Currently unavailable

Echo ST-5000E

HSK850-8303A

Note: ENGINE

$

$

Currently unavailable
