ST-5000 E - Echo Snow Thrower (Type 1E) (1998) Handle Assembly, Decals Parts Diagram

Snow Thrower (Type 1E)

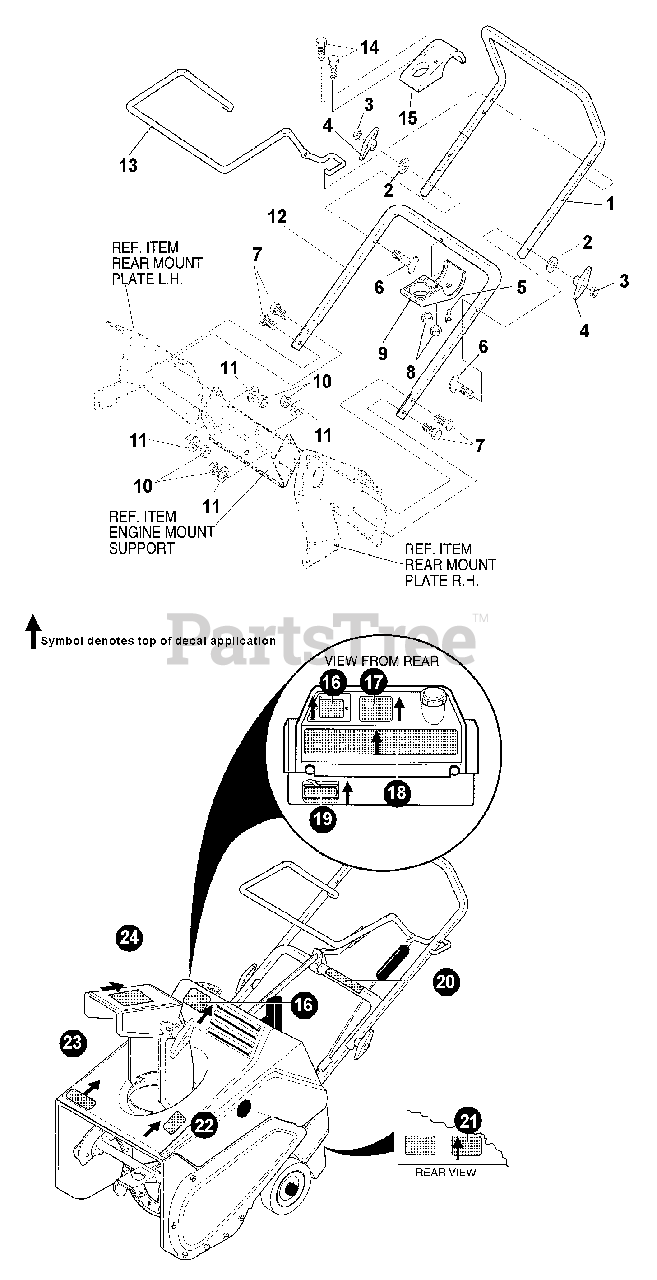

Handle Assembly, Decals Parts Diagram

  • Title
1

Echo 14337408

HANDLE ASSY - UPPER
(Superseded to Discontinued)

$

$

Not available

2

Echo 14022025

WASHER
(Superseded to Discontinued)

$

$

Not available

3

Echo 14120376

NUT - 5/16-18

$1.99

$

Usually ships in 2-4 days

0

4

Echo 14013527

KNOB, T 2 BLADE W/5/16-18 NUT

$2.99

$

In Stock, only 1 left!

0

5

Echo 14310169

SCREW - 1/4-20 X .63" -- TAPPING

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14337584

BOLT, 5/16-18 X 2.00

$0.99

$

Usually ships in 2-4 days

0

7

Echo 14180077

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

8

Echo 14071055

LOCKNUT - 10-24

$0.99

$

Usually ships in 2-4 days

0

9

Echo 14308716

BRKT HALF, CHUTE CRANK
(Superseded to Discontinued)

$

$

Not available

10

Echo 14001498

NUT - 5/16-18

$2.49

$

Usually ships in 2-4 days

0

11

Echo 14120393

WASHER

$1.49

$

Usually ships in 2-4 days

0

12

Echo 14309964

HANDLE - LOWER
(Superseded to Discontinued)

$

$

Not available

13

Echo 14302417

BAR, DRIVE CONTROL LOOP
(Superseded to Discontinued)

$

$

Not available

14

Echo 14309815

SCREW - 10-24 X 1.00"

$0.99

$

Usually ships in 2-4 days

0

15

Echo 14308715

BRKT HALF, CHUTE CRANK
(Superseded to Discontinued)

$

$

Not available

16

Echo 14402609

LABEL - ECHO -- ST-5000E
(Superseded to Discontinued)

Note: For model ST-5000

$

$

Not available

16

Echo 14402608

LABEL - ECHO -- ST-5000E

Note: For model ST-5000E

$2.99

$

Usually ships in 2-4 days

0

17

Echo 14325768

LABEL - STARTING

$3.99

$

Usually ships in 2-4 days

0

18

Echo 14325050

LABEL - CONTROL PANEL
(Superseded to Discontinued)

Note: For model ST-5000

$

$

Not available

18

Echo 14313296

LABEL - CONTROL PANEL

Note: For model ST-5000E

$6.49

$

Usually ships in 2-4 days

0

19

Echo 14318494

LABEL - CHOKE

$1.49

$

Usually ships in 2-4 days

0

20

Echo 14337524

LABEL - AUGER CONTROL BAR
(Superseded to Discontinued)

$

$

Not available

21

Echo 14761032

LABEL - EPA
(Superseded to Discontinued)

$

$

Not available

22

Echo 14070141

LABEL - DANGER

$2.49

$

Usually ships in 2-4 days

0

23

Echo 14325458

LABEL - ECHO
(Superseded to Discontinued)

$

$

Not available

24

Echo 14326162

LABEL - DANGER
(Superseded to Discontinued)

$

$

Not available
