ST-5000 E - Echo Snow Thrower (SN: 0001001 - 0001456) Electric Starter, Auger Drive System Parts Diagram

Snow Thrower

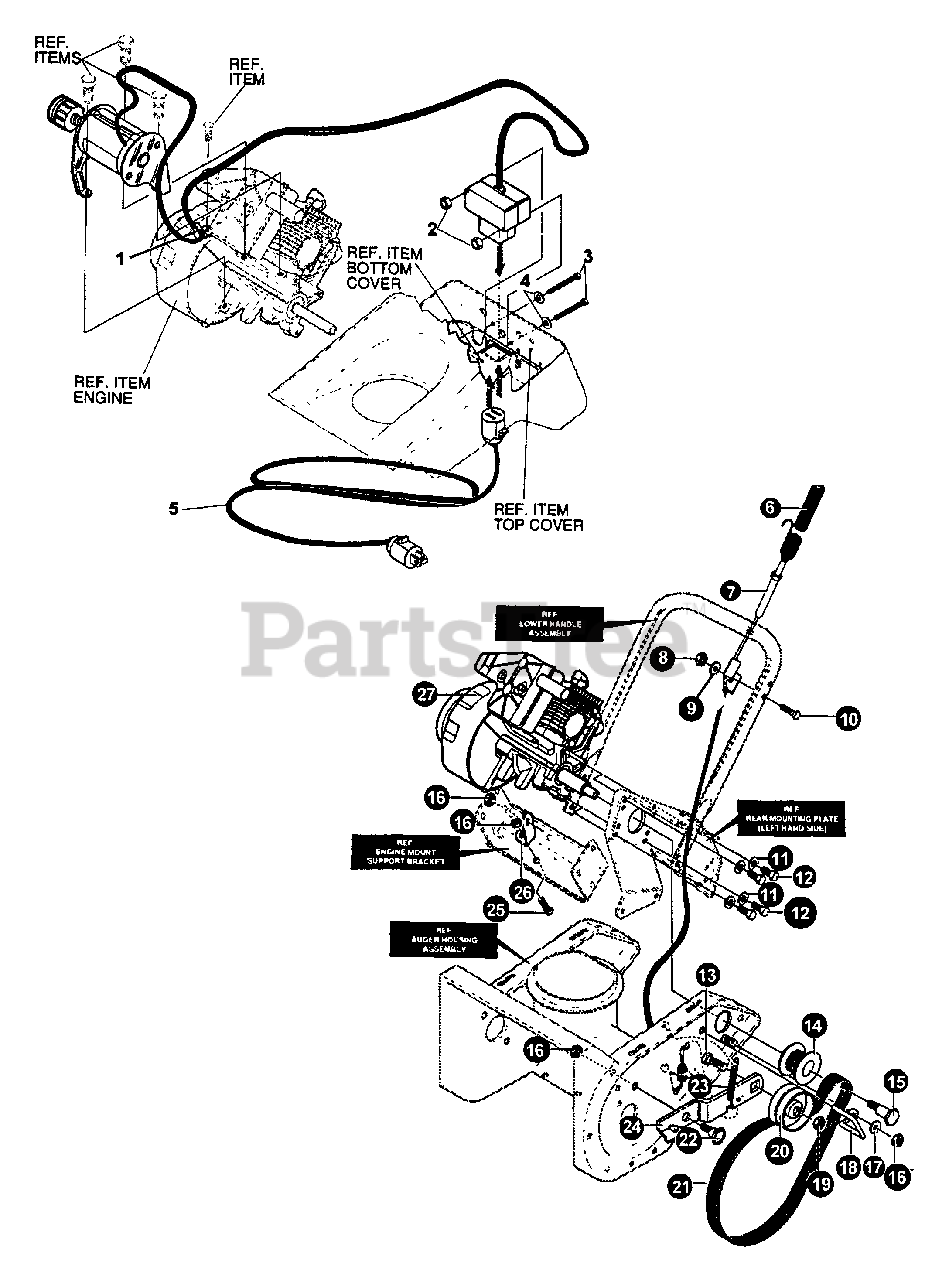

Electric Starter, Auger Drive System Parts Diagram

  • Title
1

Echo 14057569

RETAINER, WIRE
(Superseded to Discontinued)

$

$

Not available

2

Echo 14271163

NUT - 8-32 -- KEPS
(Superseded to Discontinued)

$

$

Not available

3

Echo 14311633

SCREW - 8-32 X 3"
(Superseded to Discontinued)

$

$

Not available

4

Echo 14414106

WASHER - .188 X .38 X .040"
(Superseded to Discontinued)

$

$

Not available

5

Echo 14056023

CORD, EXTENSION 10 FEET
(Superseded to Discontinued)

$

$

Not available

6

Echo 14314142

COVER, CABLE HOLDER

$1.49

$

Usually ships in 2-4 days

0

7

Echo 14316001

CABLE, DRIVE CONTROL
(Superseded to Discontinued)

$

$

Not available

8

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

9

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

10

Echo 14070971

SCREW - 1/4-20 X 1-1/2"
(Superseded to Discontinued)

$

$

Not available

11

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

12

Echo 14180077

SCREW - 5/16-18 X 3/4"

$1.49

$

Usually ships in 2-4 days

0

13

Echo 14045892

BOLT - 3/8-16 X 1-1/2"
(Superseded to Discontinued)

$

$

Not available

14

Echo 14333784

PULLEY, 4.5 HP
(Superseded to Discontinued)

$

$

Not available

15

Echo 14333805

BOLT, SHOULDER .625 X .282
(Superseded to Discontinued)

$

$

Not available

16

Echo 14001498

NUT - 5/16-18

$2.49

$

Usually ships in 2-4 days

0

17

Echo 14120386

WASHER - .312 X .73 X .065
(Superseded to Discontinued)

$

$

Not available

18

Echo 14340428

GUIDE, BELT 21"
(Superseded to Discontinued)

$

$

Not available

19

Echo 14041529

LOCKNUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

20

Echo 14048924

PULLEY, IDLER BB 1.88 OD

$16.99

$

Usually ships in 2-4 days

0

21

Echo 14333721

BELT, 10 RIB
(Superseded to Discontinued)

$

$

Not available

22

Echo 14333594

BOLT, .500 X .177 HHSH 5/16-18
(Superseded to Discontinued)

$

$

Not available

23

Echo 14339017

SPRING, IDLER BRAKE

$1.49

$

Usually ships in 2-4 days

0

24

Echo 14339415

BRACKET, IDLER ARM
(Superseded to Discontinued)

$

$

Not available

25

Echo 14180073

SCREW - 5/16-18 X 1/2"
(Superseded to Discontinued)

$

$

Not available

26

Echo 14301415

SUPPORT, ENGINE
(Superseded to Discontinued)

$

$

Not available

27

------------------

ENGINE, 5.0 HP

Note: SEE ENGINE MANUAL

$

$

Not available
