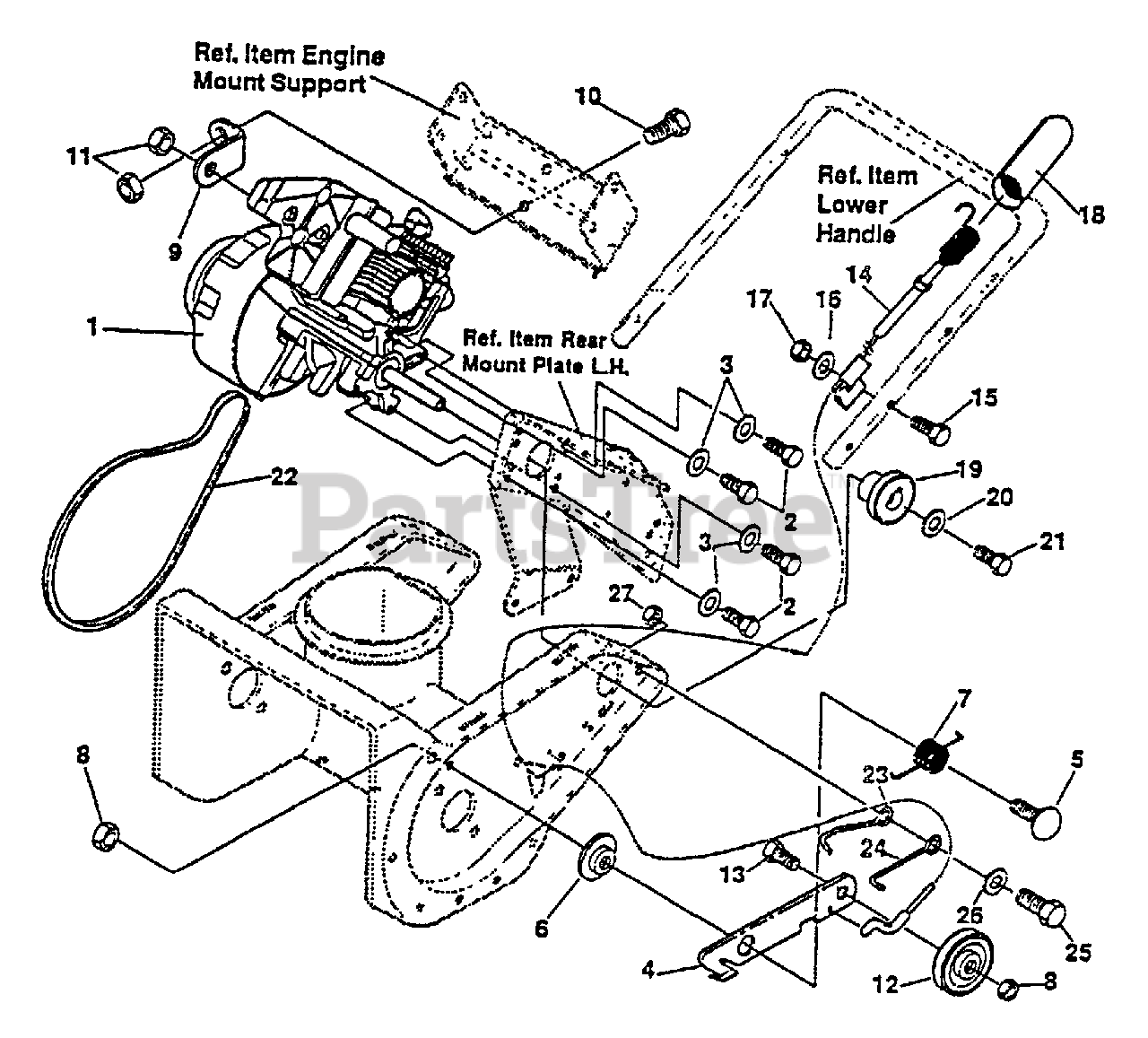

ST-4500 - Echo Snow Thrower (SN: 5001018329934 - 5001171329934) Auger Drv Sys Parts Diagram

Snow Thrower

Auger Drv Sys Parts Diagram

  • Title
1

------------------

TECUMSEH HSK50-67337L

Note: S/N 5001018329934 - 5001171329934

$

$

Not available

1

------------------

TECUMSEH HSK840-8220A

Note: S/N 5001181329934 & up recoil start

$

$

Not available

1

------------------

TECUMSEH HSK840-8217A

Note: S/N 5001181329934 & up electric start

$

$

Not available

2

Echo 14181593

SCREW
(Superseded to Discontinued)

$

$

Not available

3

Echo 14120638

LOCKWASHER

$0.99

$

Usually ships in 2-4 days

0

4

Echo 14301418

BRACKET, IDLER ARM
(Superseded to Discontinued)

$

$

Not available

5

Echo 14318472

BOLT, IDLER ARM
(Superseded to Discontinued)

$

$

Not available

6

Echo 14310176

SPACER
(Superseded to Discontinued)

$

$

Not available

7

Echo 14320150

SPRING, BRAKE

$5.49

$

Usually ships in 2-4 days

0

8

Echo 14041529

LOCKNUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available

9

Echo 14301415

SUPPORT, ENGINE
(Superseded to Discontinued)

$

$

Not available

10

Echo 14180073

SCREW - 5/16-18 X 1/2"
(Superseded to Discontinued)

$

$

Not available

11

Echo 14001498

NUT - 5/16-18

$2.49

$

Usually ships in 2-4 days

0

12

Echo 14301856

IDLER PULLEY, 1.88X.5X.38

$17.99

$

Usually ships in 2-4 days

0

13

Echo 14312502

BOLT - 3/8-16 X 1.25"
(Superseded to Discontinued)

$

$

Not available

14

Echo 14316001

CABLE, DRIVE CONTROL
(Superseded to Discontinued)

$

$

Not available

15

Echo 14070971

SCREW - 1/4-20 X 1-1/2"
(Superseded to Discontinued)

$

$

Not available

16

Echo 14120392

WASHER

$0.99

$

Usually ships in 2-4 days

0

17

Echo 14001502

NUT - 1/4-20

$0.99

$

Usually ships in 2-4 days

0

18

Echo 14314142

COVER, CABLE HOLDER

$1.49

$

Usually ships in 2-4 days

0

19

Echo 14313595

PULLEY HALF, 3L, 2.00
(Superseded to Discontinued)

$

$

Not available

20

Echo 14045602

WASHER
(Superseded to Discontinued)

$

$

Not available

21

Echo 14300637

SCREW - 5/16-24 X 7/8"
(Superseded to Discontinued)

$

$

Not available

22

Echo 14325890

BELT, V3LX35, .048 D
(Superseded to 14325891)

$21.99

$

Usually ships in 2-4 days

0

23

Echo 14313244

GUIDE, BELT .381DX2.66
(Superseded to Discontinued)

$

$

Not available

24

Echo 14313243

GUIDE, BELT .381DX3.30 OFF
(Superseded to Discontinued)

$

$

Not available

25

Echo 14180122

SCREW - 3/8-16 X 1"
(Superseded to Discontinued)

$

$

Not available

26

Echo 14120394

WASHER
(Superseded to Discontinued)

$

$

Not available

27

Echo 14001499

NUT - 3/8-16
(Superseded to Discontinued)

$

$

Not available
