ST-4500 E - Echo Snow Thrower (SN: 5001181329934 - 5001999999999) Primer, Stop Switch, Belt Cover Parts Diagram

Snow Thrower

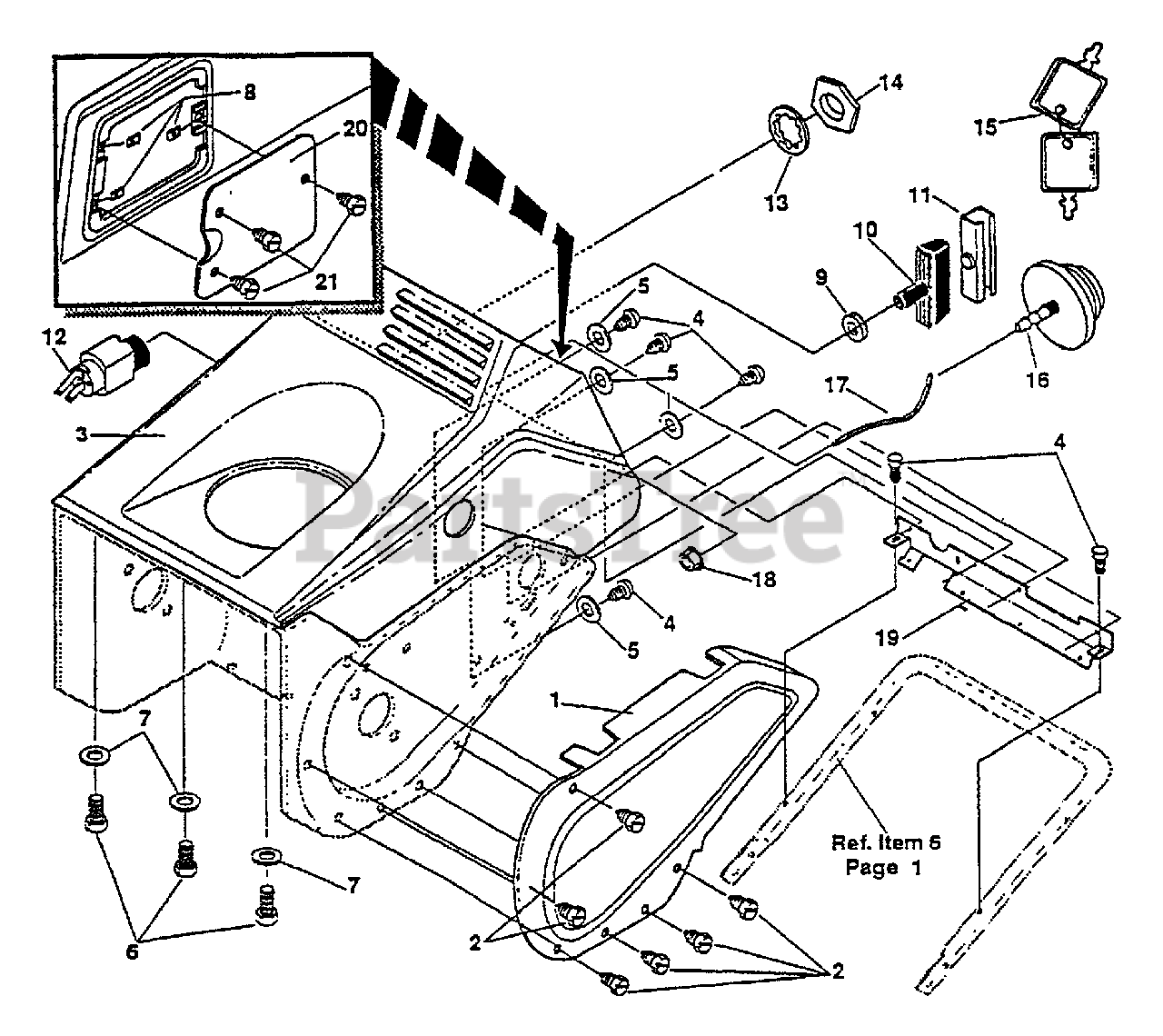

Primer, Stop Switch, Belt Cover Parts Diagram

  • Title

1

Echo 14302416

COVER, BELT

$27.99

$

Usually ships in 2-4 days

0

2

Echo 14310798

SCREW
(Superseded to Discontinued)

$

$

Not available

3

Echo 14307468

COVER - TOP
(Superseded to Discontinued)

$

$

Not available

4

Echo 14309814

SCREW - 10-24 X .63"
(Superseded to Discontinued)

$

$

Not available

5

Echo 14303041

WASHER

$0.99

$

Usually ships in 2-4 days

0

6

Echo 14309813

SCREW - 10-14 X .63"
(Superseded to Discontinued)

$

$

Not available

7

Echo 14120385

WASHER
(Superseded to Discontinued)

$

$

Not available

8

Echo 14309811

NUT
(Superseded to Discontinued)

$

$

Not available

9

Echo 14057587

GROMMET & WASHER, ROPE GUIDE

$2.99

$

Usually ships in 2-4 days

0

10

Echo 14313231

KNOB, SHORT SHANK
(Superseded to Discontinued)

$

$

Not available

11

Echo 14056775

INSERT METAL, KNOB
(Superseded to Discontinued)

$

$

Not available

12

Echo 14056992

SWITCH, IGNITION

$14.99

$

Usually ships in 2-4 days

0

13

Echo 14138557

WASHER
(Superseded to Discontinued)

$

$

Not available

14

Echo 14048140

NUT
(Superseded to Discontinued)

$

$

Not available

15

Echo 14049643

KEYS & RING ASSY

$1.99

$

Usually ships in 2-4 days

0

16

Echo 14054601

PRIMER, ENGINE 2CY
(Superseded to Discontinued)

$

$

Not available

17

Echo 14001259

HOSE, PRIM 5.75 LONG

$3.49

$

Usually ships in 2-4 days

0

18

Echo 14303008

NUT - 1/4-20 -- KEPS
(Superseded to Discontinued)

$

$

Not available

19

Echo 14307469

BRACKET, SHROUD MNTG
(Superseded to Discontinued)

$

$

Not available

20

Echo 14307470

DOOR, ACCESS
(Superseded to Discontinued)

$

$

Not available

21

Echo 14312362

SCREW - 10-16 X .75"

$0.99

$

Usually ships in 2-4 days

0
