ST 430 - Husqvarna 30" Snow Blower CHASSIS, ENGINE & PULLEYS Parts Diagram

30" Snow Blower

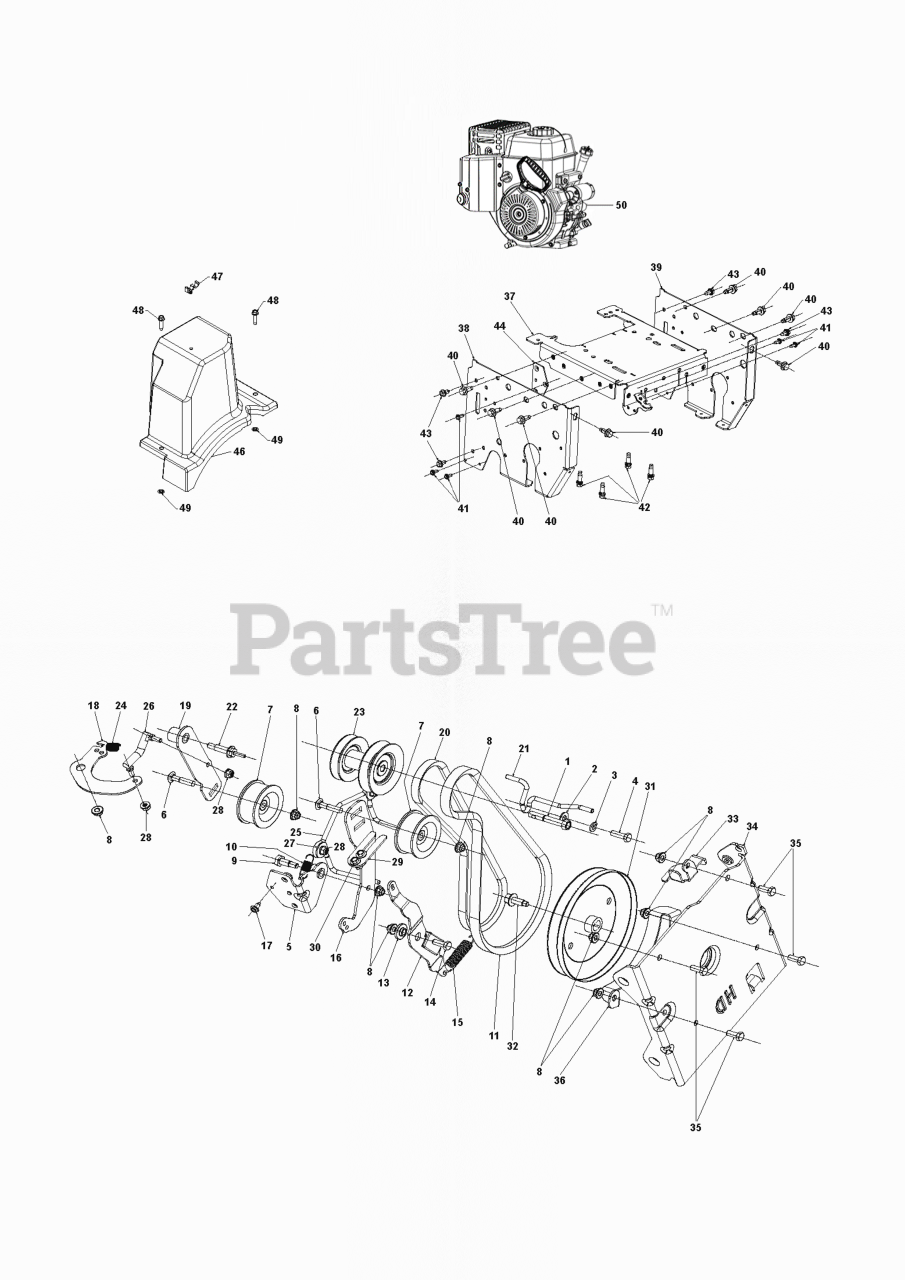

CHASSIS, ENGINE & PULLEYS Parts Diagram

  • Title

18

Husqvarna 589289902

Bell Cranks

$5.99

$

Usually ships in 3-10 days

0

25

Husqvarna 589760701

GUIDE BELT - HYDRO 2 WITH FAN

$6.99

$

Usually ships in 3-10 days

0

32

Husqvarna 595517901

SCREW HEXAGON HEAD FLANGE 3/8-

$4.99

$

In Stock, only 1 left!

0

11

Husqvarna 589262602

BELT 5L 39.15L

$26.99

$

Usually ships in 3-10 days

0

7

Husqvarna 589262702

Pulleys

$12.99

$

Usually ships in 3-10 days

0

15

Husqvarna 579763501

SPRING EXTENSION - BRAKE

$5.99

$

Usually ships in 3-10 days

0

16

Husqvarna 589262902

ARM IDLER BLACK ZINC

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 579763301

ARM IMPELLER BRAKE

$31.99

$

In Stock, only 1 left!

0

50

Husqvarna 592919101

ENGINE LCT 414CC 12.5HP E-GOV

Note: For 96193010400, 96193013101, (See LCT Engine IPL for service parts)

$1941.99

$

Usually ships in 3-10 days

0

19

Husqvarna 589290502

ARM DRIVE IDLER BLACK ZINC PLA

$7.99

$

Usually ships in 3-10 days

0

34

Husqvarna 501595402

BRACKET AUGER HOUSING INTERFAC

$56.99

$

Usually ships in 3-10 days

0

28

Husqvarna 582478602

NUT FLG, NYLOCK, 1/4-20 GR G C

$2.49

$

In Stock, Qty 20+

0

2

Husqvarna 596204101

WASHER 11/32 X 11/16 X 14 GA T

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 592917802

Guides

$5.99

$

Usually ships in 3-10 days

0

38

Husqvarna 583808403

Frames

$51.99

$

Usually ships in 3-10 days

0

50

Husqvarna 598610502

ENGINE RATO 420CC (EFI)

Note: For 97052960100, (See Husqvarna Engine IPL for service parts)

$1595.99

$

Usually ships in 3-10 days

0

9

Husqvarna 589263601

SCREW HEX HEAD SHOULDER

Note: For 96193013101, 96193010400

$6.99

$

Usually ships in 3-10 days

0

46

Husqvarna 587105501

COVER BELT ASM HIGH CRANK
(Superseded to 585771101)

$31.99

$

In Stock, only 1 left!

0

21

Husqvarna 598644501

Belt Keepers

Note: For 97052960100

$4.99

$

Usually ships in 3-10 days

0

20

Husqvarna 589290601

BELT 4L DRIVE

$13.99

$

Usually ships in 3-10 days

0

36

Husqvarna 581632002

BRACKET.BELT.KEEPER.LOWER.BLAC

$7.49

$

In Stock, only 4 left!

0

14

Husqvarna 596322201

BOLT HEXAGON BOLT 5/16-18 X 7/

$3.99

$

In Stock, only 2 left!

0

5

Husqvarna 589263402

BRACKET WELDMENT, IDLER ARM ZI

$8.99

$

Usually ships in 3-10 days

0

39

Husqvarna 583808404

Frames

$51.99

$

Usually ships in 3-10 days

0

1

Husqvarna 598758701

BOLTS

Note: For 97052960100

$2.49

$

Usually ships in 3-10 days

0

48

Husqvarna 585691101

SCREW HEX WASH THDRL BLK 1_4-

$3.49

$

In Stock, only 4 left!

0

23

Husqvarna 598816002

PULLEY 5L HYDRO

Note: For 97052960100

$34.99

$

Usually ships in 3-10 days

0

41

Husqvarna 817060410

SCREW 14-20 X 5/8

$7.49

$

Usually ships in 3-10 days

0

24

Husqvarna 589481601

SPRING EXTENSION - DRIVE

$2.49

$

Usually ships in 3-10 days

0

40

Husqvarna 595517901

SCREW HEXAGON HEAD FLANGE 3/8-

$4.99

$

In Stock, only 1 left!

0

31

Husqvarna 589263801

PULLEY IMPELLER DD 5L HD

$34.99

$

Usually ships in 3-10 days

0

33

Husqvarna 589262505

GUIDE BZP

$6.99

$

Usually ships in 3-10 days

0

30

Husqvarna 585517801

HEX.WASHER.HEAD 1/4-20 X .65

$4.99

$

In Stock, only 4 left!

0

21

Husqvarna 589290701

GUIDE BELT - 4L HYDRO, 5L IMPE

Note: For 96193013101, 96193010400

$5.99

$

Usually ships in 3-10 days

0

22

Husqvarna 589290801

GUIDE BELT, SHOULDER SCREW

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 874610516

SCREW

$4.99

$

In Stock, only 4 left!

0

47

Husqvarna 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

13

Husqvarna 587343701

BUSHING.BRAKE.ARM

$6.99

$

Usually ships in 3-10 days

0

27

Husqvarna 513918900

WASHER

$3.49

$

Usually ships in 3-10 days

0

26

Husqvarna 590720701

LINK ASSY DRIVE IDLER

$28.99

$

Usually ships in 3-10 days

0

10

Husqvarna 589263701

SPRING IDLER RETURN

$5.99

$

Usually ships in 3-10 days

0

23

Husqvarna 589262202

PULLEY WELDMENT

Note: For 96193013101, 96193010400

$26.99

$

Usually ships in 3-10 days

0

49

Husqvarna 532423062

PALNUT 1/4

$4.99

$

In Stock, only 4 left!

0

Husqvarna 582388401

BOLT.ENGINE.PULLEY

Note: For 96193013101, 96193010400

$5.99

$

Usually ships in 3-10 days

0

42

Husqvarna 532150406

BOLT 3/8-16X1-1/8

$7.49

$

Usually ships in 3-10 days

0

43

Husqvarna 532428867

BOLT.HEX.HD.WASHER.5/16-18X.75

$6.49

$

In Stock, Qty 13

0

35

Husqvarna 596030501

SCREW HEXAGON HEAD SCREW 5/16-

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 596238801

WASHER SPRING LOCK WASHER WITH

$3.99

$

In Stock, only 4 left!

0

44

Husqvarna 590044602

BRACKET NUT BLACK ZINC PLATE

$5.99

$

Usually ships in 3-10 days

0

8

Husqvarna 594944401

NUT HEXAGON FLANGE 5/16-18 ST

$6.99

$

In Stock, Qty 20+

0

6

Husqvarna 589284501

BOLT 5/16-18 CARRIAGE 1.5L

$6.99

$

Usually ships in 3-10 days

0

37

Husqvarna 583808002

Frames

$74.99

$

Usually ships in 3-10 days

0

9

Husqvarna 889263601

NEEDS DESCRIPTION

Note: For 97052960100

$

$

Currently unavailable

17

Husqvarna 817060408

SCREW

$5.99

$

In Stock, only 2 left!

0
