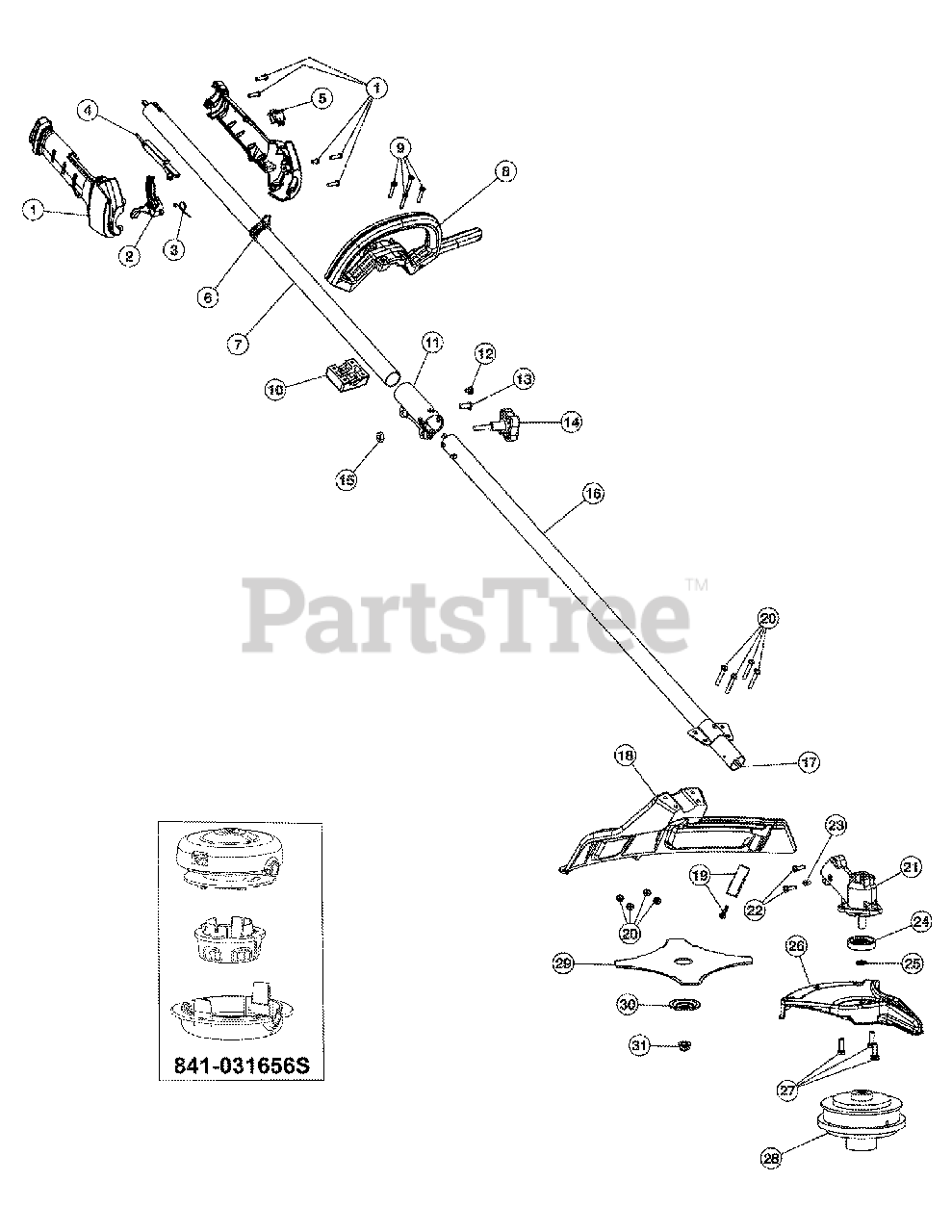

ST 428 (41AD4S8C012) - Cub Cadet String Trimmer (2012) General Assembly Parts Diagram

String Trimmer

General Assembly Parts Diagram

  • Title

1

Cub Cadet 753-05296

Throttle Housing Assembly (includes 2 - 5)
(Superseded to 753-09645)

$12.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 753-06961

Throttle Trigger

$3.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 753-05007

Spring

$5.49

$

In Stock, only 3 left!

0

4

Cub Cadet 753-06962

Throttle Lock-out

$2.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 791-182405

Switch

$10.99

$

In Stock, Qty 12

0

6

Cub Cadet 791-610327

Shoulder Strap Clip

$32.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-06963

Upper Drive Shaft Housing Assembly

$19.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 753-05008

D-Handle Assembly (includes 9 & 10)

$31.99

$

In Stock, only 2 left!

0

9

Cub Cadet 753-05009

Handle Base

$7.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 791-181070

Screw

$4.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 753-06585

Split Boom Coupler (includes 12 - 15)

$9.49

$

In Stock, only 4 left!

0

12

Cub Cadet 791-182057

Coupler Anti-Rotation Screw

$4.49

$

In Stock, only 3 left!

0

13

Cub Cadet 791-181617

Screw

$5.49

$

In Stock, Qty 11

0

14

Cub Cadet 791-181618B

Adjustment Knob
(Superseded to 791-181981)

$

$

Not available

15

Cub Cadet 712-04018A

Knob Retaining Nut

$4.49

$

In Stock, Qty 5

0

16

Cub Cadet 753-06964

Lower Drive Shaft Housing Assembly (includes 17)

$21.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 753-05267

Lower Flexible Drive Shaft

$42.99

$

In Stock, only 1 left!

0

18

Cub Cadet 753-05820

Shield Assembly (includes 19)

$24.99

$

In Stock, only 3 left!

0

19

Cub Cadet 753-05821

Blade Assembly

$9.49

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-05822

Shield Mounting Screw & Nut

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 791-182193

Gearbox

$99.99

$

In Stock, only 2 left!

0

22

Cub Cadet 791-182195

Gearbox Mounting Hardware

$7.49

$

In Stock, Qty 20+

0

23

Cub Cadet 791-145569

Anti-Rotation Screw

$9.99

$

In Stock, Qty 7

0

24

Cub Cadet 791-182196

Blade Driver

$22.99

$

In Stock, only 1 left!

0

25

Cub Cadet 753-04348

Palnut

$6.99

$

In Stock, only 3 left!

0

26

Cub Cadet 791-147492

Blade Shield

$126.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 791-182200

Blade Shield Mounting Hardware

$6.99

$

In Stock, only 2 left!

0

28

Cub Cadet 796-00072

Cutting Head Assembly
(Superseded to 841-032392S)

$23.99

$

In Stock, only 2 left!

0

29

Cub Cadet 791-145873B

4-Tooth Blade

$42.99

$

In Stock, only 3 left!

0

30

Cub Cadet 791-147490

Retaining Washer

$11.99

$

In Stock, only 4 left!

0

31

Cub Cadet 791-181699

Nut
(Superseded to 712-04105)

$10.99

$

Usually ships in 3-6 days

0

841-031656S

Cub Cadet 841-031656S

Cutting Head Assembly
(Superseded to 841-032392S)

Note: (replaces 796-00072)

$23.99

$

In Stock, only 2 left!

0

Cub Cadet 753-08163

Bump Knob

Note: (use with 841-031656S)

$3.49

$

In Stock, Qty 19

0

Cub Cadet 49U2341K953

Round Line-.095, 40' Trimmer Line

Note: (Optional Accessory)(not shown)

$

$

Not available

Cub Cadet WLM-195

Maxi Edge .095, 200' Trimmer Line

Note: (Optional Accessory)(not shown)

$14.99

$

In Stock, only 4 left!

0

Cub Cadet 49M2027P953

Electric Starter
(Superseded to 625-04120)

Note: (Optional Accessory)(not shown)

$77.99

$

Usually ships in 3-6 days

0

Cub Cadet 49MESCBP912

Engine Start Bit
(Superseded to 49MASCBP953)

Note: (Optional Accessory)(not shown)

$20.99

$

In Stock, only 3 left!

0

Cub Cadet 49MRBESY912

Cordless Electric Starter

Note: (Optional Accessory)(not shown)

$

$

Not available
