ST 426 S (41CD4S6C912) - Cub Cadet String Trimmer (2011) Engine Assembly Parts Diagram

String Trimmer

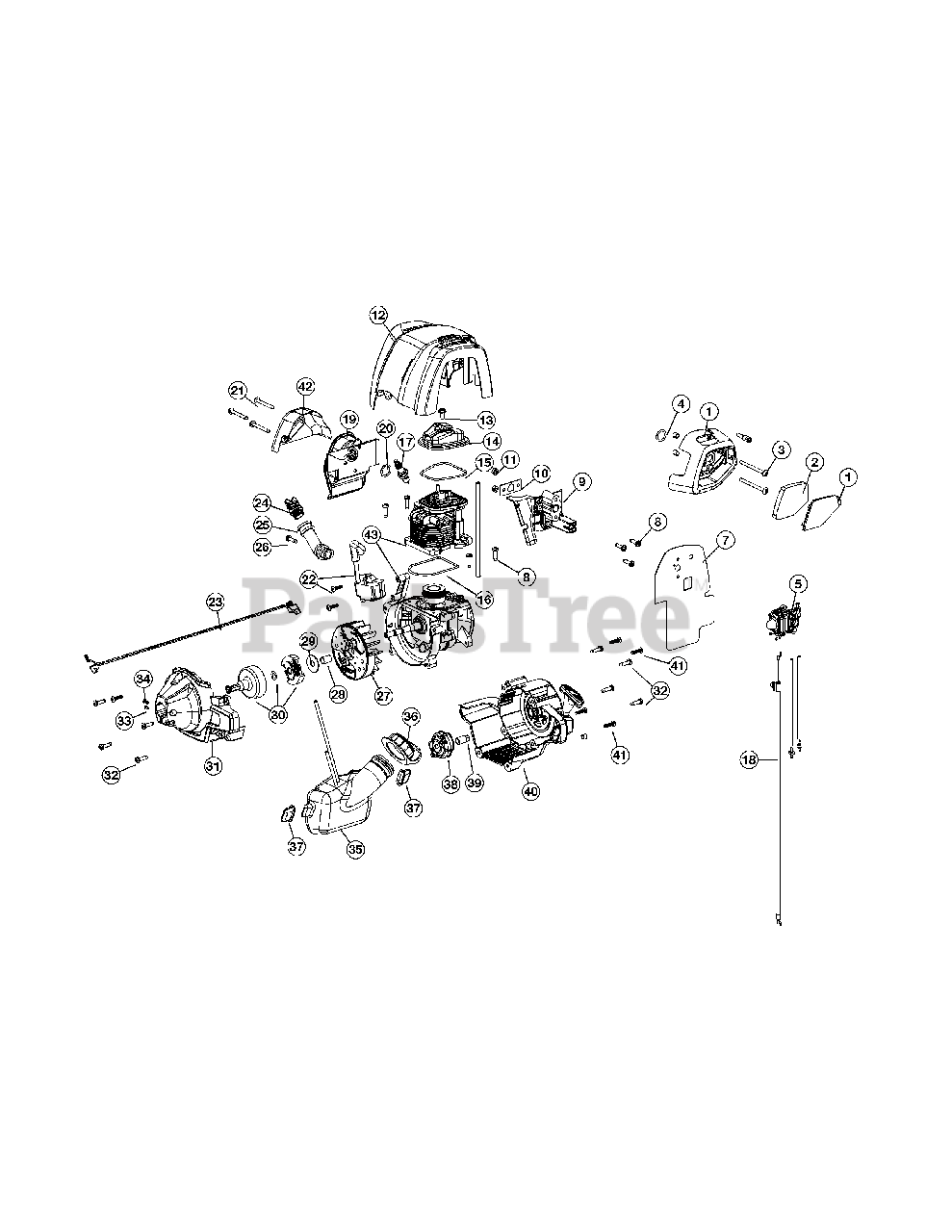

Engine Assembly Parts Diagram

  • Title

1

Cub Cadet 753-06084

Aircleaner Assembly (Incl. Ref No. 2 & 3)

$11.99

$

In Stock, only 1 left!

0

2

Cub Cadet 753-06085

Air Filter

$3.49

$

In Stock, Qty 20+

0

3

Cub Cadet 710-04517

Screw

$5.49

$

In Stock, Qty 20+

0

4

Cub Cadet 791-181751

Carburetor O-Ring

$4.49

$

In Stock, Qty 19

0

5

Cub Cadet 753-06083

Carburetor Assembly

$52.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 753-06082

Carburetor Baffle

$3.99

$

In Stock, Qty 6

0

8

Cub Cadet 791-181003

Screw
(Superseded to 9052-1)

$

$

Not available

9

Cub Cadet 753-05904

Insulator

$8.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 753-05673

Insulator Gasket

$10.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-04099

Nut

$6.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 753-06497

Engine Cover

$

$

Not available

13

Cub Cadet 791-181025

Screw

$2.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 753-05901

Valve Cover

$8.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 753-05902

Valve O-Ring

$5.49

$

In Stock, Qty 11

0

16

Cub Cadet 753-05910

Cylinder O-Ring

$3.49

$

In Stock, only 1 left!

0

17

Cub Cadet 794-00043

Spark Plug
(Superseded to 794-00082)

$7.49

$

In Stock, Qty 5

0

18

Cub Cadet 753-06166

Throttle Cable

$15.99

$

In Stock, only 1 left!

0

19

Cub Cadet 753-06334

Muffler Assembly

$17.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 753-05244

Muffler Gasket

$5.99

$

In Stock, Qty 8

0

21

Cub Cadet 710-04487

Muffler Bolt
(Superseded to 710-04809)

$3.49

$

In Stock, Qty 5

0

22

Cub Cadet 753-05907

Module Assembly

$52.99

$

In Stock, only 1 left!

0

23

Cub Cadet 753-06167

Lead Wires
(Superseded to 794-00047A)

$5.99

$

In Stock, Qty 7

0

24

Cub Cadet 753-05400

Oil Plug Assembly
(Superseded to 753-05408)

$29.99

$

In Stock, only 1 left!

0

25

Cub Cadet 753-06087

Oil Fill Tube Assembly (Incl. Ref No. 26)

$6.49

$

In Stock, Qty 7

0

26

Cub Cadet 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

27

Cub Cadet 753-05815

Flywheel

$23.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 753-05814

Spacer

$4.49

$

In Stock, Qty 7

0

29

Cub Cadet 9162-1

Clutch Washer

$4.49

$

In Stock, only 3 left!

0

30

Cub Cadet 753-05860

Clutch Assembly

$25.99

$

In Stock, Qty 9

0

31

Cub Cadet 753-06335

Clutch Cover Assembly

$5.49

$

In Stock, only 3 left!

0

32

Cub Cadet 710-04604

Screw

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 791-182519

Anti-rotation Screw

$4.99

$

In Stock, only 4 left!

0

34

Cub Cadet 753-04291

Clamp Screw & Nut

$

$

Not available

35

Cub Cadet 753-06093

Fuel Tank (Incl. Ref No. 35)

$23.99

$

In Stock, only 1 left!

0

36

Cub Cadet 753-04084

Fuel Cap

$22.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 753-05259

Fuel Tank Pad

$6.99

$

In Stock, Qty 20+

0

38

Cub Cadet 753-06091

Pawl Assembly

$9.49

$

In Stock, only 2 left!

0

39

Cub Cadet 753-06104

Electric Start Adapter

$4.49

$

In Stock, Qty 20+

0

40

Cub Cadet 753-06108

Starter Cover Assembly

$29.99

$

In Stock, Qty 18

0

41

Cub Cadet 710-04194

Screw

$4.49

$

In Stock, Qty 20+

0

42

Cub Cadet 753-06101

Muffler Shield

$5.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 753-06494

Short Block Assembly

Note: (Incl. Ref No. 8, 13-17, 22, 27 & 28)

$130.99

$

In Stock, only 1 left!

0
