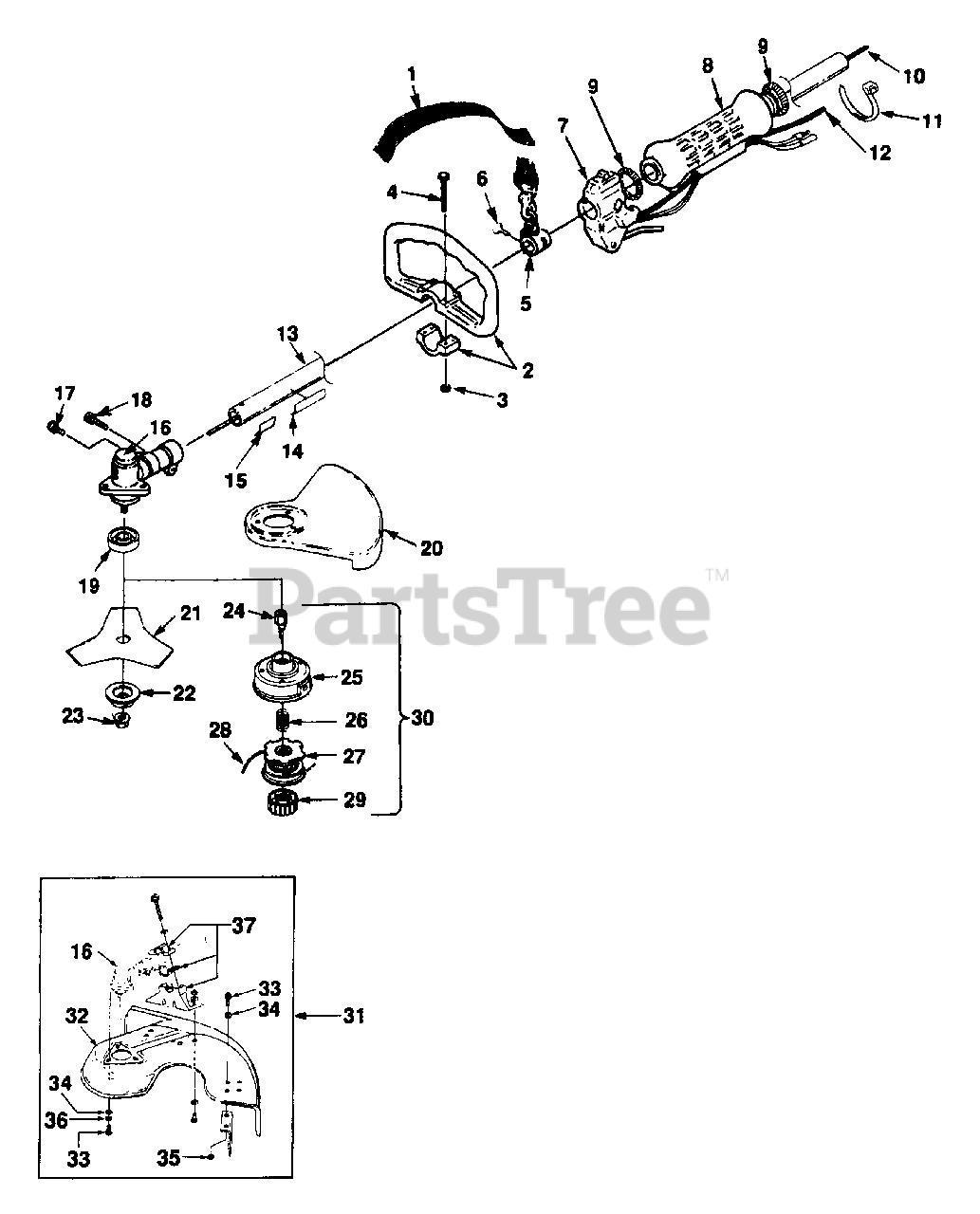

ST 385 (UT-15088-B) - Homelite String Trimmer Boom & Head Parts Diagram

String Trimmer

Boom & Head Parts Diagram

  • Title

1

Homelite DA92703B

HARNESS w/Connector

$

$

Currently unavailable

2

Homelite A00736

HANDLE-Front

$

$

Not available

3

Homelite 00677

NUT-Hex (M5 X 0.8)

$

$

Not available

4

Homelite 00676

SCREW-Hex Hd (M5 X 0.8 X 35)

$

$

Not available

5

Homelite A94442

BRACKET-Hanger

$18.99

$

Usually ships in 3-7 days

0

6

Homelite 82260

SCREW-Thumb (10-24 X 1/2")

$

$

Not available

7

Homelite A00738

THROTTLE & SWITCH w/Lead
(Superseded to UP06617)

$

$

Not available

8

Homelite 00597A

GRIP-Handle

$

$

Currently unavailable

9

Homelite 00737

SPRING-Tension

Note: (HBC-30)

$

$

Not available

10

Homelite 98832

SHAFT-Drive

$

$

Not available

11

Homelite 46840

CABLE-Tie

$

$

Not available

12

Homelite A03004

CABLE-Throttle

$

$

Not available

13

Homelite A03800A

HOUSING-Drive Shaft (Black)
(Superseded to UP04489)

$

$

Currently unavailable

14

Homelite 04458

DECAL-Starting Instructions
(Superseded to UP04130)

$

$

Not available

15

Homelite 02985

DECAL-Warning
(Superseded to 983751001)

$

$

Not available

16

Homelite A03888

GEAR HEAD
(Superseded to UP04120)

$

$

Not available

17

Homelite 88049

SCREW-Sems Hex Hd (10-24 X 1/2")

$

$

Not available

18

Homelite 82586

SCREW-Cap Socket Hd (1/4-20 x 7/8")

$4.99

$

Usually ships in 3-7 days

0

19

Homelite 04168

WASHER-Flange
(Superseded to 04168A)

$10.99

$

Usually ships in 3-7 days

0

20

Homelite 988472

GUARD-Blade

$32.99

$

Usually ships in 3-7 days

0

21

Homelite D98717A

BLADE-Tri-Arc
(Superseded to D98717C)

$21.99

$

In Stock, only 1 left!

0

22

Homelite 04259

WASHER-Flange

$

$

Not available

23

Homelite 04277

NUT-Hex (L.H.)
(Superseded to 678018001)

$

$

Not available

24

Homelite 9855141

CONNECTOR-Drive

$

$

Not available

25

Homelite A98231A

HOUSING & EYELET (Dual Line)
(Superseded to 099068001005)

$

$

Not available

26

Homelite 98848

SPRING-Compression
(Superseded to UP06526)

$1.99

$

In Stock, only 3 left!

0

27

Homelite DA02598A

SPOOL & STRING (Dual Line)

$

$

Currently unavailable

28

Homelite 0395903

LINE-Replacement (1 lb Box, .095" Dia.)
(Superseded to D06514)

$

$

Not available

29

Homelite A97910A

RETAINER-Spool (L.H.) (Red)
(Superseded to 308042003)

$7.49

$

In Stock, Qty 5

0

30

Homelite A03174

STRINGHEAD COMPLETE

$

$

Currently unavailable

31

Homelite A03590A

GRASS DEFLECTOR KIT
(Superseded to A03590B)

$

$

Not available

32

Homelite A0436203

DEFLECTOR & BLADE

$

$

Not available

33

Homelite 82298

SCREW-Mach Hex Hd
(Superseded to 82593)

$4.99

$

Usually ships in 3-7 days

0

34

Homelite 84003

WASHER-Flat

$2.49

$

Usually ships in 3-7 days

0

35

Homelite 81208

NUT-Hex (10-24)

$

$

Not available

36

Homelite 83046

WASHER-Lock

$

$

Not available

37

Homelite A03404

DEFLECTOR BRACKET KIT

$

$

Not available
