ST 385 BC (UT-15040-K) - Homelite String Trimmer Gearhead, Stringhead & Deflectors Parts Diagram

String Trimmer

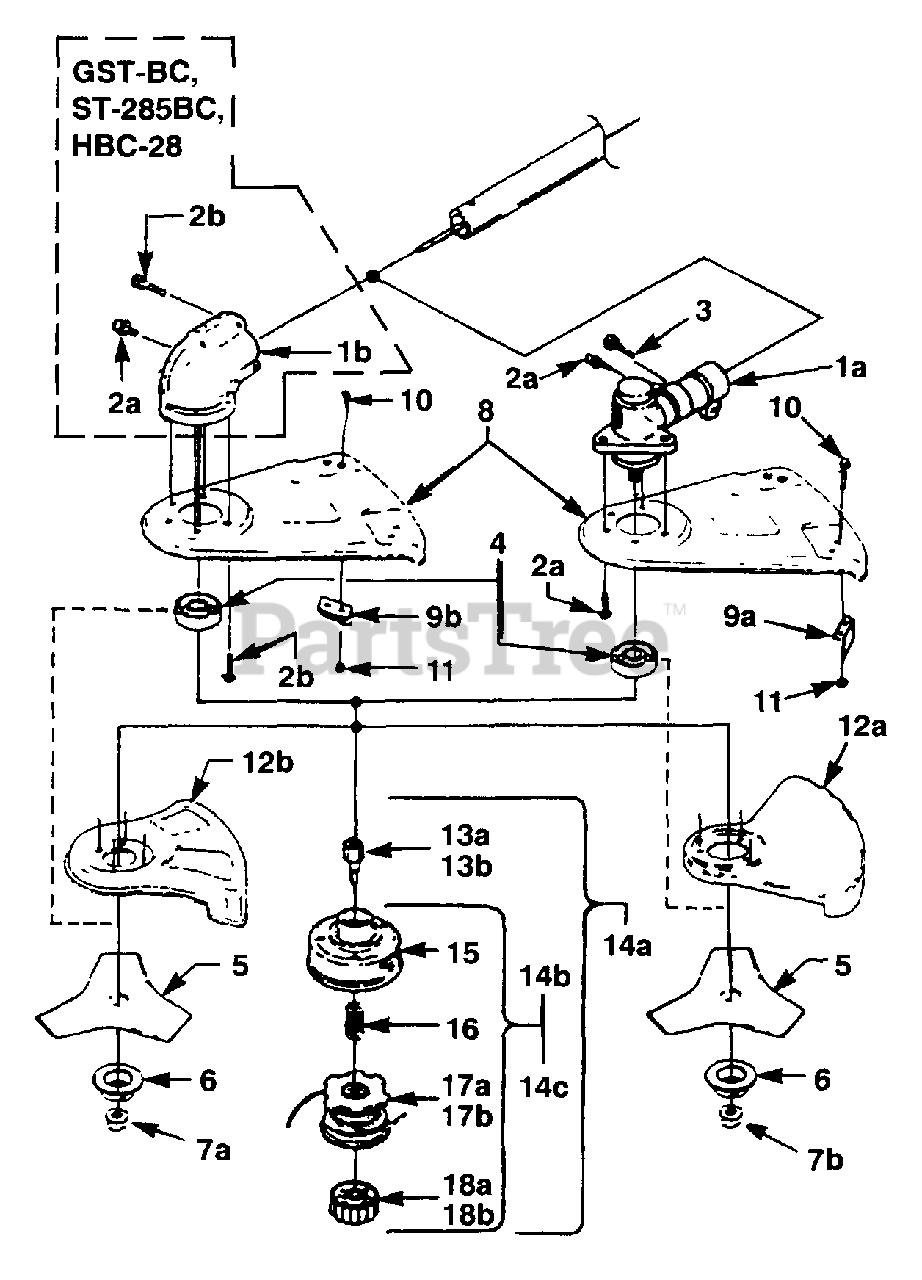

Gearhead, Stringhead & Deflectors Parts Diagram

  • Title

1A

Homelite A03888

GEAR HEAD
(Superseded to UP04120)

Note: ST385-BC

$

$

Not available

1B

Homelite A04836C

GEAR HEAD
(Superseded to UP06970)

Note: ST285-BC, GST-BC, HBC-28; Includes Item #'s 4 and 13b.

$

$

Not available

2A

Homelite 88049

SCREW - Hex Hd (10-24 X 1/2")

Note: Torque Specs. 20-30 In/Lbs, 2.3-3.4 Nm, Red 262 Required Loctite

$

$

Not available

2B

Homelite 82298

SCREW - Hex Hd (10-24 X 5/8")
(Superseded to 82593)

Note: Torque Specs. 20-30 In/Lbs, 2.3-3.4 Nm, Red 262 Required Loctite

$4.99

$

Usually ships in 3-7 days

0

2B

Homelite 82298

SCREW - Hex Hd (10-24 x 5/8)
(Superseded to 82593)

Note: ST285-BC, GST-BC, HBC-28

$4.99

$

Usually ships in 3-7 days

0

3

Homelite 96624

SCREW - Socket Hd (10-24 X 1")

Note: ST385-BC

$

$

Not available

4

Homelite 04168A

WASHER - Flanged
(Superseded to 099078001005)

$10.99

$

Usually ships in 3-7 days

0

5

Homelite D98717C

BLADE - Tri Arc
(Superseded to 638006004)

$21.99

$

Usually ships in 3-7 days

0

6

Homelite 04409

WASHER - Cupped, Lower

$3.99

$

In Stock, only 1 left!

0

7A

Homelite 81282

NUT - Hex Locking (R.H.)
(Superseded to UP03492)

$4.99

$

Usually ships in 3-7 days

0

7B

Homelite 04277

NUT - Hex Locking (L.H.)
(Superseded to 678018001)

$

$

Not available

8

Homelite A04683A

GRASS DEFLECTOR

$

$

Not available

9A

Homelite 07076

BLADE - Cut Off

$

$

Not available

9B

Homelite 00075

BLADE - Cut Off
(Superseded to 07076)

$

$

Not available

10

Homelite 80869

SCREW - Mach. Hex Hd (10-24 X 3/8")

Note: Torque Specs 40-50 In/Lbs, 4.5-5.6 Nm, Red 262 Required Loctite

$

$

Not available

11

Homelite 81208

NUT - Hex (10-24)

$

$

Not available

12A

Homelite 988472

BLADE GUARD

Note: ST385-BC

$32.99

$

Usually ships in 3-7 days

0

12B

Homelite 044101

BLADE GUARD

Note: ST285-BC, GST-BC, HBC-28

$

$

Currently unavailable

13A

Homelite 9855141

SHAFT ADAPTOR (L.H.)

Note: ST385-BC

$

$

Not available

13B

Homelite 04355

SHAFT ADAPTOR (R.H.)

Note: ST285-BC, GST-BC, HBC-28

$19.99

$

Usually ships in 3-7 days

0

14A

Homelite DA03174A

STRINGHEAD COMPLETE (.095" Line)
(Superseded to UP04650A)

Note: ST385-BC

$52.99

$

In Stock, only 1 left!

0

14B

Homelite DA04591A

STRINGHEAD COMPLETE (.095" Line)
(Superseded to DA04591AA)

Note: HBC-28

$103.99

$

In Stock, only 1 left!

0

14C

Homelite DA03001A

STRINGHEAD COMPLETE (.080" Line)
(Superseded to UP04408A)

Note: ST285-BC, GST-BC

$

$

Not available

15

Homelite A98231A

HOUSING & EYELET
(Superseded to 099068001005)

$

$

Not available

16

Homelite 00713

SPRING - Compression

$

$

Currently unavailable

17A

Homelite DA02598C

SPOOL & STRING
(Superseded to UP00147)

Note: ST385-BC, HBC-28

$103.99

$

In Stock, only 1 left!

0

17B

Homelite DA98912E

SPOOL & STRING
(Superseded to 308044002)

Note: ST285-BC, GST-BC

$

$

Not available

18A

Homelite DA97910C

SPOOL RETAINER (L.H.)
(Superseded to UP00104)

Note: ST385-BC

$7.49

$

In Stock, Qty 5

0

18B

Homelite DA98866A

SPOOL RETAINER (R.H.)
(Superseded to UP04273A)

Note: ST285-BC, GST-BC, HBC-28

$

$

Not available
